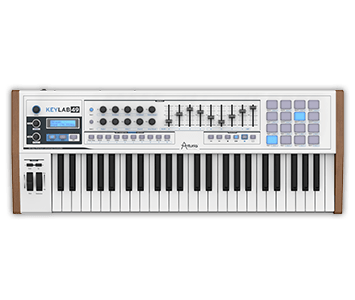

catalog image
Please find below some Analog Lab tips & tricks.

To create a Multi, here is how to proceed:

    • Select a preset
    • Click on the "+" next to the instrument representation. (or press Part 2 on your Keylab essential.)

al3 create multi

    • The swap mode will then be enabled.

al3 create multi swap mode

    • At this moment, click on another preset to add it to the second preset slot.

al3 create multi swap mode selected

    • Once you found a cool second preset, quit the swap mode and start editing the mix between the presets with the Edit button.

It is now possible to define a split point directly from an Arturia controller.

To do that, it's very simple:

  • Hold PART 1 + PART 2(Keylab Essential) or PAD 9 + 10(Minilab) or Snapshot 1 + 2(Keylab)
  • Press a key

It will set the split point at this position.

al3 split point



Mapping with Arturia MIDI Controllers:

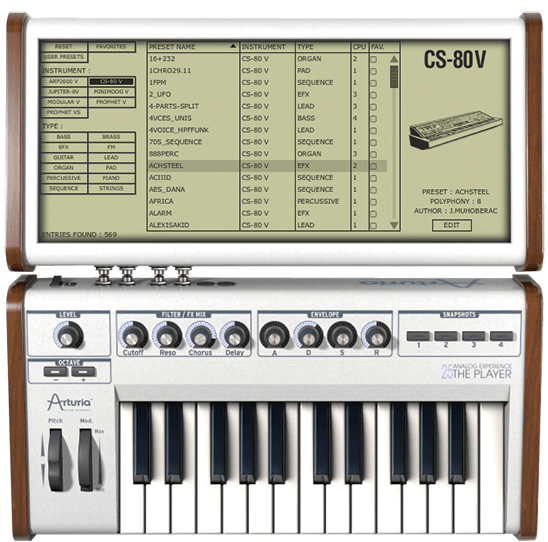

analog player image
Control

Function


Shift + Octave up

Next Preset


Shift + Octave down

Previous Preset


Shift + Turn Level knob

Browse Presets in a list


Shift + Press Level knob

Load the selected preset in a list
Snapshot 1


Select Part 1
(Active Swap Mode, Select Tab Part 1)

Snapshot 2


Select Part 2
(Active Swap Mode, Select Tab Part 2)

Snapshot 2


Select Live
(Exit Swap Mode, Select Tab Live)


Snapshot 1+ Snapshot 2 + Press Keys


Set the note as split point

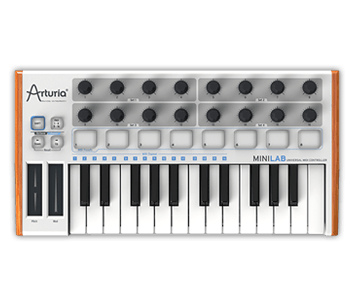

catalog image
Control

Function


Turn Preset Knob


Browse Presets in the list


Press Preset Knob


Load the selected Preset in the list


Turn Category Knob


Browse Filters


Press Category Knob


Toggle the selected Filter


Snapshot 1


Select Part 1
(Active Swap Mode, Select Tab Part 1)



Snapshot 2


Select Part 2
(Active Swap Mode, Select Tab Part 2)


Snapshot 2


Select Live
(Exit Swap Mode, Select Tab Live)


Snapshot 1+ Snapshot 2 + Press Keys


Set the note as split point



catalog image
Control

Function


Turn Knob 1


Change Volume


Turn Knob 2


Select Preset in the list, and load it after 1 second

Pad 9
Select Part 1
(Active Swap Mode, Select Tab Part 1)

Pad 10
Select Part 2
(Active Swap Mode, Select Tab Part 2)


Pad 11

Select Live
(Exit Swap Mode, Select Tab Live)

Pad 9 + Pad 10 + Press Keys


Set the note as split point


catalog image
Control

Function


Shift + Turn Knob 1

Change Volume

Knob 1

Navigate through filters and active/inactive on push

Knob 2

 Navigate through presets and load on push

Pad 9

Select Part 1
(Active Swap Mode, Select Tab Part 1)

Pad 10

Select Part 2
(Active Swap Mode, Select Tab Part 2)

Pad 11

Select Live
(Exit Swap Mode, Select Tab Live)

Pad 9 + Pad 10 + Press Keys

Set the note as split point

catalog image
Control

Function


Map Select + Pad Analog Lab


Enter in Analog Lab control mode

Press Cat/Char
Enable navigation into the browser filters

Press Preset
Enable navigation into the presets result list


Turn Central Knob


Navigate through filters/result list


Press Central Knob on Result List


Load the selected preset in a list


Press Central Knob on Filter


Active/Unactive Filters


Part 1


Select Part 1
(Active Swap Mode, Select Tab Part 1)


Part 2


Select Part 2
(Active Swap Mode, Select Tab Part 2)



If you have any further questions, feel free to contact us.
