Do you have questions about CZ-V?
You will likely find an answer here:

filtermodes

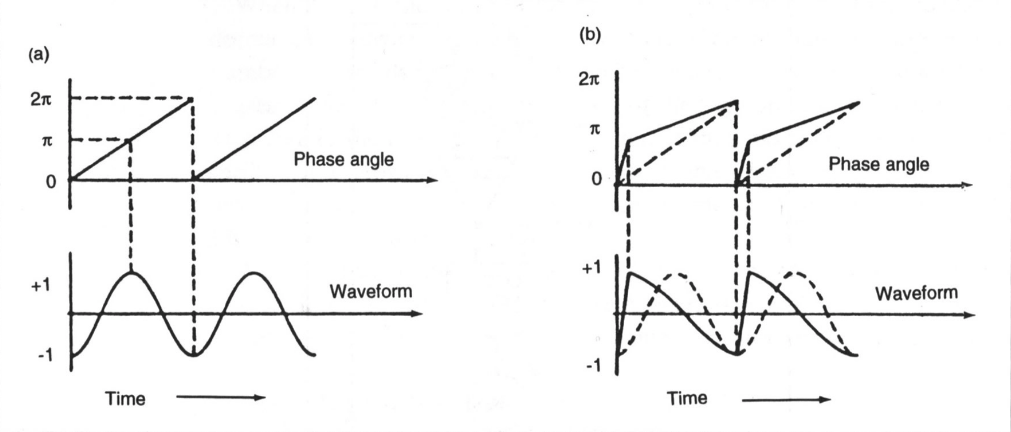

Phase distortion synthesis was developed by Casio during the 1980's.

Phase distortion synthesis outputs sound through the Carrier oscillator, by scanning a sine wave period on a table.
While this is happening, a second oscillator called the Modulator will modulate the carrier. The modulator is a compound of two periods, with each period having its own waveform.

When applying some DCW (Digitally controlled Waveshaping), the Modulator will dynamically change the rate at which the Carrier table is scanned to distort the phase of the carrier.

filtermodes

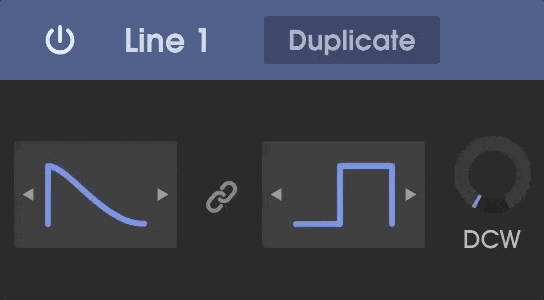

The two modulator periods and the amount of DCW applied

filtermodes

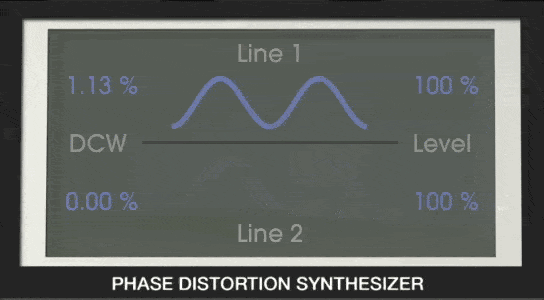

The result of the DCW applied on the carrier.

To summarise, when the wave table is scanned at a constant rate (No DCW applied), the output is a simple sine wave, without overtones.
When the scan rate is not constant (DCW applied), the phase gets distorted, creating new wave shapes.

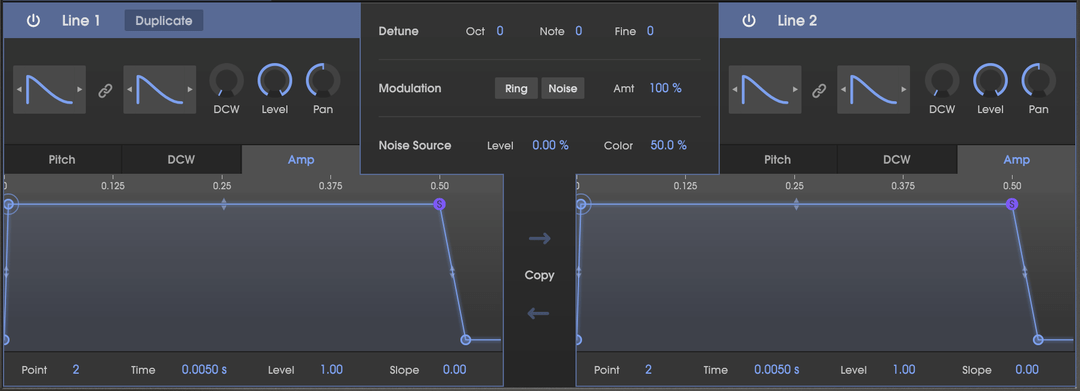

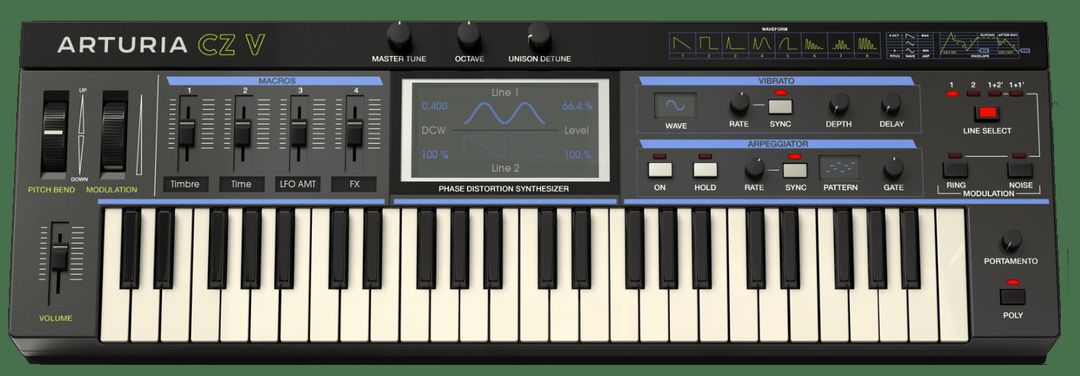

The CS V sound generator is split in two parts, Line 1 and Line 2.
Each Line represents an independent voice with its dedicated pitch, amplitude and DCW envelope. The LINE SELECT button lets you choose between four different play modes.

filtermodes

Line 1

In this mode the Line 1 plays alone.

Line 2

In this mode the Line 2 plays alone.

Line 1+2’

Both Lines can play simultaneously.
The Line 2 can modulate the Line 1, and can be detuned from the frequency of Line 1 using the Detune settings.

Line 1+1’

Creates a duplicate of Line 1 that can modulate the Line 1 and can be detuned, while sharing the same waveform and envelopes.

In the upper left hand corner of the envelope display window is a small gray pulldown menu that lets you select from three different envelope modes:

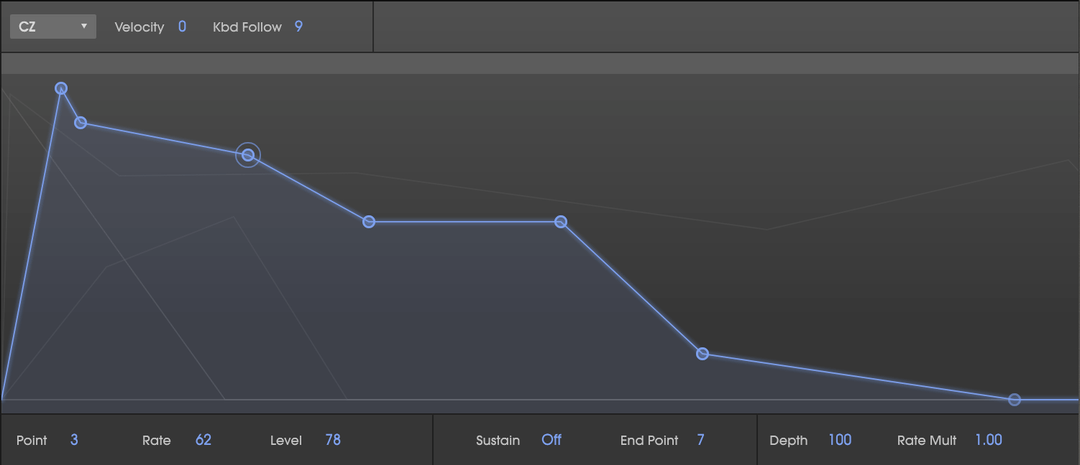

CZ Envelope

comb_feedback
CZ is the envelope used in the original Casio CZ series.
It offers up to 8 points.

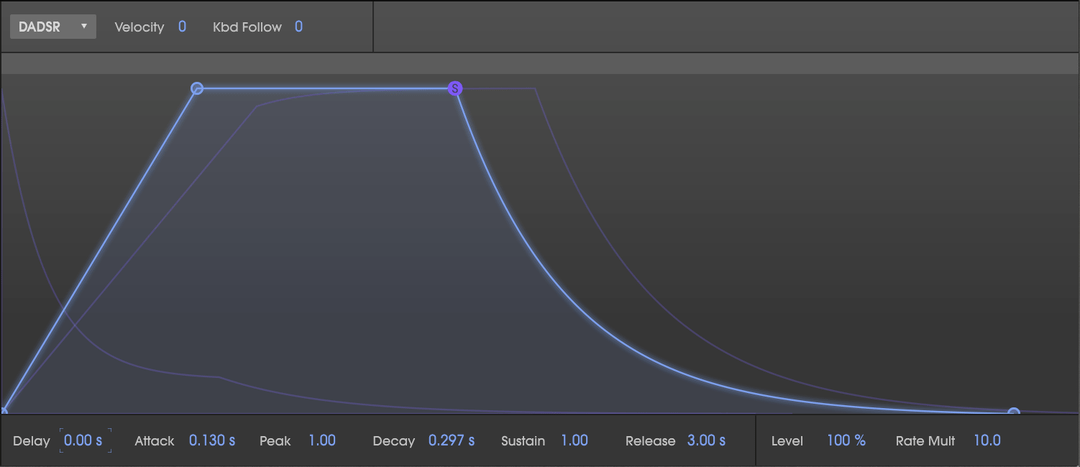

DADSR Envelope

filter_2
DADSR reproduces a standard Delay, Attack, Decay, Sustain and Release envelope.

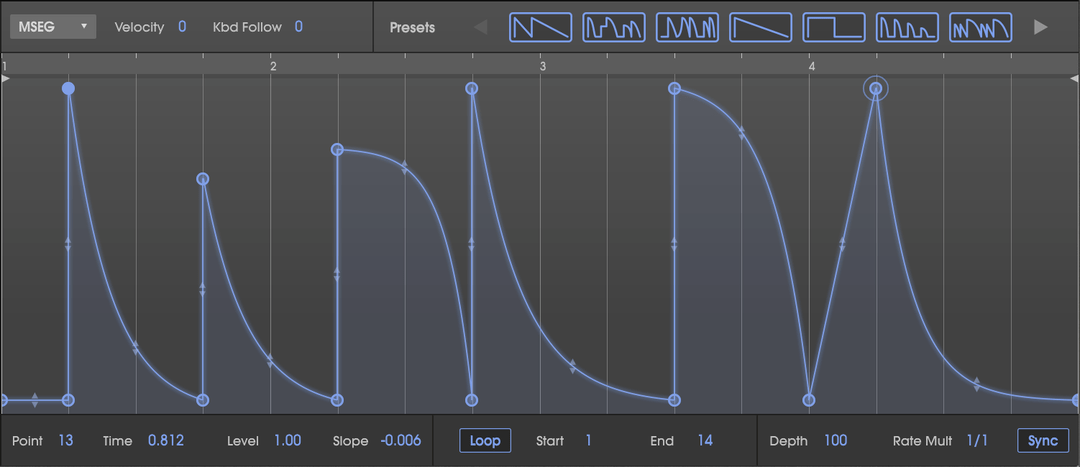

MSEG Envelope

filter_2
MSEG is Arturia’s multiple-segment envelope with up to 16 points, adjustable slope curves, and sync capability.
The "combinate" lets you merge two modulation sources using different mathematical operations. (Sum, Difference, Multiply, Divide, Crossfade)
This lets you create brand new modulation sources from your existing modulations.

The below example shows two LFO being combinated with a multiplication

LFO 1

comb_feedback

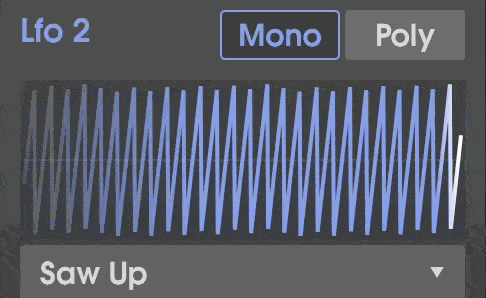

LFO 2

comb_feedback

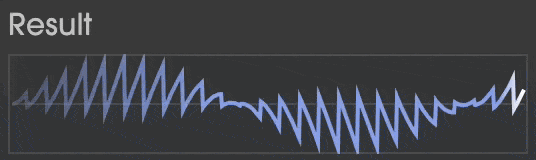

Result

comb_feedback
The CZ V lets you import Sysex from your own CZ to bring back to live your old presets.
Sysex files can be imported from the following models: CZ-101, CZ-230S, CZ-1000, CZ-2000S, CZ-2600S, CZ-3000, CZ-5000 and CZ-1.
comb_feedback

If you have any further questions, feel free to contact us.
