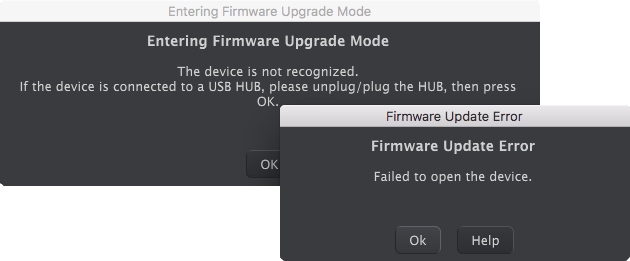

Firmware update errors, how to solve them ?


fail_to_open

In case you faced any of the above errors during a firmware update, please follow the instructions below to start over from a clean basis.
/!\ Make sure you are not using any USB HUB during the firmware update procedure /!\


1. Disconnect all your USB/MIDI devices from your Mac.

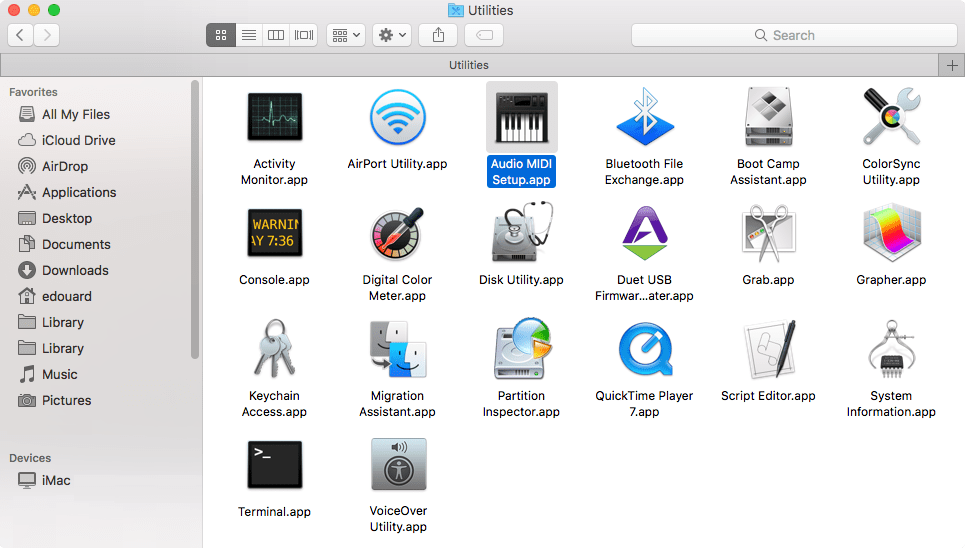

2. Go to Applications > Utilities > Audio MIDI setup

fail_to_open

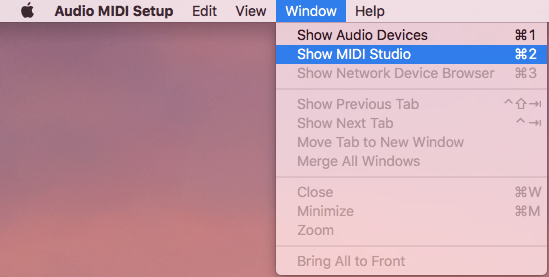

3. Click on Window > Show Midi Studio

fail_to_open

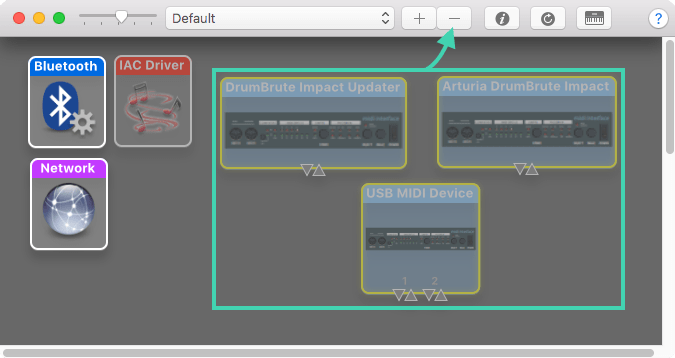

3. Create a New Configuration.

fail_to_open

4. Manually start your device in bootloader mode:

  • Keystep / Keylab MKI & MKII /Beatstep & Pro / Minibrute 2 & 2S/ Drumbrute & Drumbrute Impact:
    Hold Play/Stop/Record buttons while powering ON the unit.

  • Microbrute & Minibrute:
    Hold both Octave buttons while powering ON the unit.

  • Minilab MKII:
    Hold "SHIFT" + "Pad 1-8/9-16" buttons while powering ON the unit.

  • MicroLab:
    Hold "SHIFT" + "HOLD" buttons while powering ON the unit.

5. Open the Midi Control Center and click on the Firmware Revision button to start the firmware update.

fail_to_open


Warning:

Make sure not to use any USB HUB to update the device's firmware

When prompted to turn the device OFF/ON:
Turn it off > Unplug the USB cable from your Mac > Plug it back > Power ON the device > And start over the update procedure

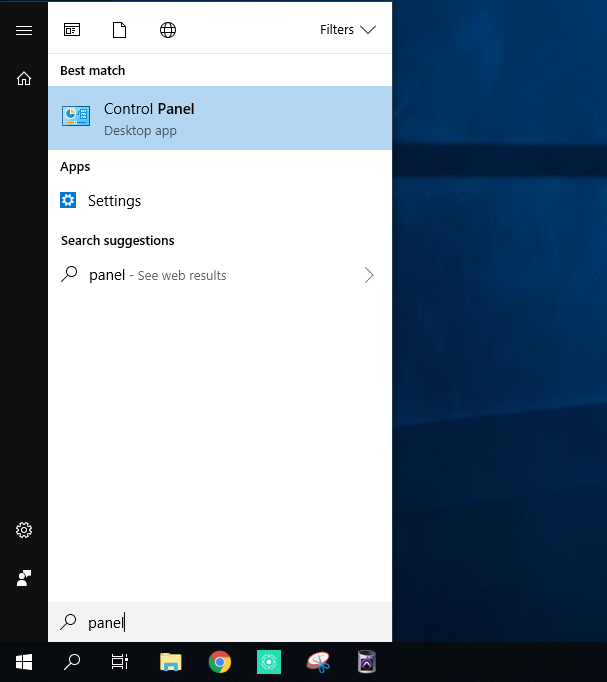

1. Press the Windows key and search for Control Panel

fail_to_open

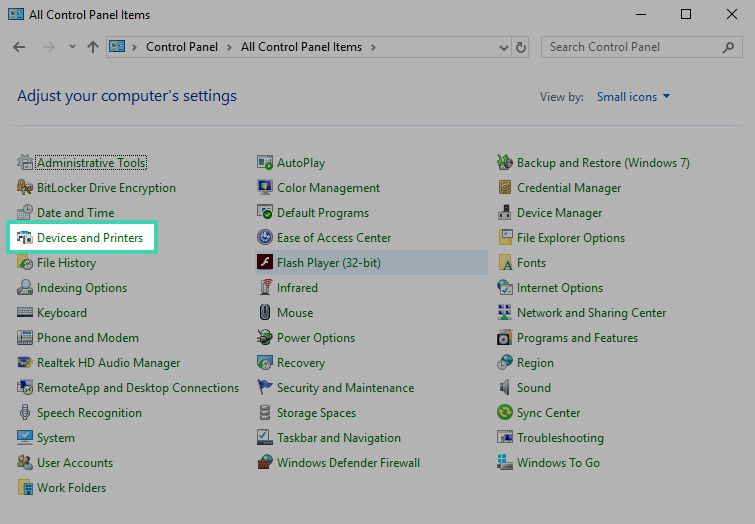

2. In the Control Panel, go to the Devices and Printers section.

fail_to_open

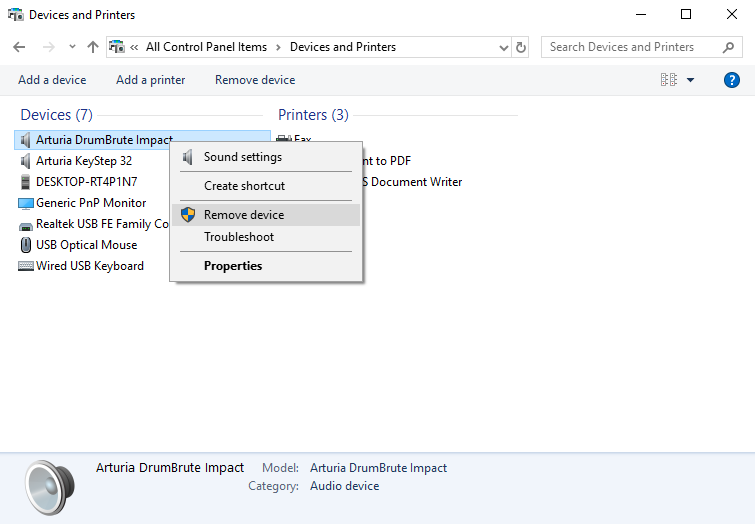

3. Select the devices as below, and delete them by clicking on the minus symbol.

fail_to_open
If you see some devices called "Updater" or "USB MIDI Device" you need to delete them too.

4. Close any application that may use MIDI, open the Midi Control Center, reconnect your device, and try to update your device's firmware again.


Warning:

Make sure not to use any USB HUB to update the device's firmware



If you have any further questions, feel free to contact us.
