Pigments - Quick tour


buchla easel v image
The result of 20 years of analog emulation and musical instrument crafting expertise.
Pigments is a crossbreed of true analog emulation TAE© mixed with complex digital engines, featuring practically infinite modulation and sequencing possibilities.
Let's have a closer look at its features.

Audio Generation and Shaping
Please check below what composes Pigments audio path.

Pigments is equipped with two sound generators called “engines”.
Each engine can either be a Complex Wavetable oscillator, or a virtual analog TAE© triple oscillator based on some of the world’s most famous analog synth design.
You can adjust the mix of each engine output to Filter 1 or Filter 2 with the Filter Mix knob

Wavetable


trida pre stereo zoom
Wavetable panel
trida pre stereo zoom

From this panel, you can select between a wide variety of carefully curated wavetables.
Each wavetable are split between 2 to 256 slices, which can be played back individually or in a morphed fashion.
The playback position is controlled by the Position potentiometer.

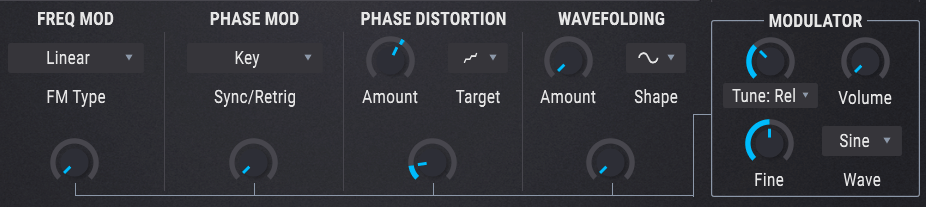

Waveform Modulations

trida pre stereo zoom

The Wavetable modulation panel lets you explore creative waveshaping possibilities thanks to advanced modulation, including: Frequency Modulation (FM), Phase Modulation, Phase Distortion and Wavefolding.

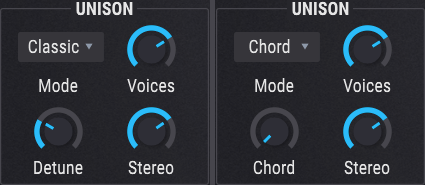

Unisson & Chord mode

trida pre stereo zoom

The unison parameter lets you duplicate and detune the oscillator signal to create a chorus and a wide stereo effect.
Classic mode: Duplicates the signal to up to 8 voices.
Chord mode: Duplicates and tunes the signal to create chords.
(Octave, 5th, minor, m7, m9, Major, 7, M7, M9, 6/9, sus2, sus4.)

Analog


v76 mid side zoom
Analog Oscillator 1 and 2 trida pre stereo zoom

This panel lets you adjust oscillator 1 and 2 parameters such as their waveform, width, volume, tuning or hard sync.
This part of the engine also features a noise generator with different filtering possibilities, letting you blend through White, Blue and Red noise.

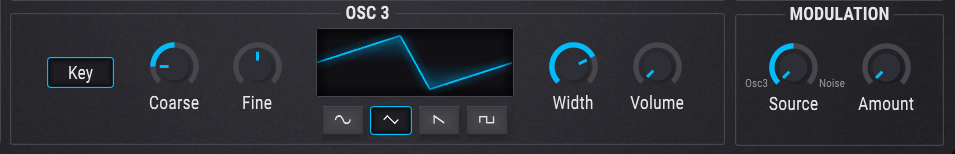

Oscillator 3 and Modulation

trida pre stereo zoom

Similar to Osc1 and 2, Oscillator 3 can also be used as a modulation source to create FM.
In the Modulation panel, raising the Amount knob will modulate oscillator 1 and 2 frequency.
You can crossfade the modulation source between OSC3 and the Noise generator.

Analog Oscillators Drift

trida pre stereo zoom

The Drift parameter progressively randomizes the pitch by a small amount, which can make your synth sound more natural or fatten chords.

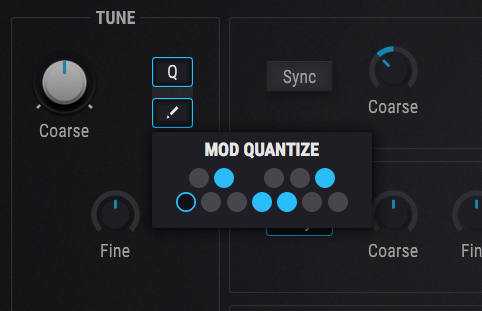

Tuning and Quantize

trida pre stereo zoom

Tune:
The Coarse knob lets you tune the engine chromatically (+/-60st), and the Fine knob lets you fine tune your pitch (+/-100cts).

Quantize:
Lets you restain the engine to a defined scaled when its coarse pitch is modulated.
This is very useful to create generative music.

After creating your sound with the synth engines, Pigments sends the audio signal to two slots which contain our best analog filters emulations, alongside brand new filters designs.

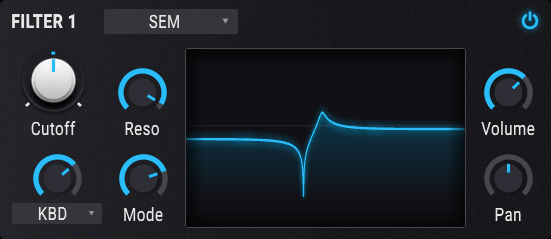

Filter 1


filter_1

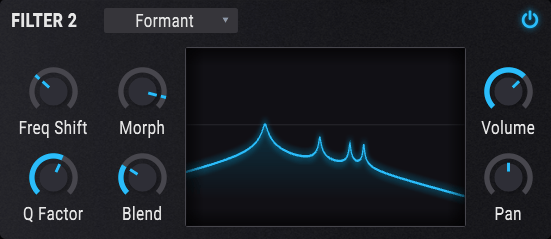

Filter 2


filter_2

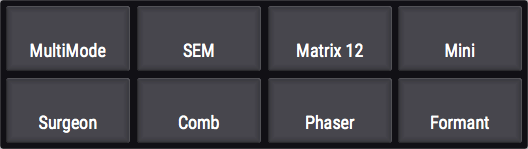

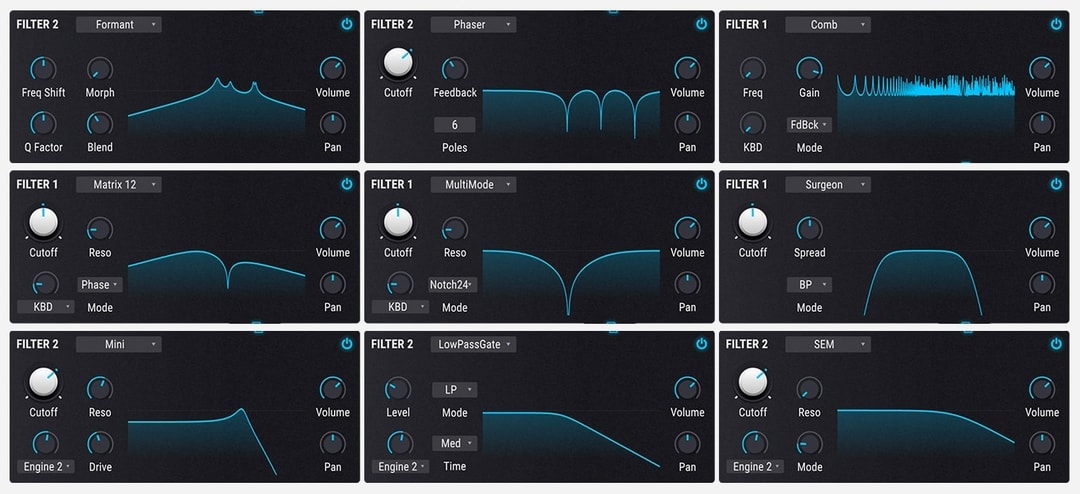

Filter Modes

filtermodes

MultiMode:
Pigments' signature filter.
Offering 12 modes, between -12 to -36 dB/Octave slopes.

SEM:
One of the most popular analog filters.
Available in all of its multi-mode glory.

Matrix 12:
Faithful reproduction of the Matrix 12 Filter.
The Oberheim flagship synthesizer.

Mini:
Undoubtedly the world's most famous filter.
The iconic 24 dB/octave Ladder filter.

Surgeon:
This is an extremely steep filter (64 dB/octave).
Featuring several interesting Modes.

Comb:
Filter adding a delayed version of the input signal to itself.

Phaser:
Processes the sound with an adjustable number harmonic peaks and notches.

Formant:
Mimics the human speech resonances.


Filters Rooting

These parameters let you adjust the rooting of the filters by clicking in the middle of the semi-circle and dragging the cursor up and down.
The filters can be placed in:

Serie:

filtermodes
In series, the output of Filter 1 is fed directly into the input of Filter 2.

Blend:

filtermodes
It's also possible to create a blend of both the series and parallel filter routings.

Parallel:

filtermodes
In parallel, each filter routes to the output separately.

Note 1: If Filters 1 and 2 are placed in series and panned to the opposite extremes (Filter 1 hard left, Filter 2 hard right, or vice versa), no audio signal will be heard from Filter 1.

Note 2: If Filters 1 and 2 are 100% in series and the Filter 2 volume is at zero, no audio signal will be heard at all, even if the filters are bypassed.

Before the signal passes to the effects busses, the last link of the audio chain is called the output.
It is composed of three elements.

Amp Mod

filtermodes
The Amp Mod parameter lets you select which parameters controls the amplitude of the output signal.
You can even modulate this amount with another modulation source.

Note: When the amount is set to 0, the sound will always play at its maximum level. When set to the maximum, the volume will be fully dependent of it's modulation parameter.

Voice Pan and Send Level

filtermodes
Voice Pan lets you set the default stereo position of the output.

Send Level controls how much signal will be sent to the Send Bus. (FX Return)


Note: Both parameters can be automated with modulation, letting you create very interesting effects.


Modulations
The modulation capabilities of Pigments truly set it apart from other software instruments.
Let’s take a look at them in more detail.

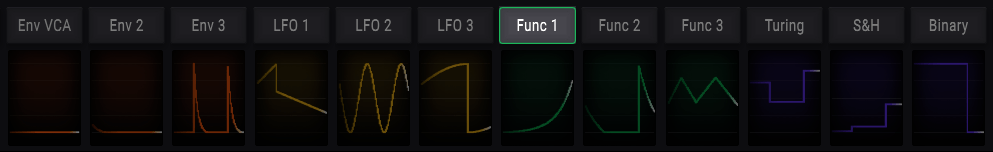

Overview Mode

trida pre stereo zoom
In overview, the modulation strip lets you visualise the active modulation sources.
In this mode:
  • Clicking on a modulation source name opens the Assign view.
  • Clicking on the visualisation opens the corresponding Modulation panel.
Once assigned to a destination, the modulation sources are highlighted, and their current value is represented in real time.

Assign and Edit Mode

Click the name of a modulation source to access this mode:
trida pre stereo zoom
After clicking on it, the modulation strip will let you see each mod routing assigned to the various modulation source, with further details such as the destinations, amounts and side chains.
trida pre stereo zoom

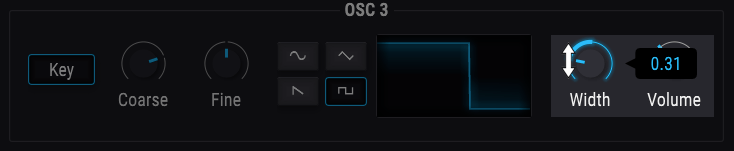

Once in this mode, click and drag up or down the ring surrouding a potentiometer will:
  • Assign the selected modulation source to this destination parameter.
  • Define an amount of modulation.
trida pre stereo zoom
The amount can then be modified directly from the control, or from the modulation strip.

Note: You can also side chain your modulations from the modulation strip, by selecting a side chain source and defining an amount of sidechain.


Modulation Sources View

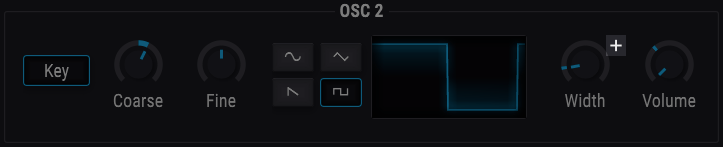

When hovering a control with your mouse, you will notice that a (+) appears.
trida pre stereo zoom
Click on this (+) to enable the Modulation Sources View.
trida pre stereo zoom
This view lets you see which, and how much the modulations are affecting the selected parameter, and lets you edit these modulation amounts.
As Pigments' modulation possibilities are practically unlimited, it would be impractical to show you every way they can be used to shape your sound. However, see below the available modulation sources:

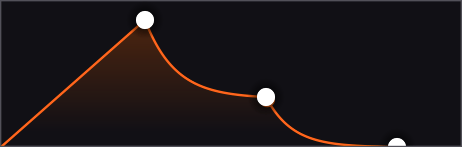

3 x Envelopes

filter_1

This section is made up of 3 customizable envelopes. Featuring deep controls on their time and curves, Env 1 is pre-assigned to the VCA and triggered by the keyboard, the two others can be triggered by any other source.

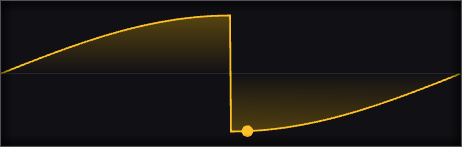

3 x LFOs

filter_2

The LFOs can be formed of pure sine waves, passing through twisted asymmetrical saws, up to random sharp or smoothed squares. Each LFO can be retriggered from any modulation source.


3 x Functions

filter_1

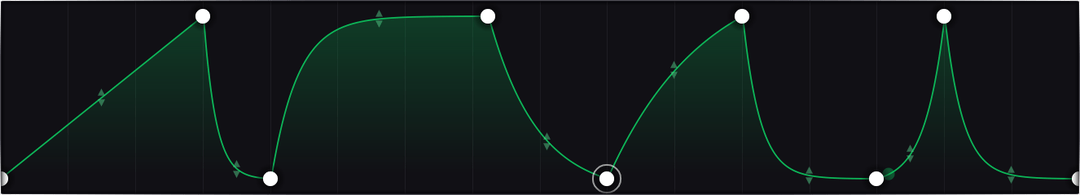

The triple function generator lets you draw and shape complex patterns of up to 64 points that can be triggered once or even looped. Furthermore, a bank of function presets is available, with the option to save your own sketches.
Need inspiration? Use the regen function to randomise the position of your points.


Turing

filtermodes

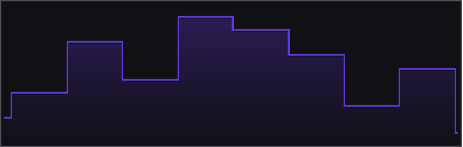

The Turing machine generates and loops randomness. Length controls the size of the loop. Flip controls the probability of value changes.

Sample & Hold

filtermodes

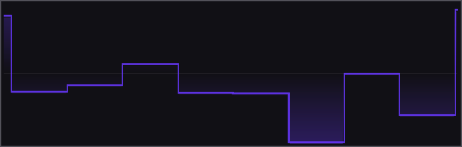

A enhanced standard. Instead of sampling noise, you can sample any source, pick any retrigger source, smooth the Rise or Fall and more.

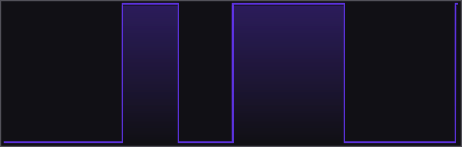

Binary

filtermodes
A binary generator that includes controls to adjust the predictability of the outcome. Such as the probability, correlation and rate control.

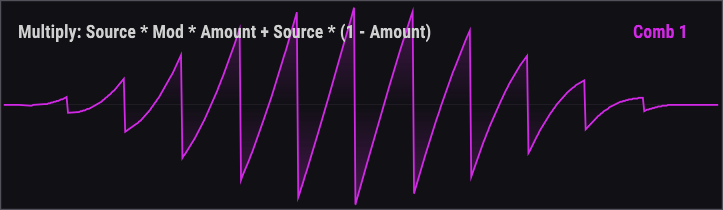

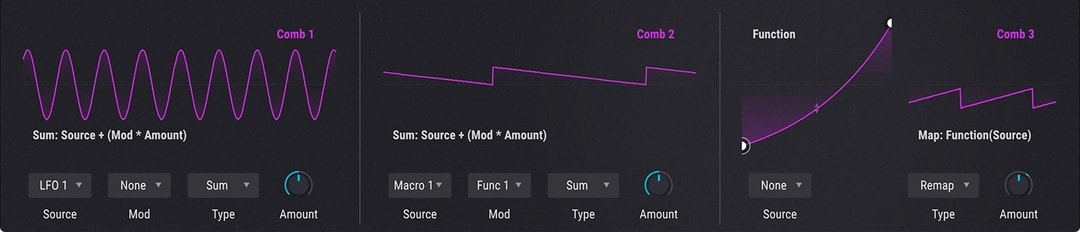

2 x Combinators

Combinate allows to merge two modulation sources.
Different mathematical operations are available, which can dramatically change the overall result.

filter_1

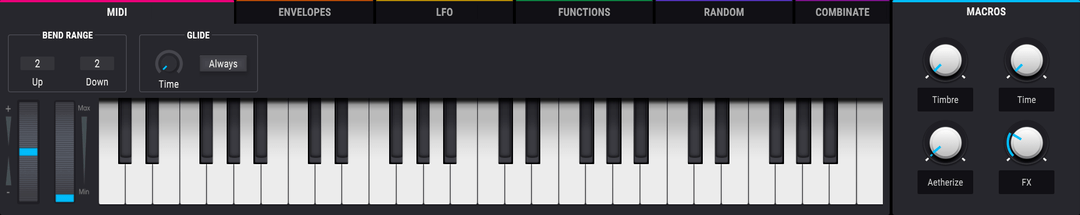

Keyboard

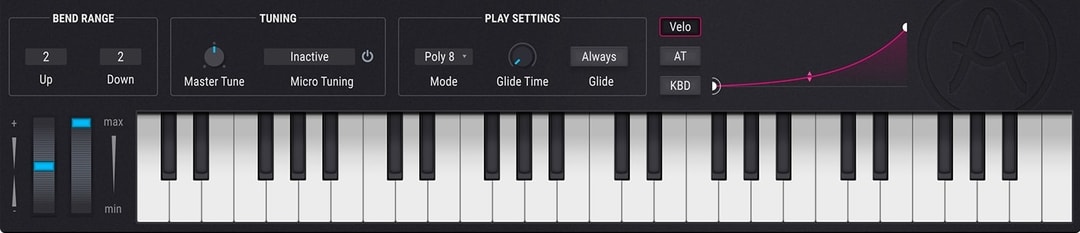

All the standard MIDI messages sent by keyboards can be used as modulation source, such as the notes, velocity, aftertouch, modwheel and expression pedal.

Macros

Macros are four unipolar knobs that can be assigned any number of modulation routings and even to an incoming MIDI message like a controller, acting like dozens of extra pairs of hands.

filter_2

Effect Processing
Refine your sound and reach the perfection with high quality effects.

Pigments is equipped with three effect busses to process your sound: FX Bus A, FX Bus B, and Send FX Bus.
Each effect bus has 3 effects slots on which you can insert any of the available modules.
To modify the order of your effect chain, you can move an effect from one slot to another with a simple drag & drop.

FX Busses A & B

filtermodes
The FX Busses 1 and 2 are the last part of the audio chain before the output.
These work exactly the same as inserts on a mixer bus.
filtermodes
These can either be rooted in series, reverse series or parallel, thanks to the Bus A/B Routing knob.

FX Send Bus

filtermodes
The FX send bus is not an insert on the output.
It works as an auxiliary send on a mixer.
filtermodes
The signal is duplicated and sent to the bus with the Send level. Once processed, it is reinjected at the very end of the audio chain.

Note:
If you lower the volume of the A and B Busses, no audio will be heard at all, except the signal sent to the FX send

Now we’ll cover the individual effects found in Pigments.

Multi Filter

filtermodes
Filter with multiple types and slopes.

Param EQ

filtermodes
5-band full parametric EQ with frequency, gain and Q.

Compressor

filtermodes
Essential dynamic-shaping and peak-taming processor.

Disto/Overdrive

filtermodes
Two flavours of saturation with a distortion and an overdrive.

Wavefolder

filtermodes
Folds the peaks of input waveforms to create richer harmonics.

BitCrusher

filtermodes
Bit depth reduction with a range of 16-bit to 1.50 bits, with wide sample rate reduction options.

Chorus

filtermodes
Classic, sweet pitch effect, capable of serious wobble.

Flanger

filtermodes
Metallic pitch effect with many tonal adjustments and sync options.

Phaser

filtermodes
The classic sweeping swirl underwater effect.

Stereo Pan

filtermodes
Moves the sound left/right with definable depth, rate, and sync options.

Delay

filtermodes
Repeat the input signal with adjustable time, tone, stereo width, ping-pong, and sync options.

Reverb

filtermodes
Provides spaciousness ranging from small room to large hall.


Sequencer & Arpeggiator
Add life to your melodies with a fluid workflow, syncopated rhythms and subtle random generation capabilities.

The sequencer and arpeggiator are sharing different tracks dedicated to several functions.
The only track that is not used by the Arpeggiator is the pitch.

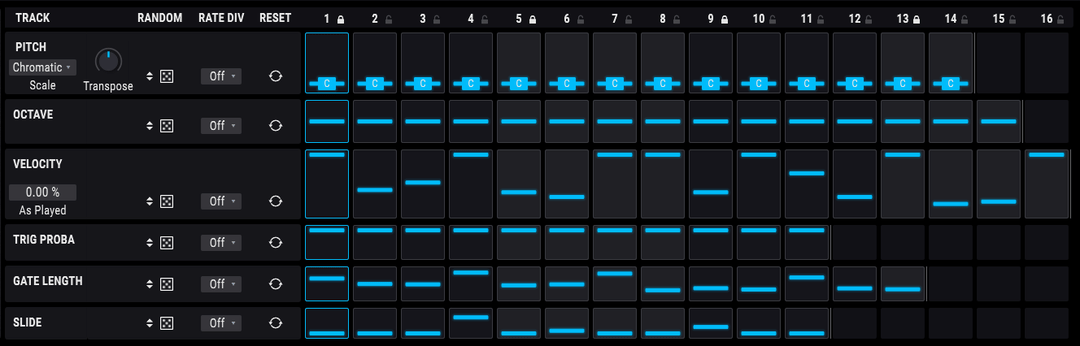

6 x Tracks

filtermodes

Pitch
Tune each step, and even use scales in conjunction with randomness.

Octave
Each step of the Octave track can be set to a value within the range of +/- 2 octaves.

Velocity
Set a velocity value for each step. When "As played" is set to 0, the input MIDI notes velocity will be ignored at the expense of the sequencer notes.

Trig Probability:
Determines if a given step will be played or not.
0% = Never / 100% = Always.

Gate Length
Adjust how long the step is played.
From 5% to 400%.

Slide
Controls the speed at which the pitch value of the current step will transition from the pitch value of the preceding step.

Never get bored of your sequences! Pigments lets you add some randomness and rhythmic syncopation to your sequences and arpeggios.

Randomize

filter_1

You can set how much the randomisation will affect the step values with the dice percentage on each track. Then randomize your step values with the Regen button or the auto regen.

Polyrythm

filter_2

Create syncopated rhythms by defining a different length to each track.


If you have any further questions, feel free to contact us.
