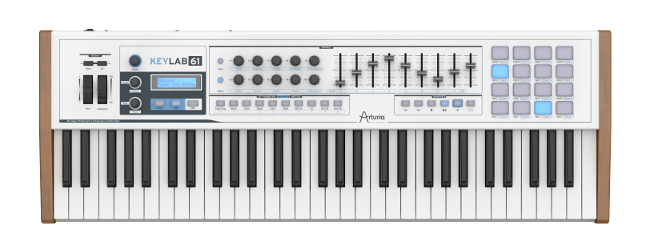

KeyLab under the hood

Our 61-key keyboard controller is made for maximum expression and performance, with velocity and aftertouch in addition to high-quality knobs, faders, assignable switches and 16 of the best-feeling pads around.

This premium controller is a perfect match for the included Analog Lab software; the preassigned controls make an ideal hybrid solution for plug-and-play sound creation. Simply connect KeyLab 61 to Analog Lab and you can put your mouse away, enjoying the same workflow as with a traditional hardware synthesizer.

With KeyLab 61 you have unparalleled access to 5000 sounds modeled after the most classic synthesizers and keyboards of all time. The innovative Multi mode provides layer/split functions, so you can layer these sounds and play them at the same time while adding professional-grade effects.

And as with the entire KeyLab series, the keyboard and controls can be easily used with any other music software.

Professional grade USB MIDI Controller

KeyLab 61 is our new professional-grade 61-key USB MIDI Controller. It’s entirely preassigned to work with the Analog Lab software, so it’s ready out of the box to give you immediate and in-depth control over your sound. But KeyLab 61 is also a Universal MIDI controller, so it’s compatible with any third party-software and hardware. Remapping the controls is simple with the included MIDI Control Center software.

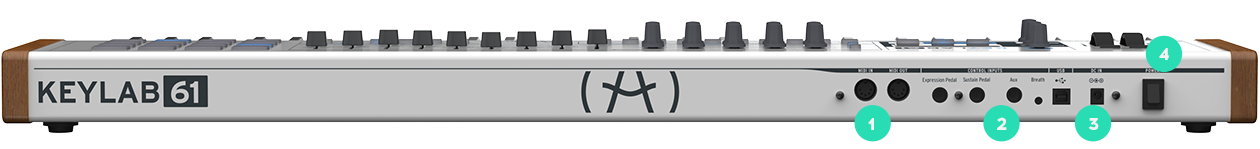

1. MIDI In/Out

Connect your favorite MIDI hardware via the MIDI In and Out ports

2. Control inputs

Input connectors for adding expression pedals, a sustain pedal and a breath controller

3. USB 2.0

USB MIDI class-compliant operation for direct connect to your computer or iOS device (camera connection kit required)

4. Optional DC power

Optional DC power input allows use as a standalone controller

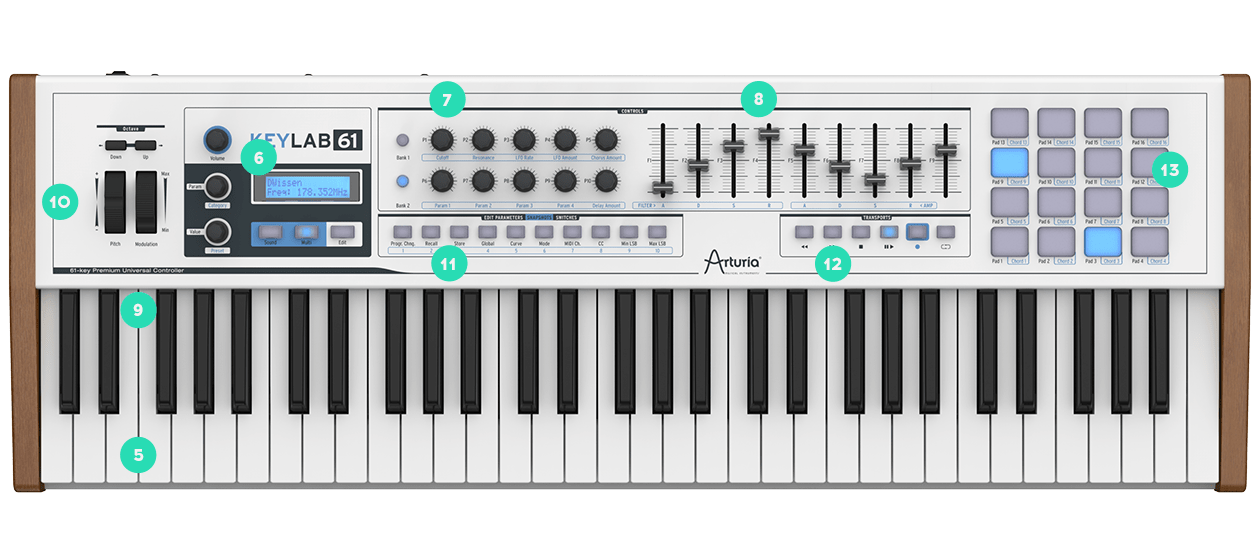

5. Pitch and Mod Wheels

Ergonomically-designed pitch bend and modulation wheels

6. LCD screen for easy editing

LCD display allows for easy editing and instant feedback of parameters and presets in Analog Lab

7. Two banks of 10 encoders

Two banks of 10 assignable encoders for use with your favorite plug-in or DAW

8. Two banks of 9 faders

Two banks of 9 faders gives you plenty of options for control. Inverse drawbar mode for use with organ plug-ins

9. Octave Transpose buttons

Octave transpose buttons allow you to shift the keyboard range up or down

10. Direct controls for Analog Lab

Tight integration with our Analog Lab software gives you the feel of a hardware synth but with the power of software.

11. Assignable buttons

10 assignable buttons for instant recall of your favorite Analog Lab sounds and quick control of your favorite DAW

12.Transport Controls

The transport controls can send MIDI Machine Control messages for hands-on access to your DAW.

13.Backlit velocity- and pressure-sensitive pads

16 backlit, ultra-responsive velocity- and pressure-sensitive pads

MIDI Control Center

Our MIDI Control Center software allows you to edit the controller parameters quickly and easily. With an intuitive graphical interface and a 1:1 screen image of your hardware, you can tailor the controls of your KeyLab controller to match the settings of your favorite plug-ins and DAWs.

Analog Lab: your creative hub

Imagine having every sound from this incredible collection of retro marvels in one place, easily accessible, and - above all - fun to play.

The latest incarnation of Analog Lab gives you instant access to the 6,000+ preset sounds contained within all of the V Collection instruments, and lets you browse, navigate, and audition every one with ease. You’ll never be stuck for inspiration again.

Combining superb controller keyboard integration, lightning-fast sound browsing, powerful combo sounds, and quick access to every sound’s most important parameters, Analog Lab will become your go-to keyboard plug-in.

In addition you can edit each sound in-depth from within Analog Lab should you own the original software instrument. Let’s say you want to tweak a very specific parameter of Prophet 5 sound, well, it’s possible to open the interface inside Analog Lab.

The latest version of Analog Lab also gives you access to the Sound Store, Arturia’s ever-growing collection of soundbanks, including sounds created by big-name artists, top sound designers, and even tributes to your favorite legendary key & synth players.

Analog Lab is your one stop shop for ultimate keyboard creativity.

Find and recall your favorite sounds instantly

With Analog Lab’s sleek new browser, you can always find just the right sound. Simply click tags to filter your extensive sound library by Types, Characteristics, Instruments and more. Need a fat, funky bass? Just click that combination of tags to get a short list from the across the entire library—or limited to just the virtual instruments you select. Click to designate your favorites for instant recall later. Use Playlists to line up just the sounds you need for gigs or sessions, then access or step through them with MIDI program change mapped to your preferred buttons or pedal.

Split, layer and add effects

The Multi feature lets you simply drag and drop to combine any two of your favorite presets into splits and layers, with complete control over how each performs. You also get a complete array of 17 classic effects that take these already incredible sounds beyond the call of duty—everything from standards like chorus, delay, reverb and overdrive to exotics like bit crunching and vocal filters. You can even add different amounts of discrete effects to the two instruments in your Multi patches to add a whole new dimension to your sound. Of course, all your Multi and effects settings are saved right with your patches for instant recall.

Already set up for your favorite hardware

Analog Lab presets surface the most common controls you might want to get your hands on to tweak your sound or control live—like the drawbars on a B-3 V or the filter controls of a Matrix-12 V. They’re even mapped automatically to the most logical controls on your KeyLab 61 keyboards. With Multi patches, you even get macro control so that a single controller can affect parameters on two different patches at once. The MIDI Learn feature makes it as simple as click-and-touch to assign any hardware controller to any surfaced parameter in an Analog Lab patch for total expression.

Take your favorite sound further

Once you find that perfect sound in Analog Lab, you might want to start exploring more parameters and diving a little deeper into what makes that sound so special. One of the most amazing features of Analog Lab is that, as a V Collection owner, you can choose to open up an Analog Lab preset in its native virtual instrument. Whether it's Modular V, Clavinet V, DX7 V, Solina V, or any of the other amazing emulations inside V Collection 6, you'll have instant access to the deepest control parameters. Analog Lab 3 is truly the ultimate creativity launchpad.

TAE® powered sounds

Arturia synhtesizer models are based on our proprietary True Analog Emulation® Technology. The Mini V, Modular V, CS-80 V, ARP 2600 V, Jup-8 V, Prophet V, Prophet VS, SEM V, Matrix-12 V, Solina V, B-3 V, Vox Continental V, Farfisa V . These TAE® powered sounds offer unparalleled audio quality.


Layer 01

Glen Darcey

Layer 02

Glen Darcey

Pad 01

Sébastien Rochard

Pad 02

Sébastien Rochard

Electro Multi

Sébastien Rochard


Sébastien Rochard


Glen Darcey

Layer 03

Glen Darcey

Platform specifications

  • Windows: Win 7+ PC: 4 GB RAM; 2 GHz CPU.
    2GB free hard disk space
  • Apple: 10.8+: 4 GB RAM; 2 GHz CPU.
    2GB free hard disk space

Required configuration

Works in Standalone, VST 2.4 (32-bit and 64-bit), VST 3 (32-bit and 64-bit), AAX (32 bits with PT 10.3.8, 64 bits with PT 11), Audio Unit (32-bit and 64-bit).

VST 2.4


Software authorization is handled by the Arturia Software Center. You can learn more about it here.

Main Features

  • Includes Analog Lab with 6000 synth sounds.
  • All presets are carefully selected from the Arturia V Collection
  • Fast preset sorting to find your sound quickly: by Instrument, by Type (Bass, Pads, Leads…), by Characteristics (long, bright, dark …), etc.
  • In-depth Preset editing available for the owners of the full versions of our synthesizers (mini V, CS-80 V, etc.). Edit your sounds on the original instruments within Analog Lab.
  • Straightforward editing, with a complete array of parameters for tweaking sounds, directly assigned to the controls of the KeyLab 61.
  • Keyboard: 61 semi-weighted keys with velocity and aftertouch.
  • Controls: 2 clickable encoders, 6 transport switches, 1 modulation wheel, 1 pitch bend wheel, two banks of 10 encoders, 9 sliders, 1 volume encoder, 10 assignable switches and 16 backlit pads with velocity- and pressure-sensitivity.
  • Connectors: MIDI in & out, USB, sustain pedal, expression pedal, Aux footswitch, and breath controller.
  • High-quality aluminum and wood construction.
  • 32-digit LCD screen.
  • Use with Analog Lab or with any other MIDI software.
  • Product dimensions: 34.57 x 11.73 x 2.76 inches (878x298x70 mm) - Net weight: 16.1 lbs. (7.3 Kg)
