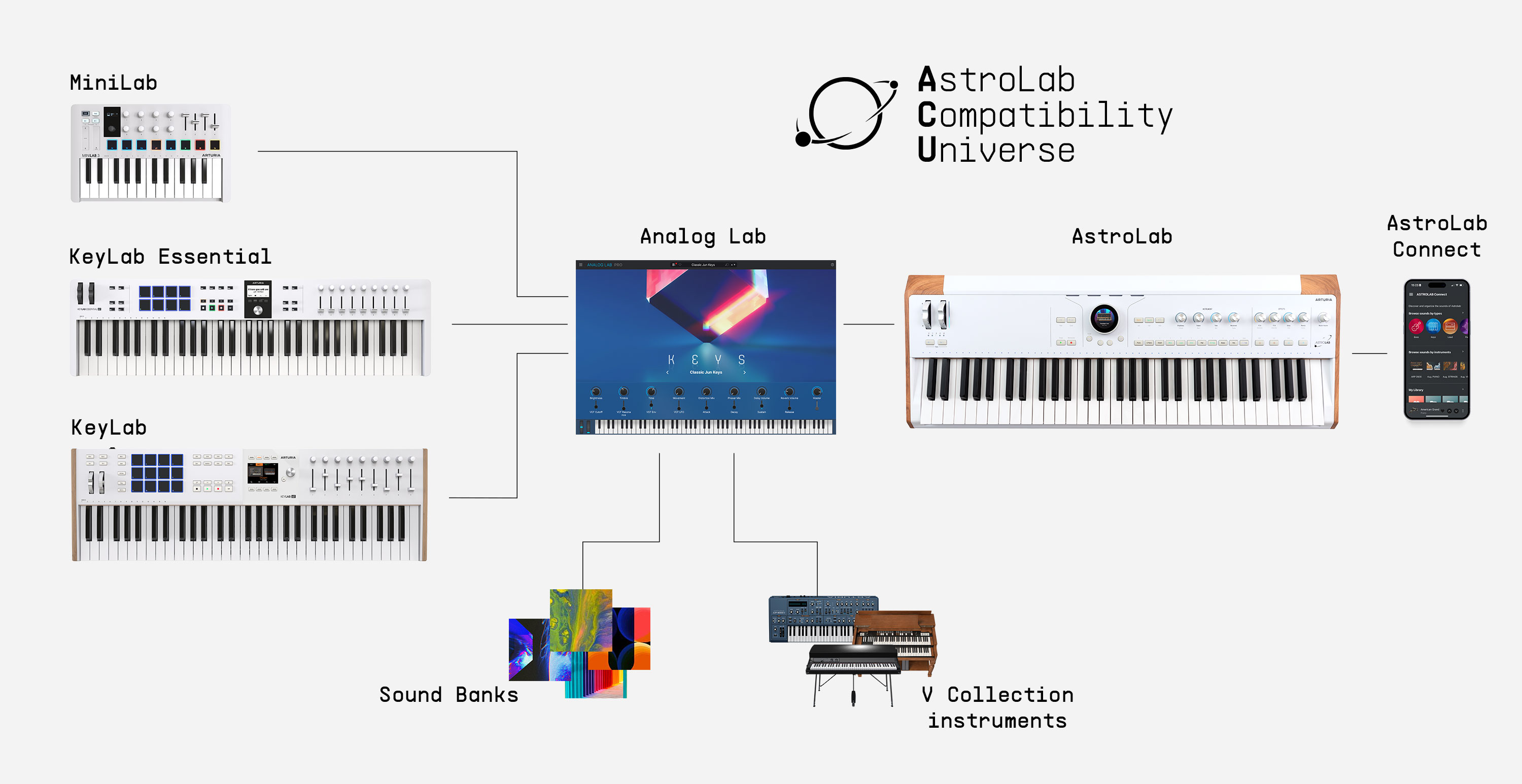

Innovative
ecosystem
AstroLab's ecosystem extends your creative reach, providing tools for sound management, edition and exploration. Control and expand your sound library and integrate seamlessly with your DAW.
Connect
and explore
AstroLab Connect is a companion mobile app that brings the convenience of the modern age to your workflow.
Control sounds and settings remotely, manage your playlists and find new inspiration in the Sound Store - all without a computer.
- Browse presets
- Build playlists
- Get more sounds from the Sound Store

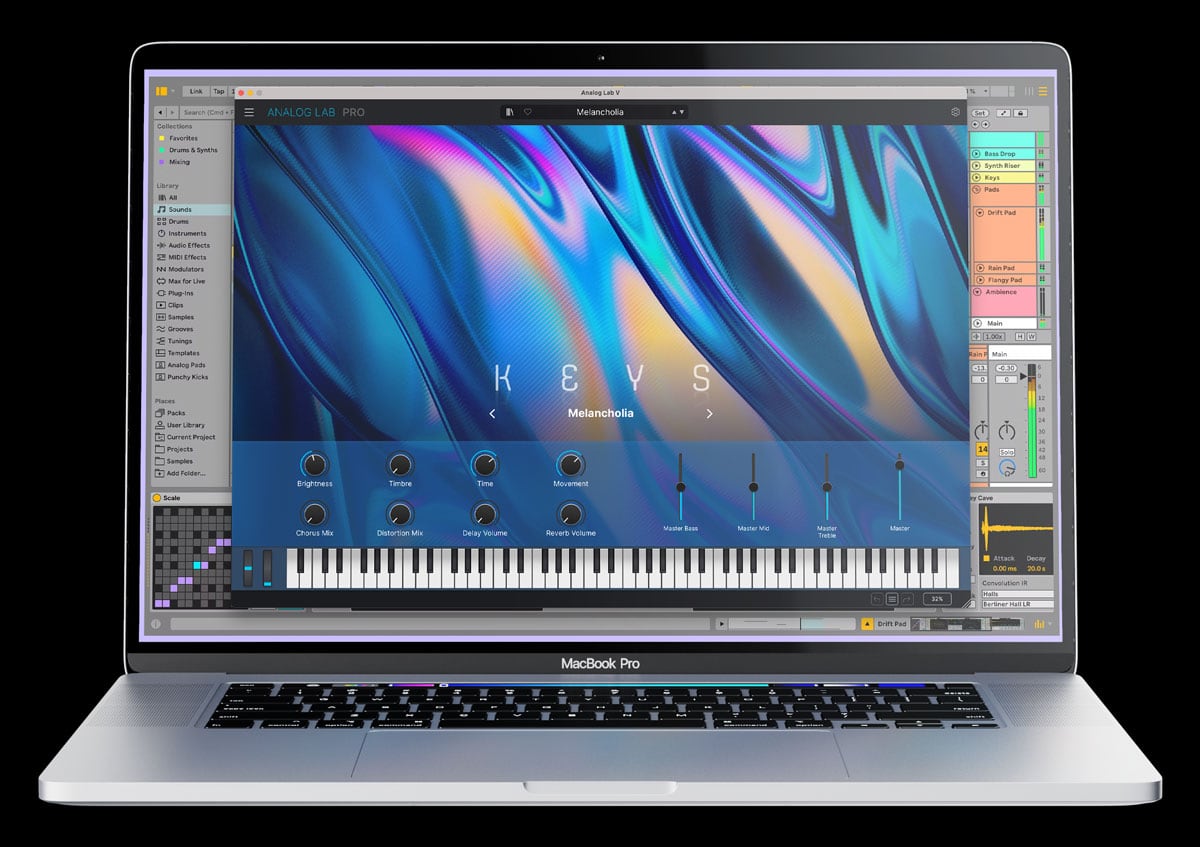

Integrate
with your DAW
Analog Lab Pro is your link between production and performance.
Sync your sounds, tweak presets, edit effects, manage playlists, expand your library and benefit from low latency production with seamless multi-track recording.
You can also use AstroLab as a premium MIDI keyboard for any instrument.
- Studio view and sound management
- 2000+ sounds to choose from
- Edit effects and assign custom macros
- Create and manage playlists
- Record tracks in your DAW with low latency
- Try sounds before you buy them

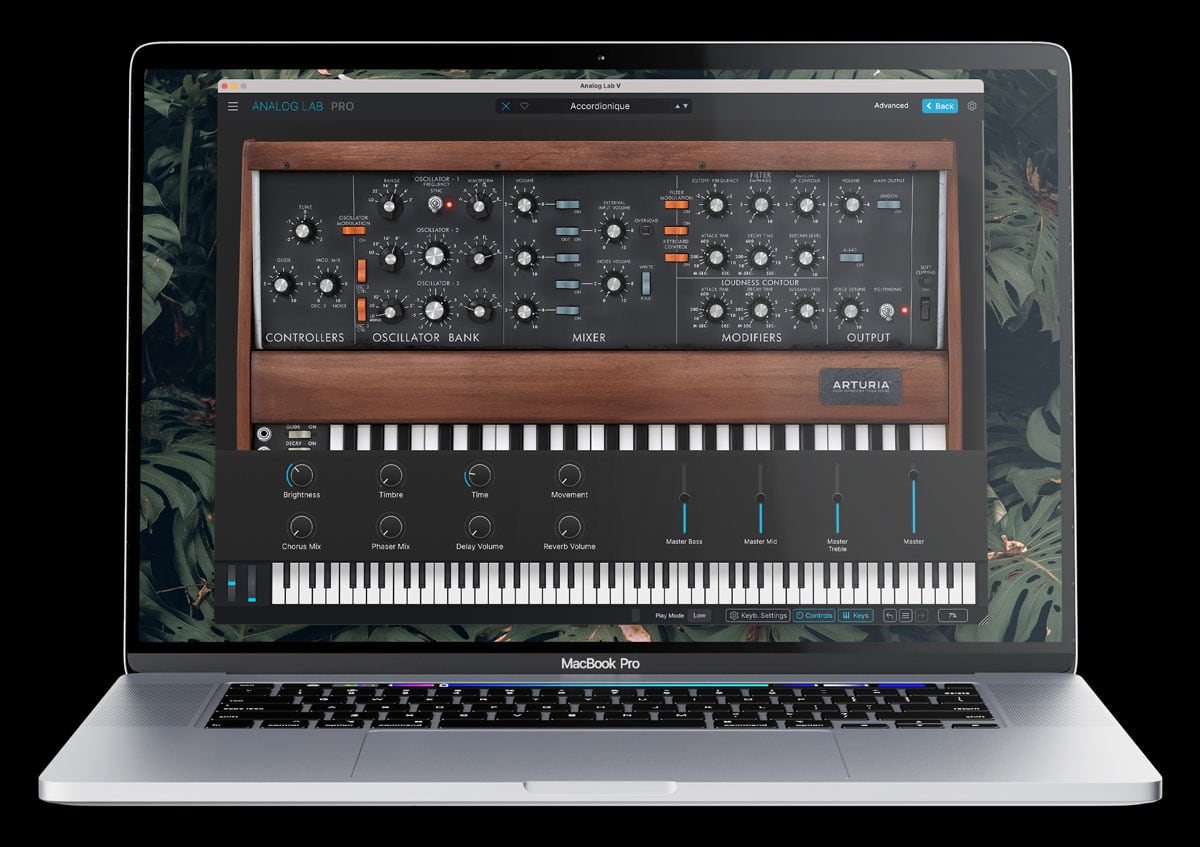

Full
instrument control
Unlock the sonic potential of AstroLab with Pigments and V Collection, Arturia’s reference suite of software instruments.
Access the full interactive view of each instrument in Analog Lab, create custom patches, edit sounds in-depth and add them to AstroLab.
- The ultimate suite of instruments
- 10000+ additional sounds
- Full customisation
- Assign macros to any parameter to create your own performance controls
- Import your own samples to create entirely unique sounds

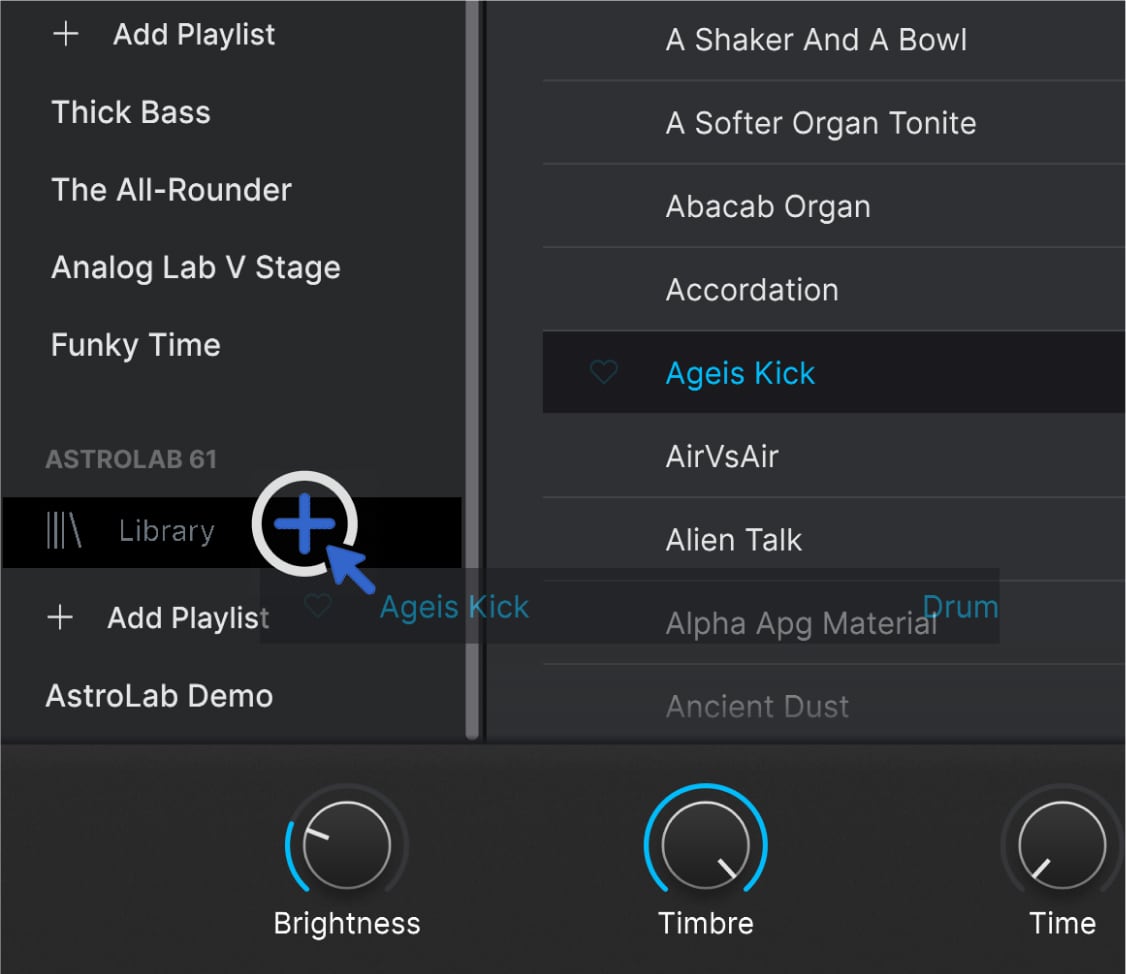

Drag & drop
sounds
Take your favorite sounds beyond the confines of your DAW by adding them to AstroLab’s library
Save a patch from Analog Lab or a V Collection synth, assign custom FX, drag-it into the AstroLab library via Analog Lab and perform without compromise.
Seamless
multi-track composition
Make the most of AstroLab’s low-latency sound processing and control multiple instances of Analog Lab in your DAW for a fluid composition workflow.
For maximum flexibility and efficiency, both Analog Lab and AstroLab process the sound - so it can be recorded either as Audio or MIDI.
Main Features
61-note semi-weighted keyboard with piano-size keys and aftertouch
11 sound engines
Virtual Analog
Samples
Wavetable
FM
Granular
Physical modelling
Vector Synthesis
Harmonic
Phase distortion
Vocoder
Karplus Synthesis
Over 1600 in-built sounds
More than 10.000 sounds via Arturia software
Navigation wheel & screen for easy browsing
10 Preset Buttons for quick sound access
4 macro controls for quick editing
Brightness
Timbre
Time
Movement
12 insert FX
4 dedicated knobs to control FX including dedicated Delay/Reverb
Multis/Keyboard Split
MIDI IN i/o, balanced stereo input, sustain, expression, aux 1 & 2 pedals
USB-C connection and USB-A host
Bluetooth audio input and WiFi for wireless control
Arpeggiator, MIDI Looper, Chord & Scale modes
Platform Specifications
Windows
Win 10+ (64bit)
4 GB RAM
4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost)
3GB free hard disk space
OpenGL 2.0 compatible GPU
ARM processors not supported on Windows
Required configuration
Works in Standalone, VST, AAX, Audio Unit, NKS.
Apple
Mac OS 11+
4 GB RAM
4 cores CPU, 3.4 GHz (4.0 GHz Turbo-boost) or M1 CPU
3GB free hard disk space
OpenGL 2.0 compatible GPU
Work with ASC
An elegant and simple solution to help you install, activate, and update your Arturia software instruments.
What’s in the box
Box content
Registration card
USB Cable (C/A)
User Manual
Power supply
Size & weight
Size (mm): 99 x 935 x 330 mm
Size (in): 3.90 x 36.81 x 12.99 in
Weight (kg): 9.9 kg
Weight (lb): 21.83 lb
Polyphony
AstroLab optimizes Polyphony for each instrument to ensure the best reliability and performance:
Pianos, EPs and organs have 48 voices
Most synths have 8 voices
Buchla Easel V, Synthi V, KORG MS-20 V are monophonic.
Pigments and Augmented instruments’s polyphony may vary depending on engine and effect usage.
Preset Compatibility
V Collection X instruments and Pigments are supported except for Mellotron V* and CP-70 V. See FAQ for more information of supported instruments and versions.
*Mellotron presets are available as presets of AstroLab's Sampler instrument.
Future Compatibility
We are committed to the ongoing support of AstroLab, and the continuous development of its features, performance and compatibility with our latest software instruments.
Ensuring new instruments work perfectly on AstroLab takes time, therefore, they may not always be available for use on AstroLab upon release.
AstroLab is a highly versatile and complete instrument and we will endeavour to release key updates regularly to make it even more capable and powerful.
