_AudioFuse 16Rig
Studio mastermind interface

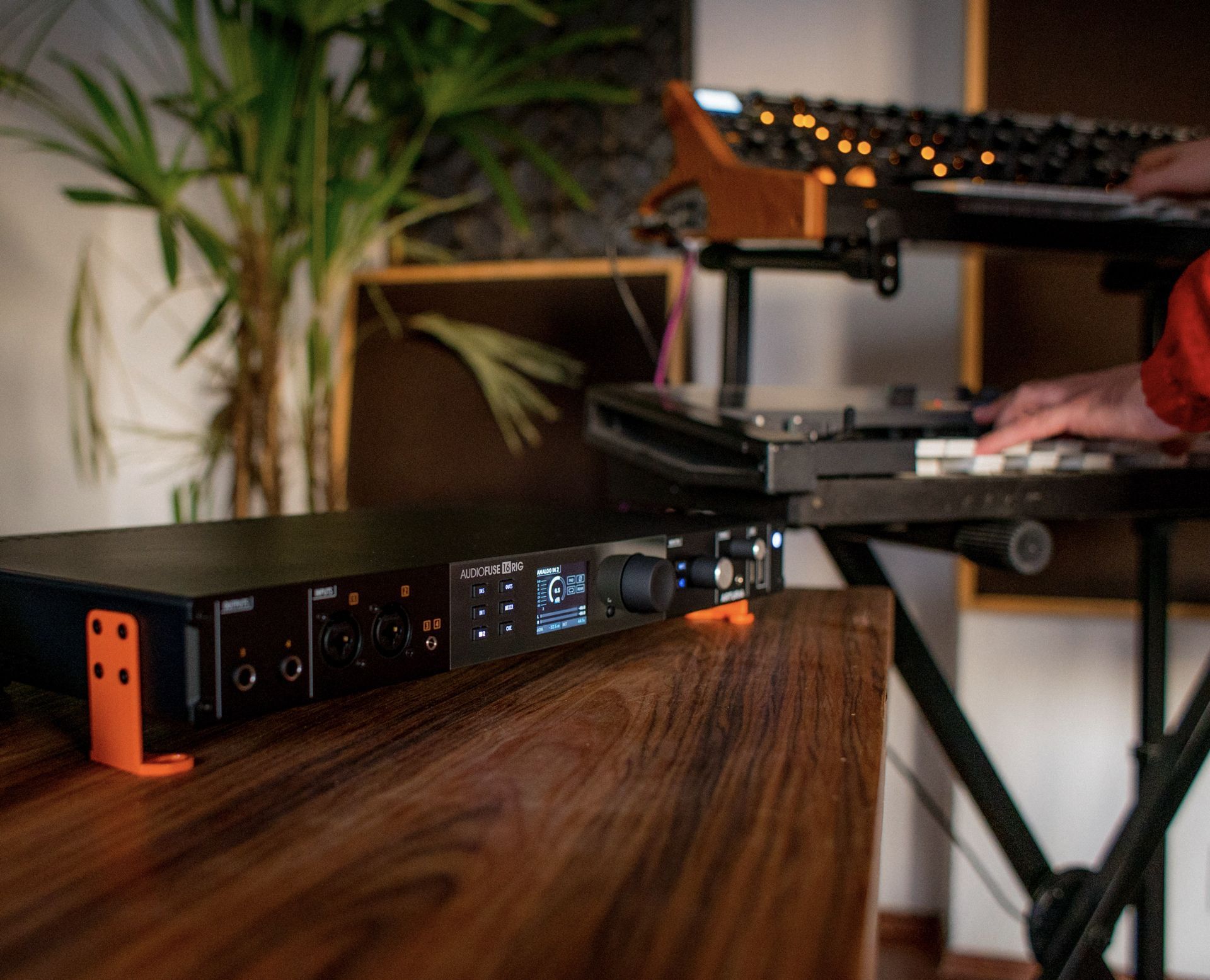

AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, always sounding pristine, and always ready to go.
What's included?
Analog Lab IntroV.5
Pre 1973
Pre TridA
Pre V76
Analog Lab Lite
Comp FET-76
Filter MINI
Delay TAPE-201
Phaser BI-TRON
Chorus JUN-6
Rev PLATE-140
Comp DIODE-609
AudioFuse 16Rig unit + Power supply + 2x USB cable
size : 17.3 x 10.2 x 1.8 inches (440 x 260 x 45mm)

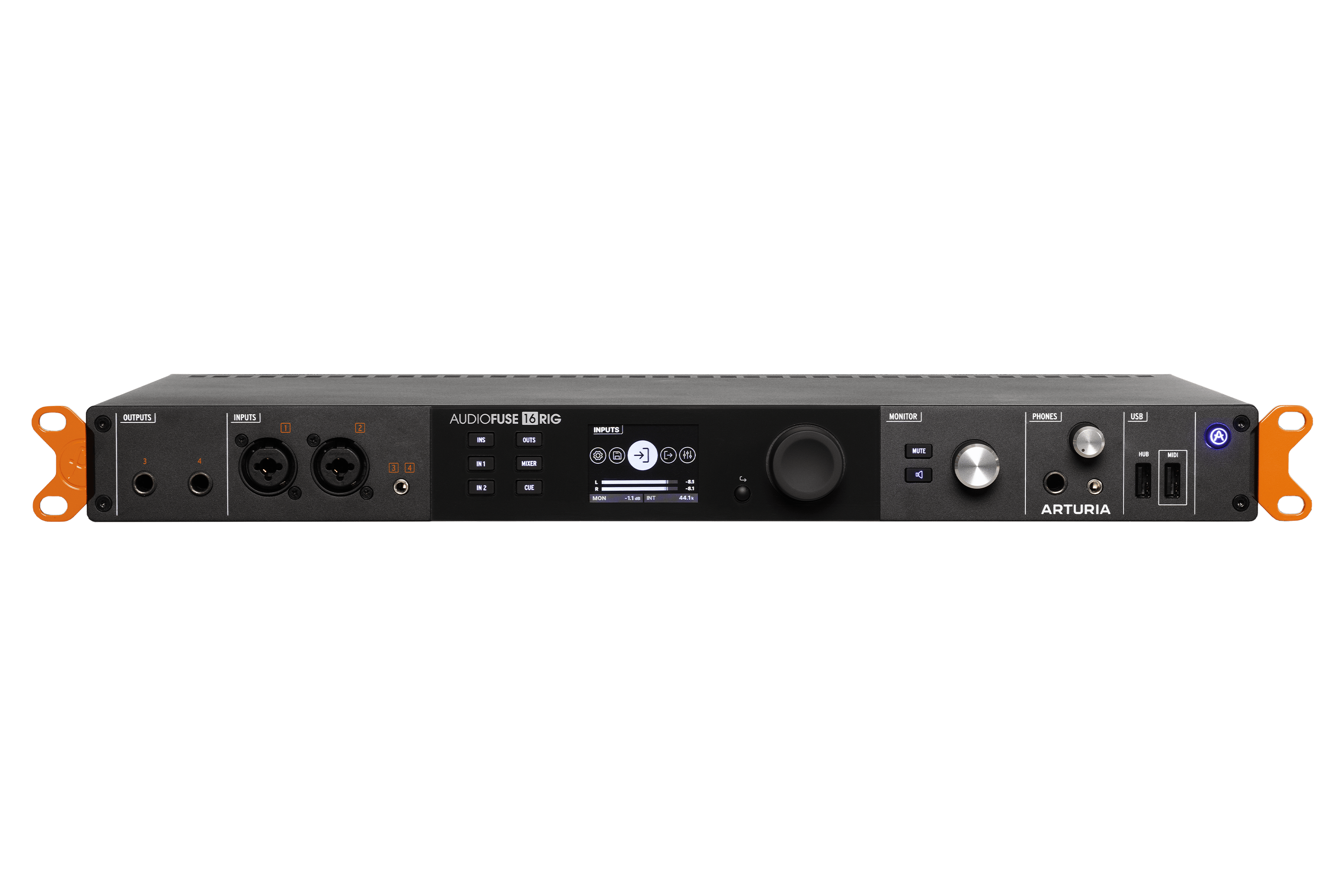

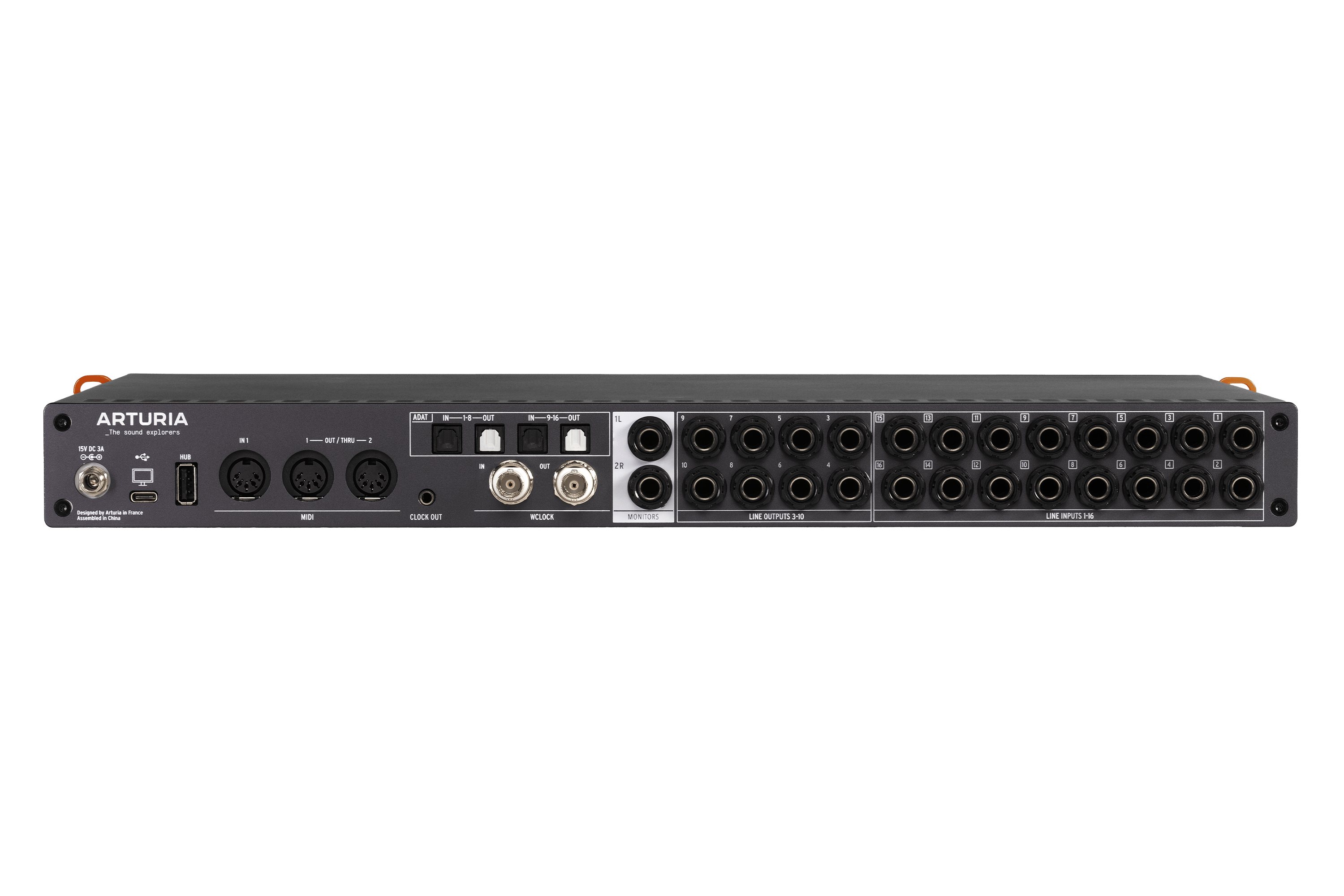

_Main features
16 x TRS analog inputs
- Includes 2 x high-quality digitally-controlled preamps
- Inputs 3 & 4 also available as 3.5mm stereo input
12 x analog outputs
- Includes 8 x DC-coupled TRS line outputs
- Stereo monitor outputs
- 6.35mm front-panel outputs for reamping, dual-headphones
2 x ADAT in, 2 x ADAT out
- Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz
Wordclock in & out
1 x MIDI in, 2 x MIDI out/thru
- 5-pin DIN connectors
- Route MIDI standalone
Low-latency USB-C connection
- Class-compliant MIDI
- 3 x USB hub connections
Two internal standalone mixers
- No computer connection needed
- Cue mixer for sub-mixing and added flexibility
- Main mixer controllable by MIDI
Color display with rotary control & menu buttons
Desktop or 1U rackmount configuration
Includes AudioFuse Control Center
Includes AudioFuse Creative Suite
- Analog Lab Intro
- Comp DIODE-609* NEW
- Pre 1973
- Pre V76
- Pre TridA
- Filter MINI
- Chorus JUN-6
- Comp FET-76
- Delay TAPE-201
- Rev PLATE-140
- Phaser BI-TRON
