Available

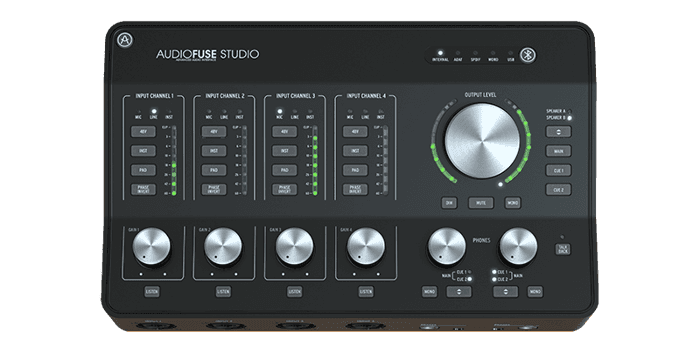

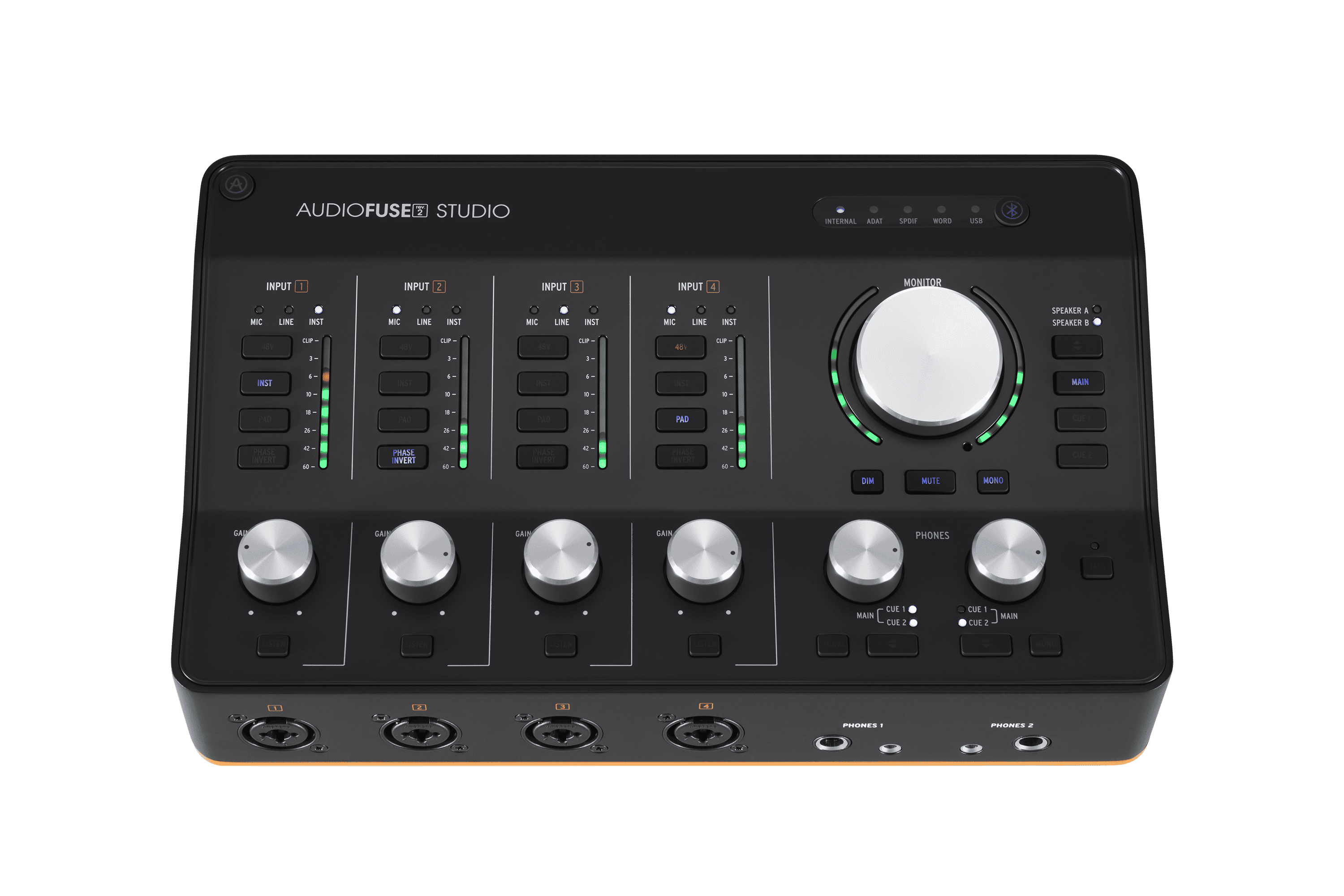

_AudioFuse Studio Rev2
Premium desktop audio interface
AudioFuse Studio returns in an elevated Rev2 edition, featuring optimized preamps and an updated Bluetooth module. Combining pristine conversion with extensive connectivity, it’s the perfect all-in-one hub for any professional recording studio.
What's included?
Pre 1973
Pre TridA
Pre V76
Comp FET-76
Filter MINI
Delay TAPE-201
Rev PLATE-140
Analog Lab IntroV.5
Phaser BI-TRON
Chorus JUN-6
Comp DIODE-609
AudioFuse Studio unit
Size : 10.4 x 6.3 x 2.8 inches (265 x 160 x 72mm)

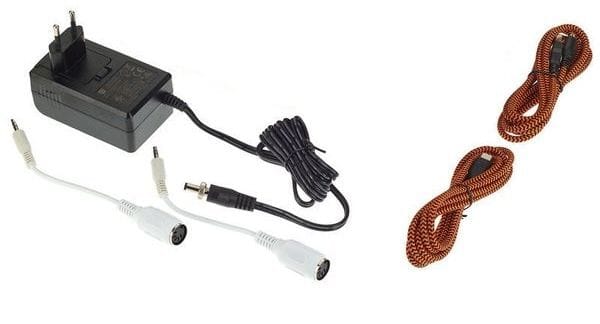

Power supply + Cables
Power supply + 2x MIDI jack adaptor + USB-C to USB-A cable (1.5m) + USB-C to USB-C cable (1.5m)
_Main features
Four optimized DiscretePRO® preamps
- Even lower THD, -129 dBu EIN and 78 dB of gain
- Four analog insert points
- Individual performance certificate included

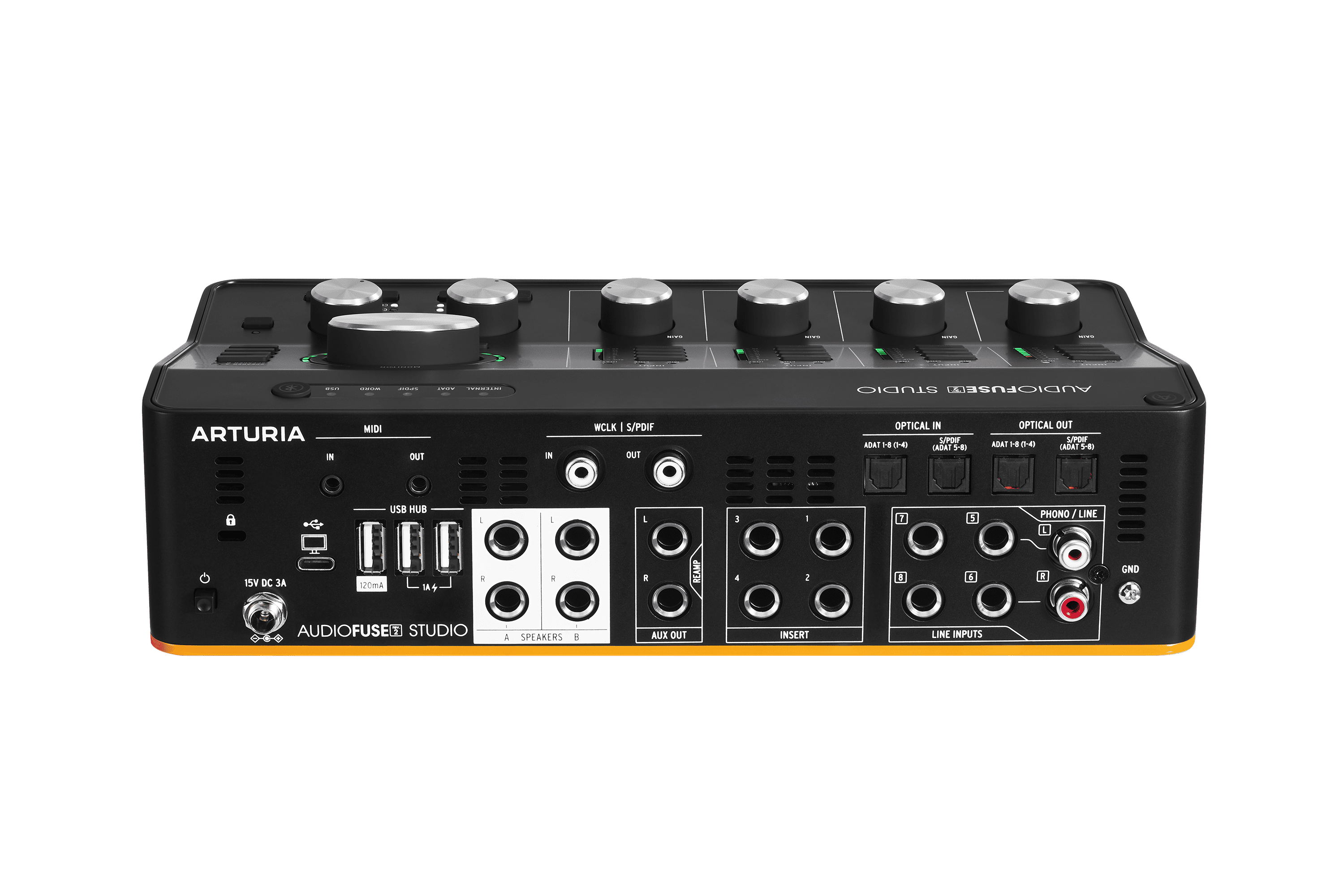

8 analog inputs
- Four mic/line/instrument inputs
- Four additional line inputs
- Inputs 5–6 switchable to the integrated phono/RIAA preamp
Flexible outputs and monitoring
- Four line outputs and two Aux/reamping outputs
- Speaker A/B switching, with support for speakers with digital input
- Two independently controlled headphone outputs
- Integrated talkback and ultra-low-latency direct monitoring
ADAT and digital synchronization
- 8-channel ADAT input and output at up to 96 kHz
- S/PDIF input/output or Word Clock input/output/thru
- Updated clocking system for refined stability
Flexible routing and software control
- Expanded source options for Aux and ADAT outputs
- Comprehensive routing and configuration through AudioFuse Control Center
Upgraded Bluetooth® streaming
- Supports AAC, aptX™, aptX™ HD and aptX™ Low Latency
- Stream, monitor and record audio directly from compatible devices
USB-C, MIDI and USB hub
- Low-latency USB-C connection
- MIDI input and output
- Integrated three-port USB 2 hub
AudioFuse Creative Suite included
- 11 software titles, including Analog Lab Intro and the newly added Comp DIODE-609
Studio-ready construction
- Robust metal desktop chassis
- 24-bit AD/DA conversion at up to 192 kHz
