A closer
look

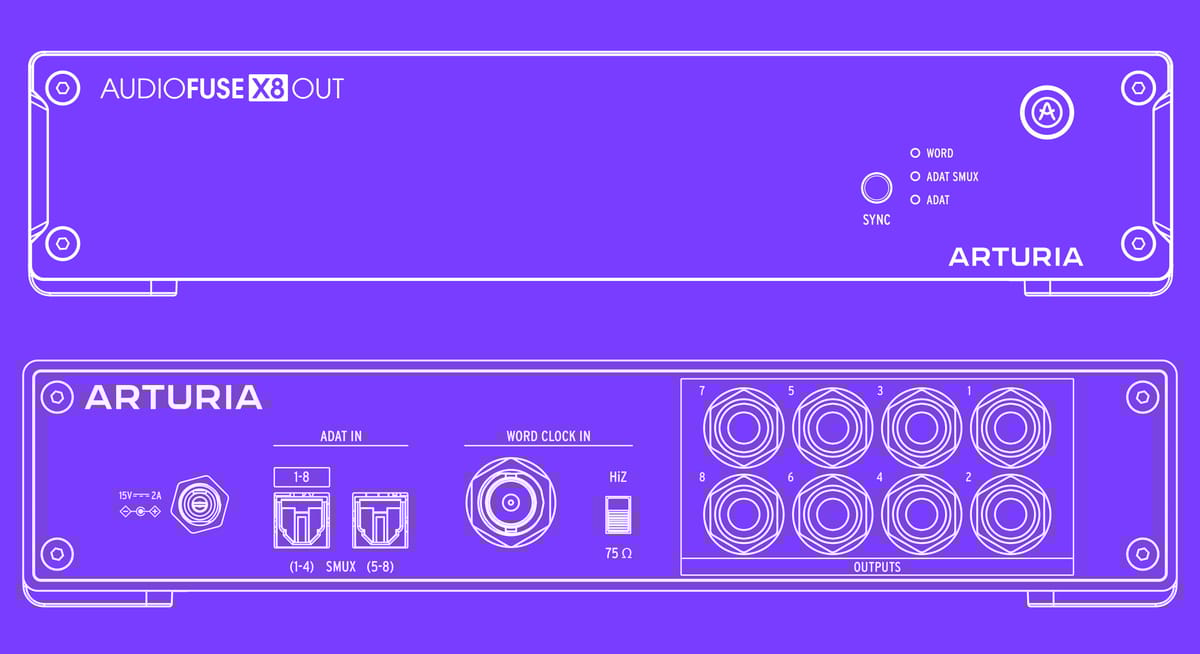

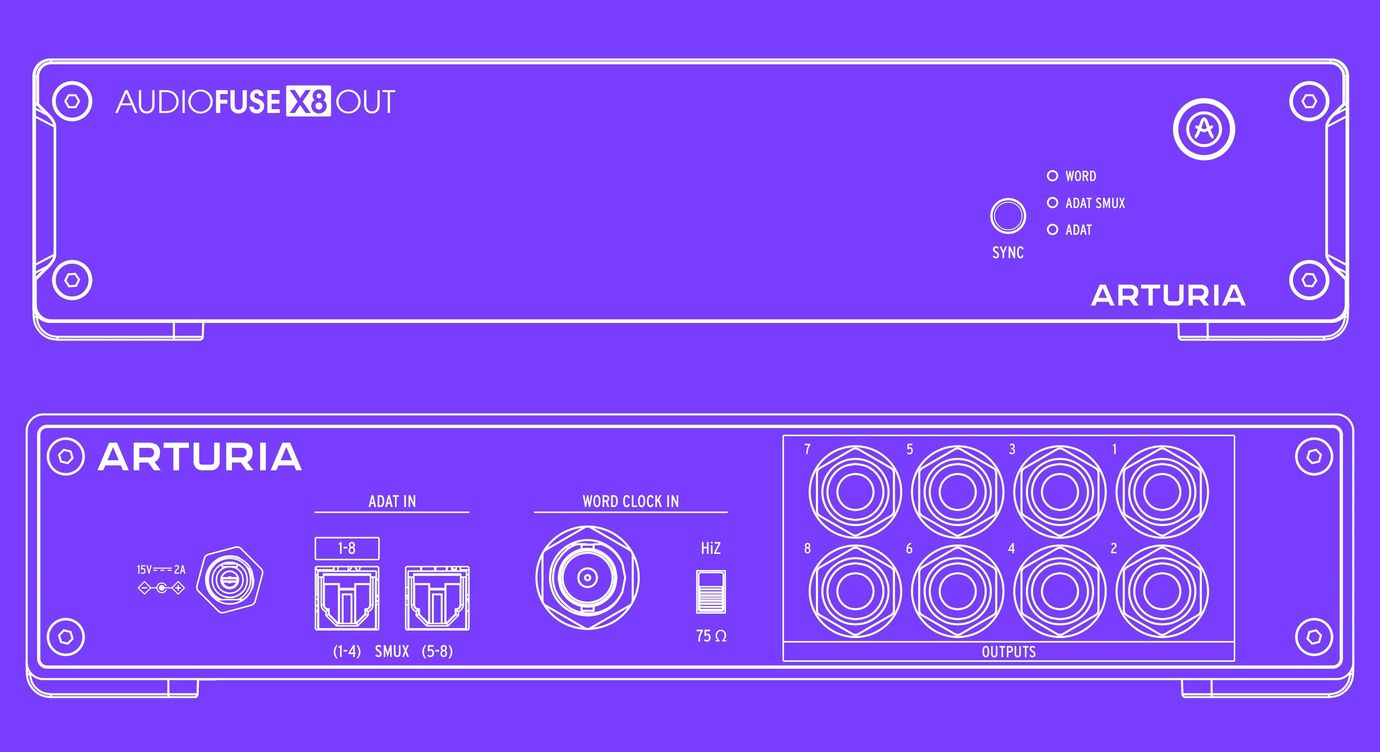

Explore the layout, connections and controls of AudioFuse X8 OUT.
Overview
AudioFuse X8 OUT
1
Output Section
The AudioFuse X8 OUT provides 8 high-quality TRS line-level outputs, ideal for connecting to multiple external devices such as speakers, mixers, and outboard processors.
2
Sync Section
The sync section on the AudioFuse X8 OUT ensures all connected devices operate in perfect harmony, maintaining tight synchronization. Sync Options: Choose between Word Clock, ADAT, and ADAT SMUX synchronization to ensure all devices are in sync. Status Indicators: Visual feedback for the current sync source and status.
3
ADAT Inputs
The rear panel features two ADAT input ports, enabling the reception of up to 8 channels of digital audio from a compatible audio interface or digital mixer. ADAT IN: 1-8 channels on one ADAT port (1-8) for 44.1kHz and 48 kHz sample rate. For 88.2 kHz and 96 kHz, 1-8 channels split across two ADAT ports (1-4 and 5-8) for seamless digital integration. SMUX Support: Ensures compatibility with higher sample rates by utilizing the SMUX protocol.
4
Word Clock
Reliable clocking is crucial for maintaining audio fidelity and synchronization across multiple devices. Word Clock In: Allows the unit to sync to an external word clock source, ensuring tight timing with other digital equipment. Hi-Z and 75Ω Options: Switchable impedance to match various word clock configurations.
5
Power and Connectivity
The AudioFuse X8 OUT is designed for robust studio and live setups with reliable power and connectivity options. Power Supply: Requires a 15V 2A power source (included). Durable Construction: Built to withstand the rigors of studio and live use.
