PolyBrute
Sintetizador analógico polifónico de transformación
Like no synth
before it
This is a new approach to synthesis.
PolyBrute goes against the grain to provide something entirely new - and not just a new sound, new feel, new design.
The raw energy of Brute oscillators, stacked six voices high, shaped by the versatility of dual enhanced classic filters. But with PolyBrute, a patch isn't just a single sound; it's an entire spectrum of sonic color that can be traversed at the touch of a single control. Attain the unattainable.
With such sonic depth comes the need for tactility. Playing PolyBrute is like suddenly being able to play several instruments at once; a multi-faceted tool of musical expression. From the classic ribbon strip to the state-of-the-art Morphée controller, each component is designed to respond to your every musical nuance.
Sounds complicated? Not a chance. PolyBrute's intuitive function-per-knob interface and the tactile elegance of the Matrix puts next-generation sound comfortably within reach.
Morphing
a new musical dimension
Infinite positions on an elusive spectrum of sound, instantly accessible.
Seamless transitioning of multiple parameters from one state to another, and everything in between. Morphing, combined with the Morphée and PolyBrute's uniquely eloquent inventory, paves the way for endless patch evolution and expressivity.
Clément Bastiat
Going from a percussive patch with an emphasis on rhythm, to something smoother, with a pleasant arpeggio-like modulation.
Euan Dickinson
The base is a filtered, wah-like tone, which turns into a plucked synth key sound using Metalizer, a Brute signature.
Morphing allows you to start from a moody plucked sound, to a soft lead, then back again.
You can quickly alternate between a pad-like envelope, and sharper, more percussive sounds, with a single twist of a knob.
Great synths
start with great sound shaping

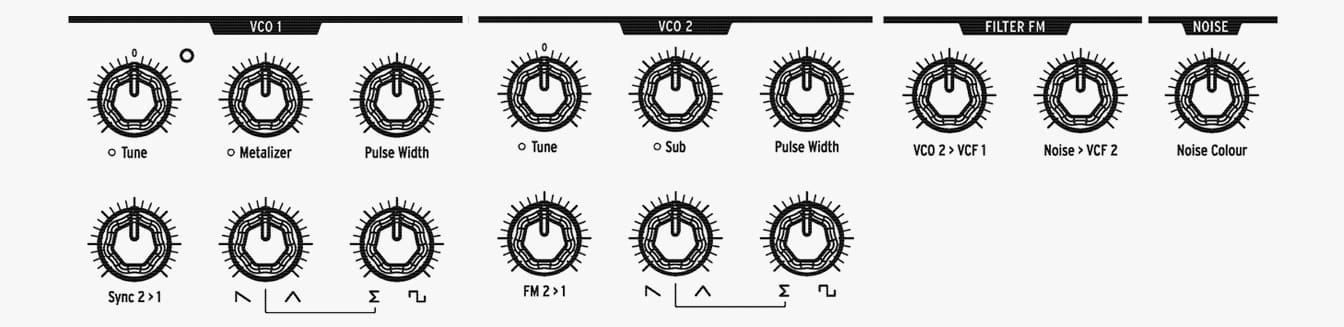

PolyBrute’s seismic sound begins with two analog VCOs sharing much of the same sonic architecture that has made MatrixBrute and the rest of the Brute family famous.
Each oscillator generates sawtooth, triangle and square waves simultaneously, and you can mix between them to waveshape just the right initial timbre.
Waveforms
Saw VCO1 > Triangle VCO1 > Square VCO1 > Sub VCO2 > Metalizer VCO1
Then dial in VCO 1’s Metalizer wavefolding to escalate from pure to rude. Bring in VCO 2’s sub-oscillator to add an extra octave lower or really rattle some teeth.
Consigue efectos de FM agresivos modulando la frecuencia del VCO 1 con el VCO 2, o altera sutilmente los armónicos con sincronía suave o dura.
VCO Sync
VCO Sync evolving
Metalizer
Metalizer evolving from minimum as a triangle waveform to the maximum Metalizer setting
Two filters
are better than one
Tame the rawness of the Brute oscillators with not one, but two filters at your disposal - time-tested classics, fused with thrilling enhancements.
_1 VCF 1 Steiner
A 2-pole 12db/octave Steiner filter design with continuous sweepable slope types, as seen across the Brute range. The addition of the proprietary Brute Factor feedback control lets you add anything from subtle warmth to a raunchy growl.
Steiner filter showing Low Pass, Hi Pass and Band Pass modes
Steiner filter plus Brute Factor
_2 VCF 1 Ladder
Inspirado en el legendario diseño de escalera de 4 polos y 24 dB/octava del Dr. Bob Moog: un paso bajo clásico con compensación de ganancia añadida y distorsión asimétrica para aportar agresividad a tus patches polifónicos.
Ladder filter with and without resonance going up to self-oscillation.
Ladder filter plus distortion.
En serie
En el modo en serie, combinas las fuerzas de ambos diseños, formando un único filtro único con dos pendientes diferentes.
Continuo
Además de asignar cada fuente de sonido de forma independiente al filtro que elijas, también puedes decidir si los filtros funcionan en serie, en paralelo o en una mezcla de ambos.
Parralel
En el modo paralelo, puedes enrutar los dos filtros por separado para conseguir síntesis estéreo independiente, en la que los canales izquierdo y derecho pueden tener distintos sonidos cambiantes.
Ladder filter with and without resonance going up to self-oscillation.
Modern
modulation sources
La modulación siempre ha sido esencial para dar vida a los sonidos sintetizados.
PolyBrute weaves a web of envelopes and LFOs that’s intricate and unpredictable in equal measure - the sound of motion itself.
Three Envelope Generators
El VCF y el VCA del PolyBrute cuentan con envolventes ADSR sensibles a la velocidad configuradas fuera de la matriz para ofrecer una respuesta inmediata. El tercer generador de envolvente incluye una etapa de delay (DADSR) y puede asignarse para transformar cualquier destino de modulación de la matriz. Usa los modos de repetición y bucle para añadir movimiento complejo a tus patches.
Three LFOs
Los tres LFO sincronizables del PolyBrute cubren un intervalo extremadamente amplio, desde paisajes sonoros cambiantes hasta modulaciones agresivas en el rango audible. Las opciones de moldeado de ondas, polaridad y redisparo te permiten llevar el sonido más allá de lo convencional. Experimenta con el enrutado en la matriz y la sincronización con el tempo/MIDI para lograr efectos hiperrítmicos.
Enter
the matrix
La flexibilidad del patching modular, combinada con la precisión digital y la riqueza analógica, crea una experiencia polifónica revolucionaria.
32 target parameters, 64 connections in total. Rearrange PolyBrute’s signal chain with the touch of a single button. Dial in positive or negative amounts, intuitively assign one or more destinations via any relevant controls, instantly route PolyBrute’s array of performance controllers and advanced modulation sources to influence just about anything in the instrument’s chain - all without the spaghetti nest of wires.
Pero la matriz no solo se encarga del enrutado de la modulación: es el núcleo de toda su arquitectura. En el modo Presets, úsala para seleccionar cualquiera de los 768 sonidos. El modo Morph permite editar estados avanzados de morphing. El modo Sequencer transforma la matriz en un editor visual intuitivo de patrones.
Animate and automate
your sound

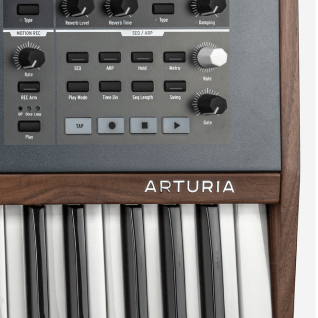

When you want to set your sound in motion, there’s no faster way than engaging PolyBrute’s Sequencer/Arpeggiator section, instantly accessible via the Transport section, Matrix, and keybed.
Trigger patterns from the keyboard or use the Hold mode to latch the keys you touch - freeing your hands to grab controllers, tweak parameters and/or play along. It’s the closest thing you can get to flying without leaving the ground.
32-Step Arpeggiator
We’ve taken the Arpeggiator way beyond the expected, giving you inspiring new modes ranging from predictable to delightfully random. When you hear something you like, the push of a button can even convert it to a sequence to preserve the magic of the moment - further editing and refinement optional.
64-Step Polyphonic Sequencer
Use either real-time or step input to record up to 64 steps, each with 6-voice polyphony. Record in Overdub or Overwrite mode, with velocity, accents, ties, and slides per step, then make refinements with streamlined Matrix-powered editing and management options - more than your everyday sequencer.
Jagged filter envelopes, effect decays, and vibrating polyphonic drones await.
You can play along live with your sequences via split and layer modes. Use controllers to change timbre and other PolyBrute parameters during playback - great for bringing nuance, character and dynamics to your sequence-aided performances. You can even record changes from up three different controllers into a sequence to automate textural changes.
Go for solid predictability or dial in the degree of random probability you want to continually shake things up.
Imagine the possibilities of doing that with just about any PolyBrute control. You can optionally set playback speed from 1/8 to 8x what you performed - and even loop playback for repetitive effects.
Motion Recorder
As if there aren’t enough ways to animate your PolyBrute patches, the Motion Recorder instantly captures your movement of almost any knob or controller - and then automatically plays that motion back with every triggered note.
Matrix Arpeggiator
If standard arpeggiation isn’t your game, the Matrix Arpeggiator mode combines the best of PolyBrute’s Arpeggiator and Sequencer into yet another innovative creative resource. Map which of up to six held notes will sound for each step, with mutes, octave transpose, slides, and even modulation tracks. Then that same pattern will apply to any notes you hold - craft melodies and ostinatos intelligently and intuitively.

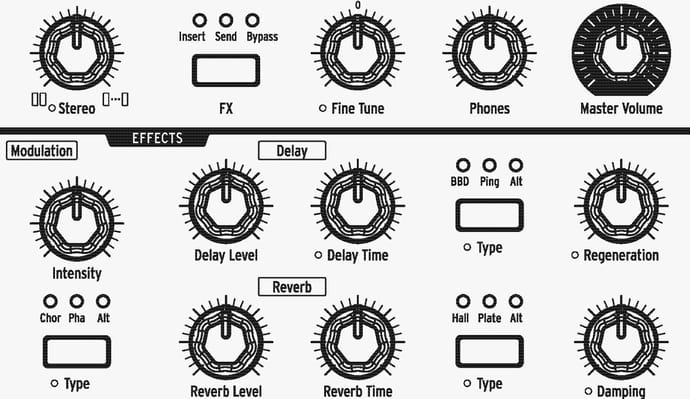

Integrated
digital effects
PolyBrute incorporates built-in professional-grade digital effects into every patch, with parameters that can be modulated to no end - rounding off an all-encompassing palette worthy of any stage, studio, or soundtrack.
These effects are no mere afterthoughts, either - we’ve even included favorite algorithms from our critically acclaimed FX Collection. Choose between 3 types of effect - Modulation, Delay, Reverb - and unlock all manner of immersive textures, from Chorus to BitCrusher, Karplus to BBD delay, Plate to Dreamy reverb.
Los efectos del PolyBrute están diseñados especialmente para aprovechar su compleja arquitectura estéreo; tienes la opción de insertarlos todos en serie antes de la salida o configurar el delay y la reverb como envío en cadena lateral.
Modulation
- Flanger
- Phaser 12p
- RingMod
- Flanger suave
- Phase Flanger
- Ensemble
Delay
- Delay estéreo
- Delay largo
- BBD PingPong
- Karplus
- Expansión estéreo
- Paralelo
- BBD ampliado
Reverb
- Placas brillantes
- Sala
- Dreamy
- Spring
- Placas con delay
EQ
This example takes a fat unison lead through all 7 EQ presets of the Polybrute FW 3.0.
- Presence
- Realce de graves
- Realce de agudos
- Sonoridad Hi-Fi
- Corrector de sonido turbio
- Corte de graves
- Corte de agudos
Distortions
This example takes gritty keys through all 7 Distortion presets of the Polybrute FW 3.0.
- Cinta sutil
- Distorsión clásica
- Recorte suave
- Cinta desgastada
- Germanium
- BitCrusher
- DownSample
World-class
presets
The world’s top sound designers pushed PolyBrute to its limit - and gave us hundreds awe-inspiring presets to explore with.
These stunning presets come readily installed, spanning a multitude of genres and musical timbres, designed by experts in every sonic field - but these are no ordinary presets. Each one is a gateway to a new sonic domain, composed of two distinct states, and infinite points in between - ready to be explored via a plethora of expressive elements.
PolyBrute is a full-tilt vehicle of sonic exploration before you touch a single button.
Pads
Percussions
Basses
Leads
Teclados
Efectos de sonido
Secuencias
Polyphony
integrated
PolyBrute is equal parts standalone synth behemoth and studio family member - simple connectivity is key.
You can play an entire set or compose an entire soundtrack from start to finish, with no other gear. But PolyBrute is also designed to connect to your existing rig for a seamless musical experience.

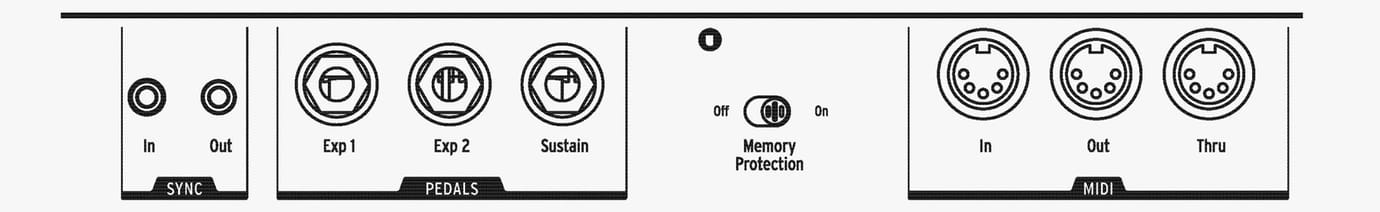

A selection of MIDI, expression, audio, and sync connections on its back panel make it a team player that can add heaps of polyphonic power to any setup. A home modular system, a touring keyboard rig, a studio staple - PolyBrute fits the bill.
Designing
a flagship
El PolyBrute es una auténtica bestia, pero hay una gran belleza en su diseño.
Not only is its layout logical and intuitive, but its striking design combines the best of vintage synth heritage and cutting-edge modernity. Timeless angles, smooth surfaces, and sleek appointments that’ll stand out on any stage. A calculated & rugged metal frame, lavishly lined with dark walnut for an aesthetic worthy of luxury interior design.
Soporte de madera
Además, el chasis del PolyBrute es totalmente compatible con nuestras Wooden Legs. Estas patas de madera ofrecen una solución ergonómica y profesional, con una construcción atemporal en madera de haya, diseñadas para el estudio y el escenario. Son tan fiables como elegantes.
Galería
Características principales
Sintetizador analógico con morphing
- 6 voces de polifonía
- Funcionamiento monofónico, unísono y polifónico
- Modos de sonido individual, divididos y en capas
61 teclas con velocidad y postpulsación
Ruedas de inflexión de tono y modulación, y franja táctil
Controlador 3D Morphée sensible al tacto y la presión
Función de morphing de sonidos con partes A y B por preset
Dos VCO analógicos
- Sierra
- Triángulo + Metalizador
- Cuadrada + ancho de pulso
- Sub
- FM lineal
- Sincronía dura
Generador de ruido
- Tono continuo desde un rugido grave hasta ruido blanco
Mezclador de oscilador y ruido con enrutado de filtro
Filtro Steiner Parker de 12 dB/octava
- Transición continua entre los filtros paso bajo>rechazo de banda>paso alto>paso de banda
- Frecuencia de corte, resonancia, factor Brute
Filtro de escalera de 24 dB/octava con distorsión
Tres envolventes
- Función de bucle
Tres LFO
- LFO1 y LFO2 con selección de forma de onda
- LFO3 con modelado de forma de onda mediante forma y simetría
- Control de frecuencia y sincronía con el tempo
- Varias opciones de redisparo
Tres efectos digitales estéreo
- Efectos de modulación: chorus, phaser, flanger, modulación de anillo
- Delay: 9 algoritmos que incluyen BBD y delay digital
- Reverb: 9 algoritmos que incluyen pasillo, placas, resortes y shimmer
768 memorias de presets
Matriz de modulación de 12×32 puntos
Secuenciador polifónico de 64 pasos
- Notas, acento y slide por paso
- 3 pistas de automatización
Arpegiador y arpegiador de matriz
Salida de audio estéreo
E/S MIDI y USB + E/S analógica de reloj
2 entradas de pedal de expresión y 1 de sustain
Contenido de la caja
Contenido de la caja
- Dispositivo Polybrute
- Cable de alimentación
What's in the Box
Size & weight
- Size (mm): 972 x 378 x 110 mm
- Size (in): 38.27 x 14.88 x 4.33 in
- Weight (kg): 17 kg
- Weight (lb): 37.48 lb
