More inputs
more control
Enhance your creative flow and have all your gear connected at once. AudioFuse X8 IN is the simplest way to extend the reach of your premium interface.
- 8x analog inputs to ADAT
- Word clock input on BNC
- 24-bit latest generation AD converters up to 96 kHz sampling rate
- 堅牢な1Uハーフ・ラック・ボディ
- Assembly kit included to rack two AudioFuse X8 units
119 dB
Dynamic Range
AudioFuse X8 features lush dynamics that ensure every nuance of your recording or performance is captured.
-112 dB
Harmonic distortion
Deliver the full essence of your audio output without introducing unwanted distortion, maintaining the true character of your sound.
各部を
より詳しく
1ノブ仕様のモジュレーション・マトリクスから多機能なタッチ・ストリップまで、MiniFreak Vocoderが誇るレイアウト、コントロール、そしてサウンドメイキングの秘密について詳しくご紹介します。
1

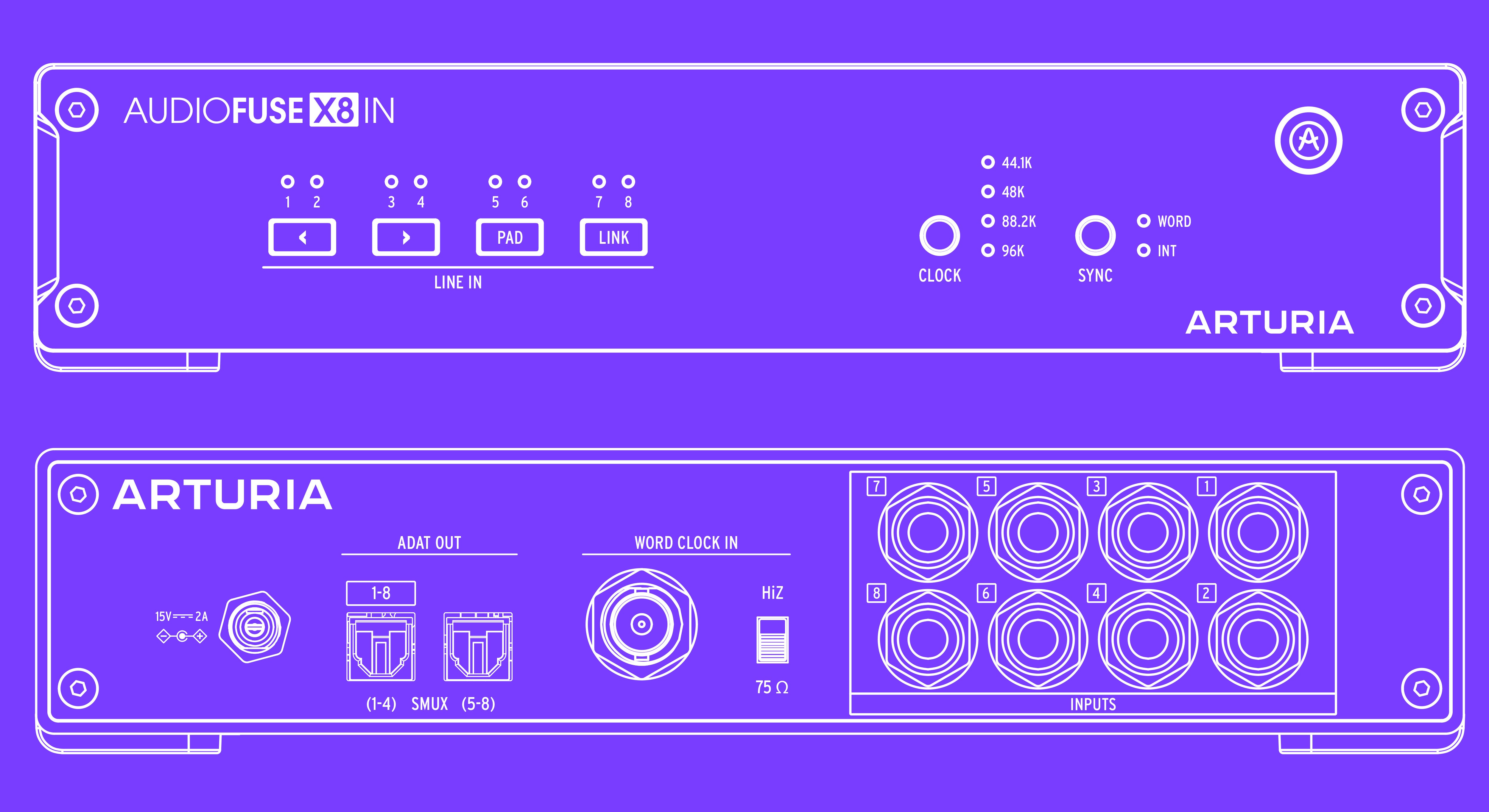

Input Section
The AudioFuse X8 IN offers 8 high-quality TRS (Tip-Ring-Sleeve) line-level inputs, ideal for connecting additional audio sources such as synthesizers, drum machines, and external preamps.
2
Input Control & VU Meter
Use the arrow buttons to select inputs from 1-8. PAD Switch: Attenuates the input signal to prevent clipping and distortion from high-level sources. LINK: enables linking of channels for stereo input. The VU Meter provides visual feedback for editing channels and monitoring your sound in real-time.
3
Clock & Sync Control
The master section on the AudioFuse X8 IN provides crucial controls and indicators for managing and monitoring your signal chain. Clock Select: Allows selection of sample rates (44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz) for optimal audio fidelity. Sync Options: Choose between internal and word clock synchronization to ensure all connected devices are in sync. Status Indicators: Visual feedback for current sample rate and sync status.
4
ADAT Outputs
The rear panel features two ADAT output ports, enabling the transmission of the 8 input channels to a compatible audio interface or digital mixer. ADAT Out: 1-8 channel on 1 connector when the sample rate is smaller or equal to 48 kHz. 1-8 channel on both connectors when the sample rate is higher than 48 kHz. SMUX Support: Ensures compatibility with higher sample rates by utilizing the SMUX protocol.
5
Word Clock
Reliable clocking is crucial for maintaining audio fidelity and synchronization across multiple devices. Word Clock In: Allows the unit to sync to an external word clock source, ensuring tight timing with other digital equipment. Hi-Z and 75Ω Options: Switchable impedance to match various word clock configurations.
6
Power Input
The AudioFuse X8 IN is designed for robust studio and live setups with a reliable power input. Power Supply: Requires a 15V 2A power source (included).
