Your recording all-in-one

Beginner music makers, content creators, producers with limited space, musicians on a budget - whoever you are, enjoy an affordable, easy, pro-grade recording bundle for vocals, instruments, and any audio you need.

{{ item.title }}

{{ item.text }}

What’s included?

{{ `${index + 1} ${item.title}` }}

{{ item.text }}

More details on MiniFuse 2

The best music-making software included for free

The MiniFuse Recording Pack doesn’t just take care of your recording needs.

Make the most of pro-level mixing tools, explore vintage & modern software instruments, and give your sound the professional edge with the same exceptional software used by music and audio professionals worldwide.

{{ item.title }}

{{ item.text }}

Express yourself

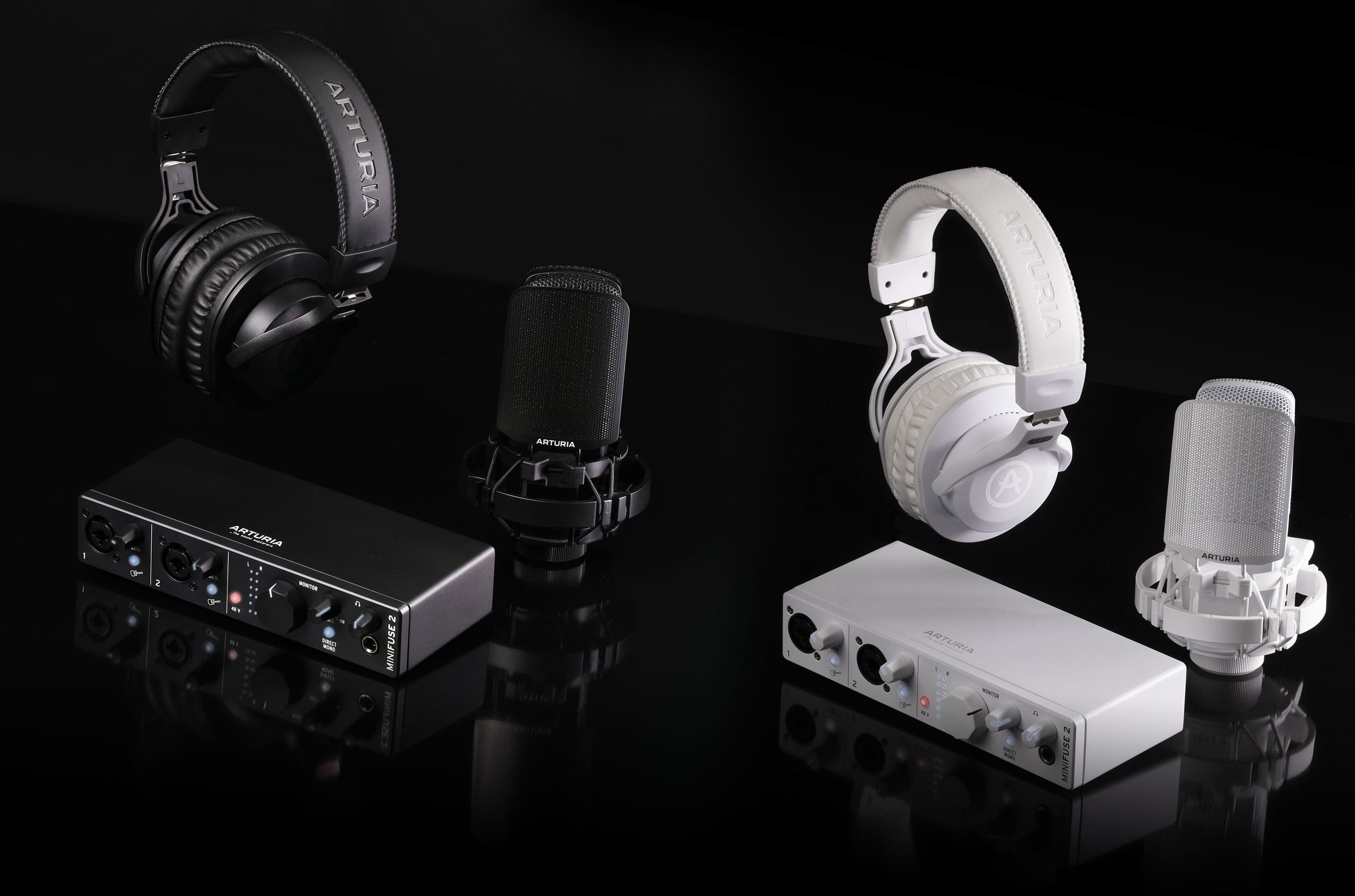

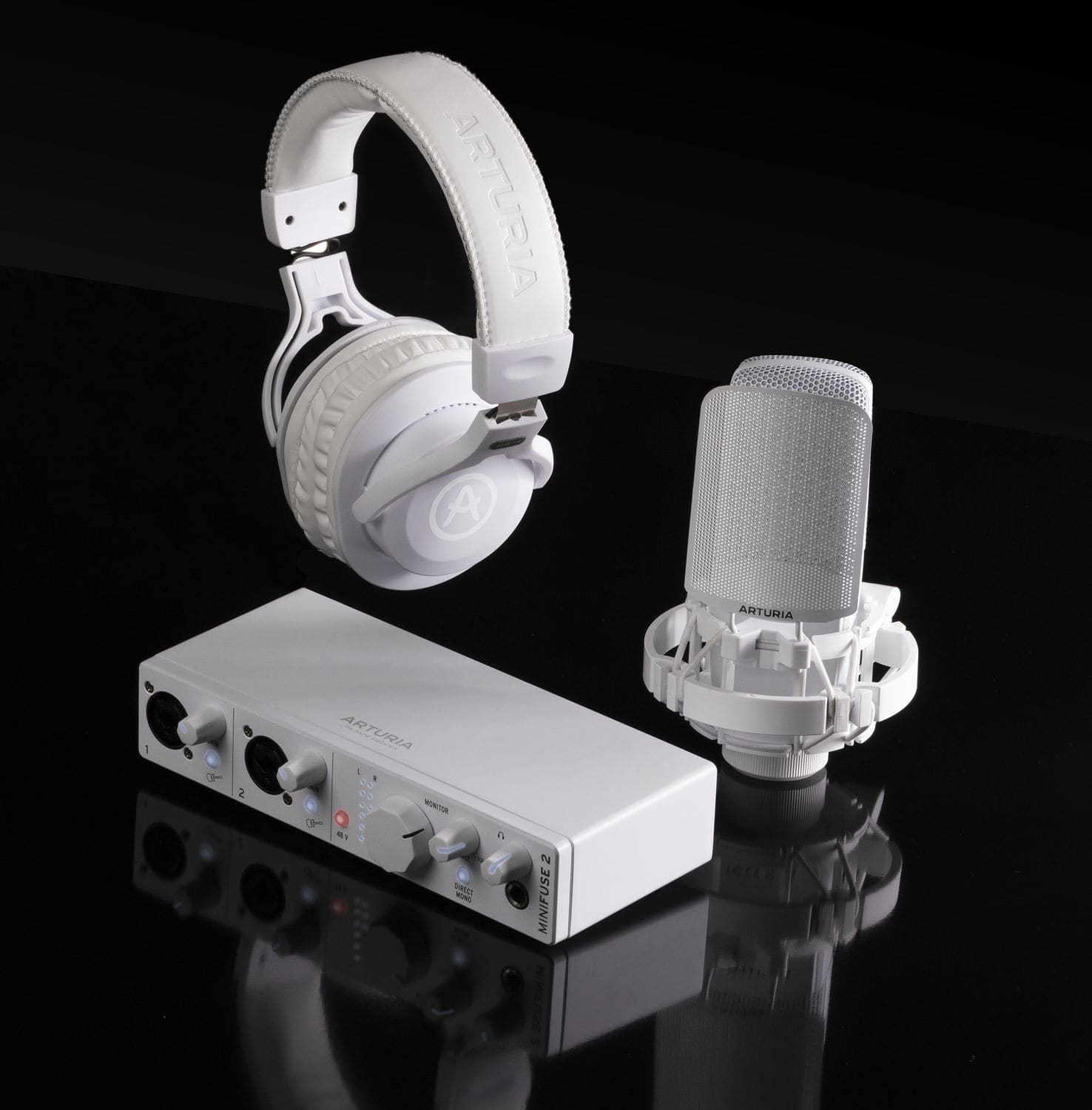

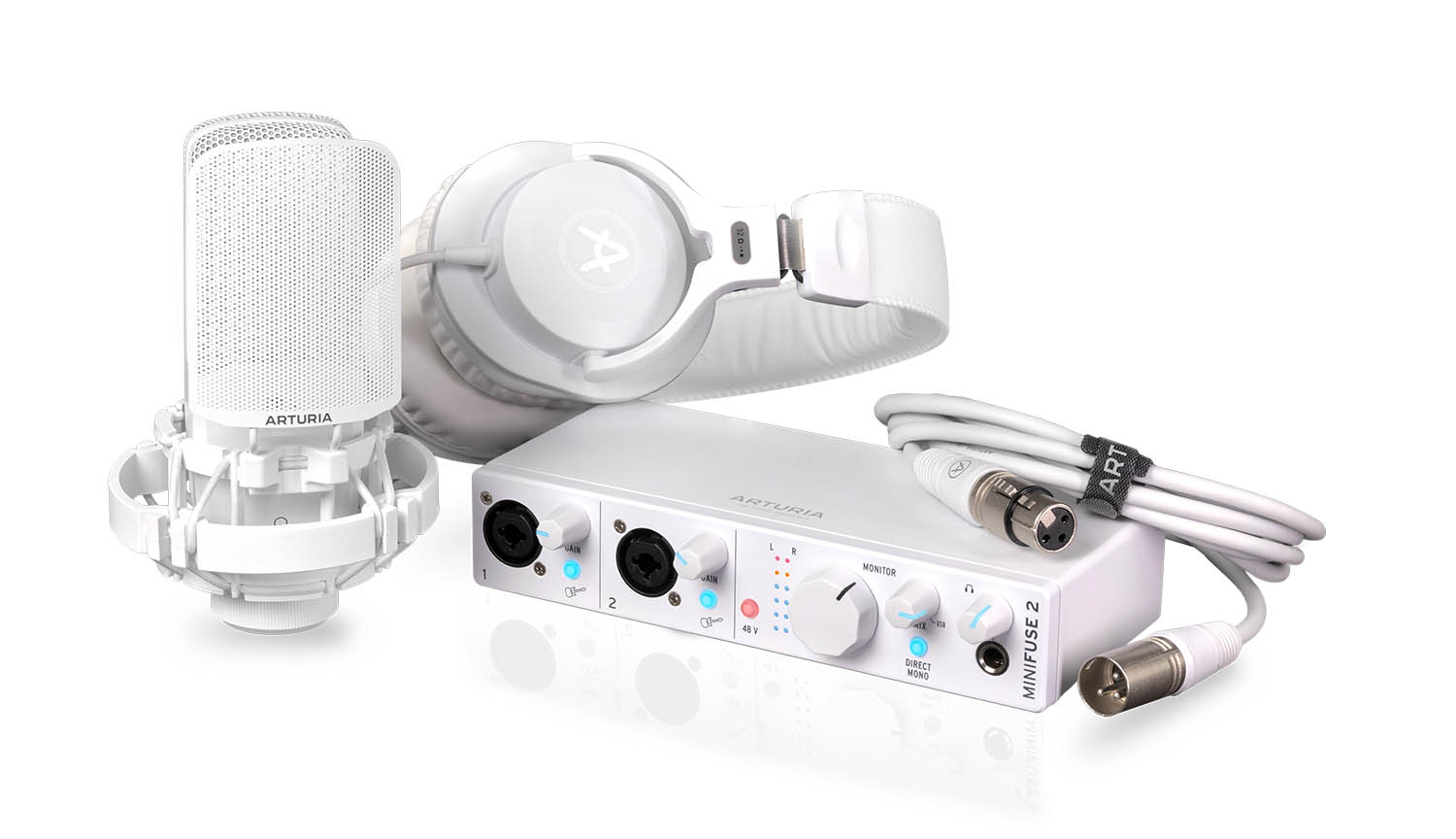

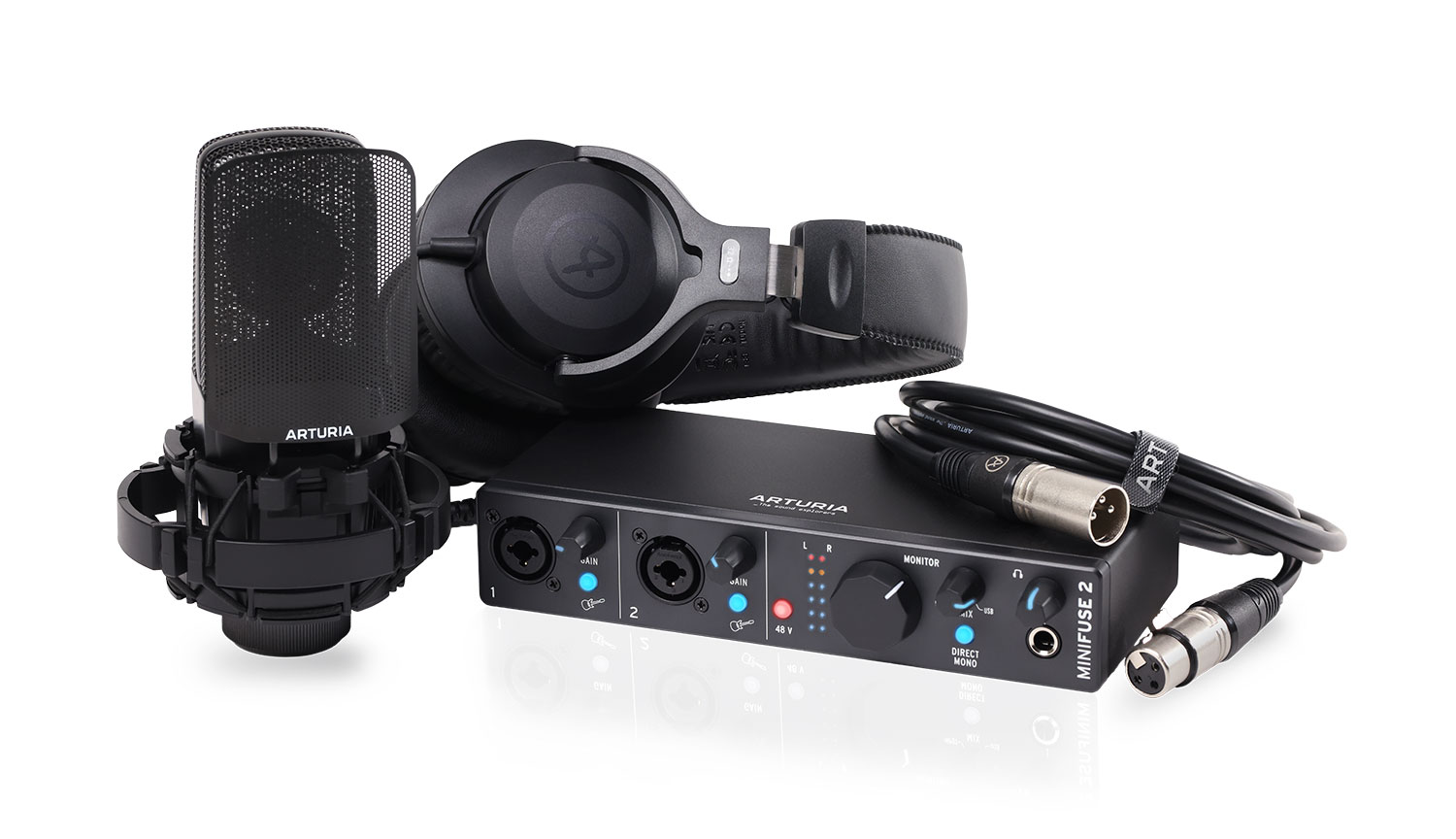

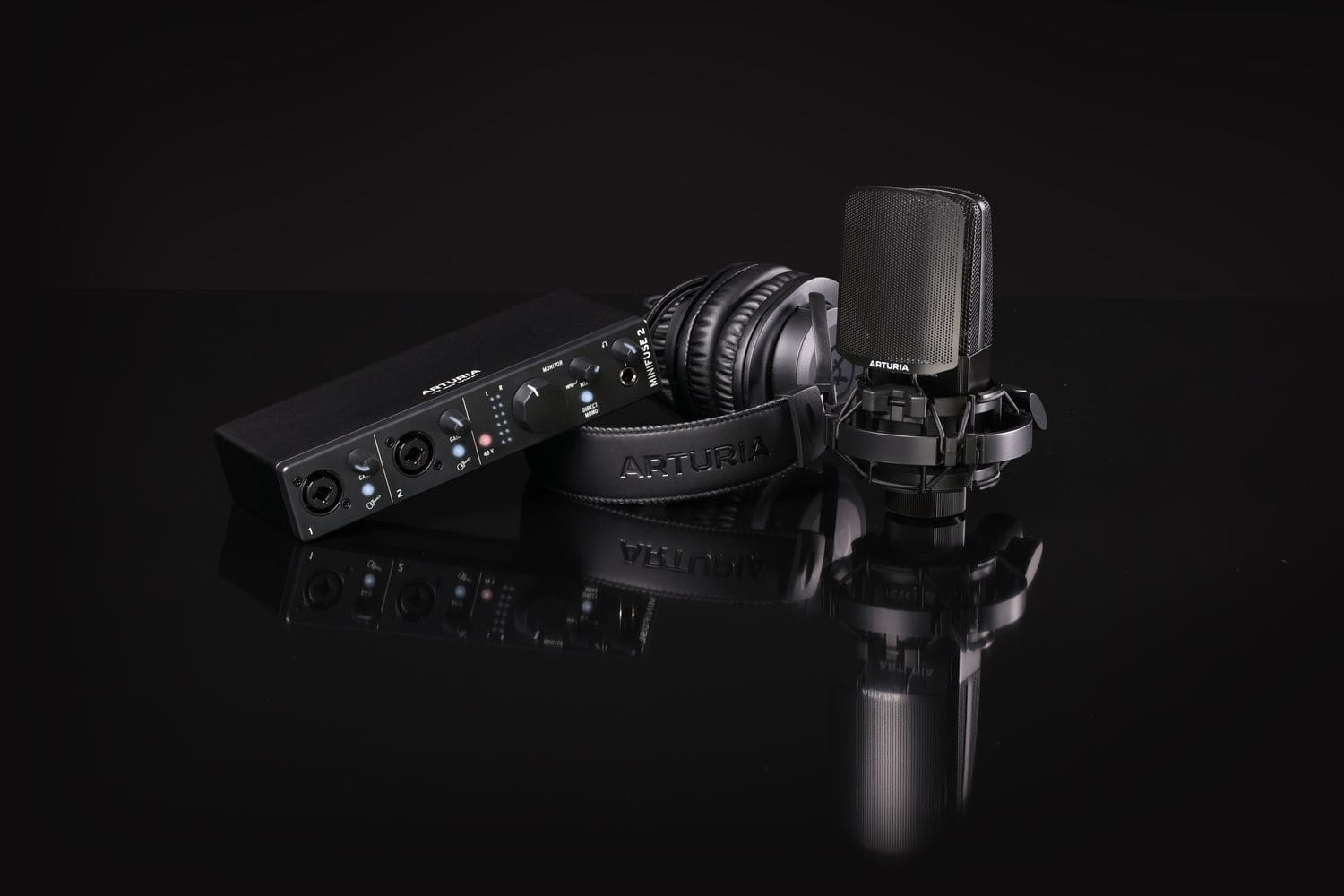

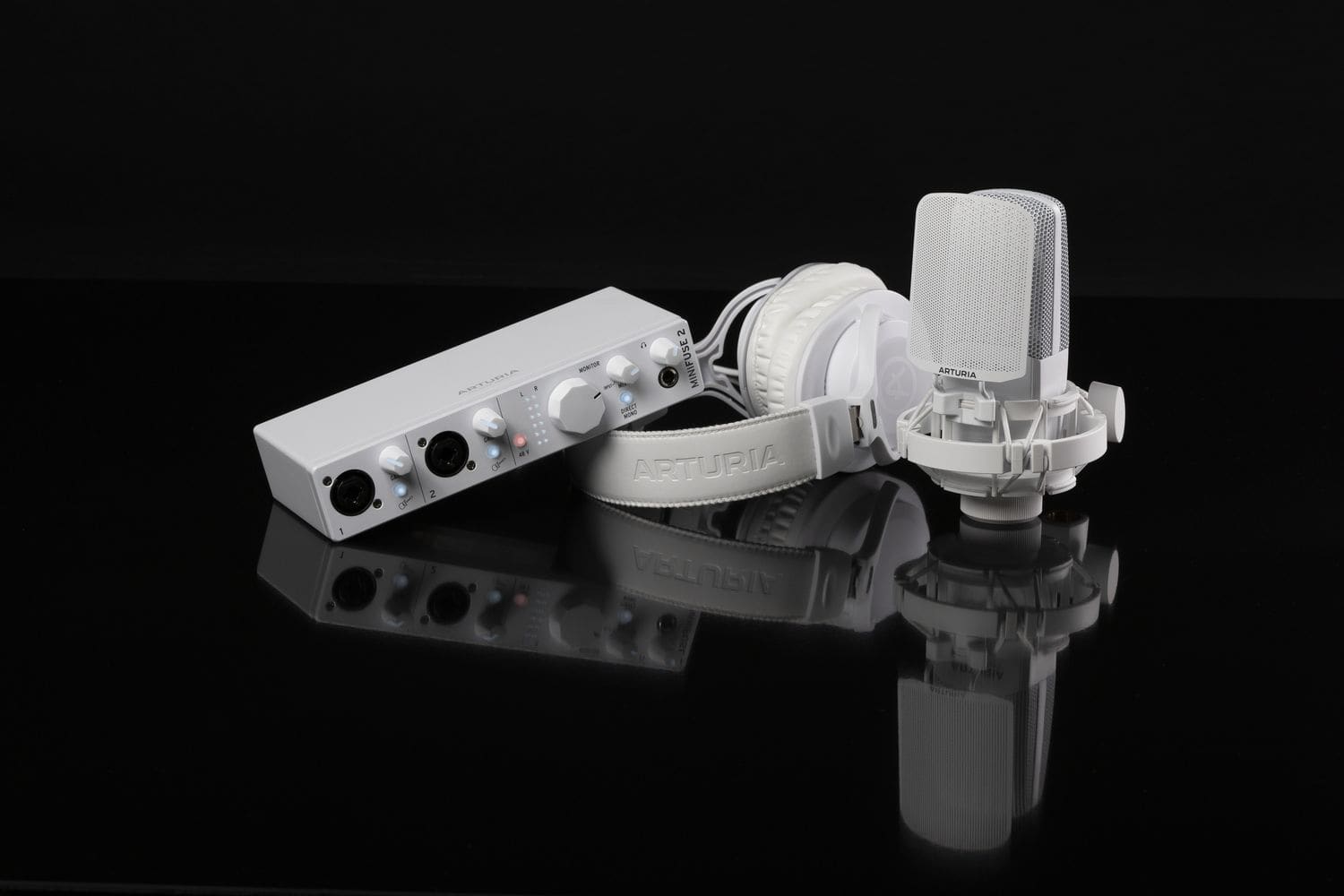

Choose between a darker aesthetic or a bright modern look with black and white versions of the MiniFuse Recording Pack.

Technical Information

A closer look at the technical side of the MiniFuse Recording Pack, from audio specifications to connectivity.

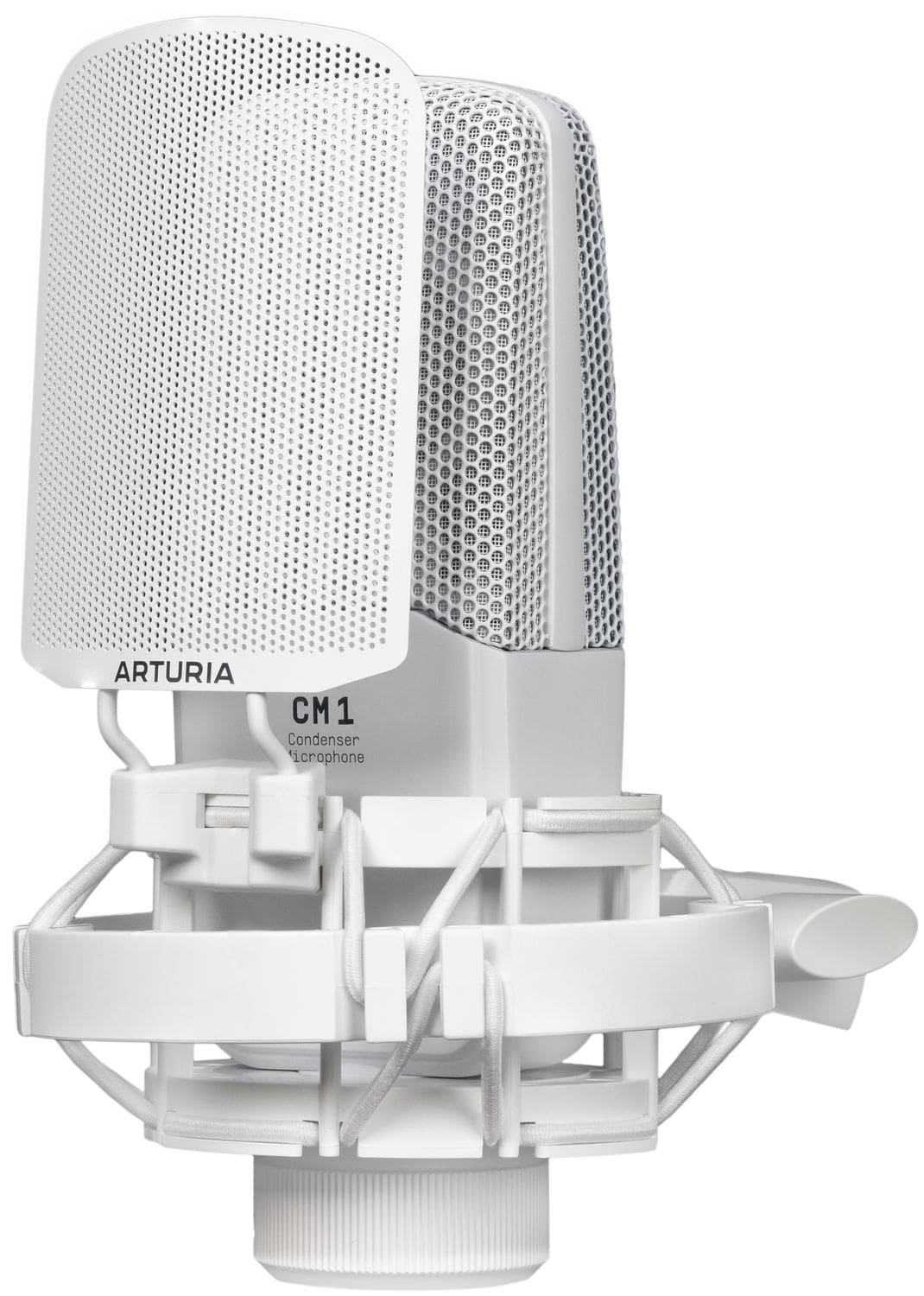

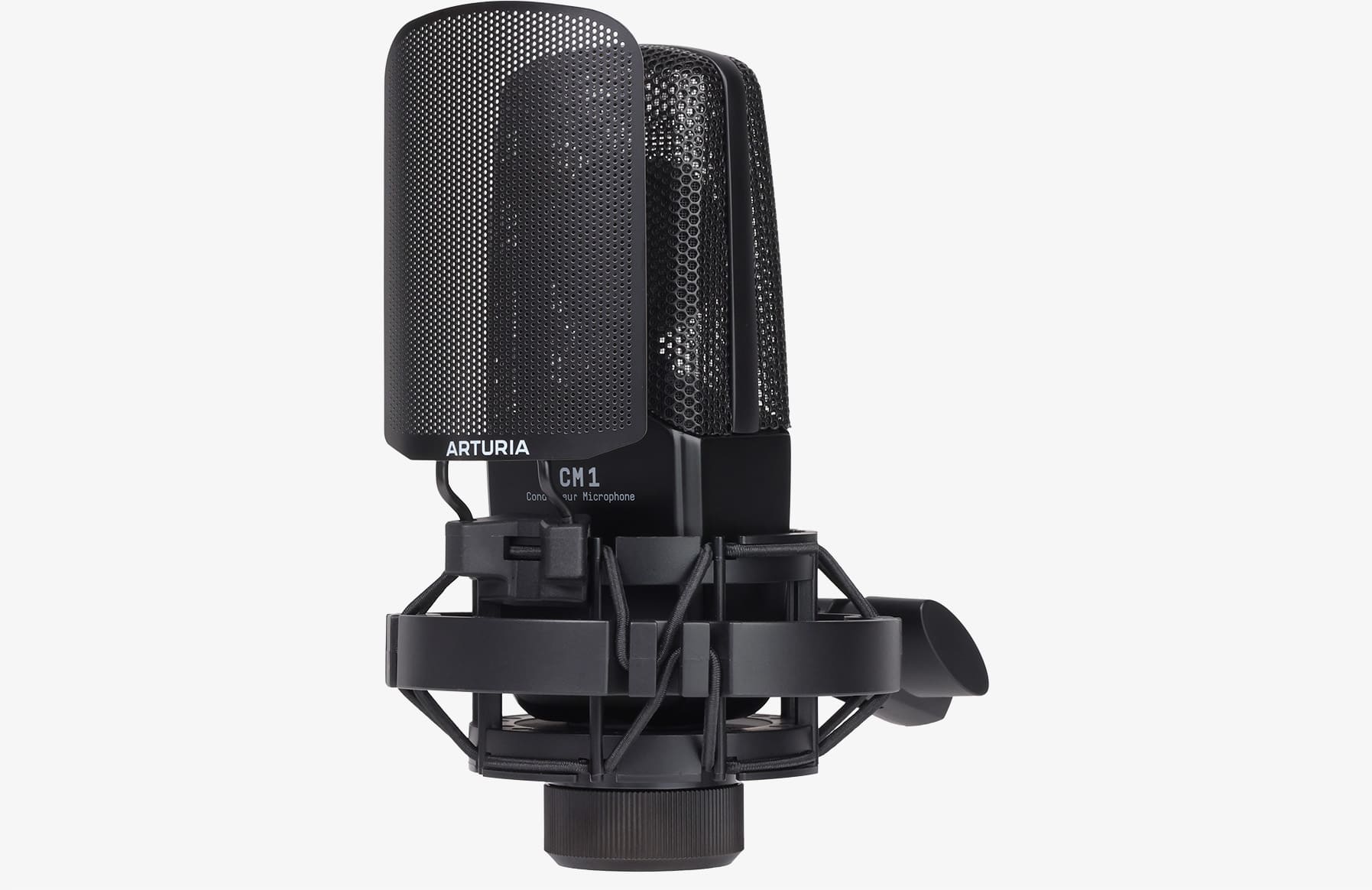

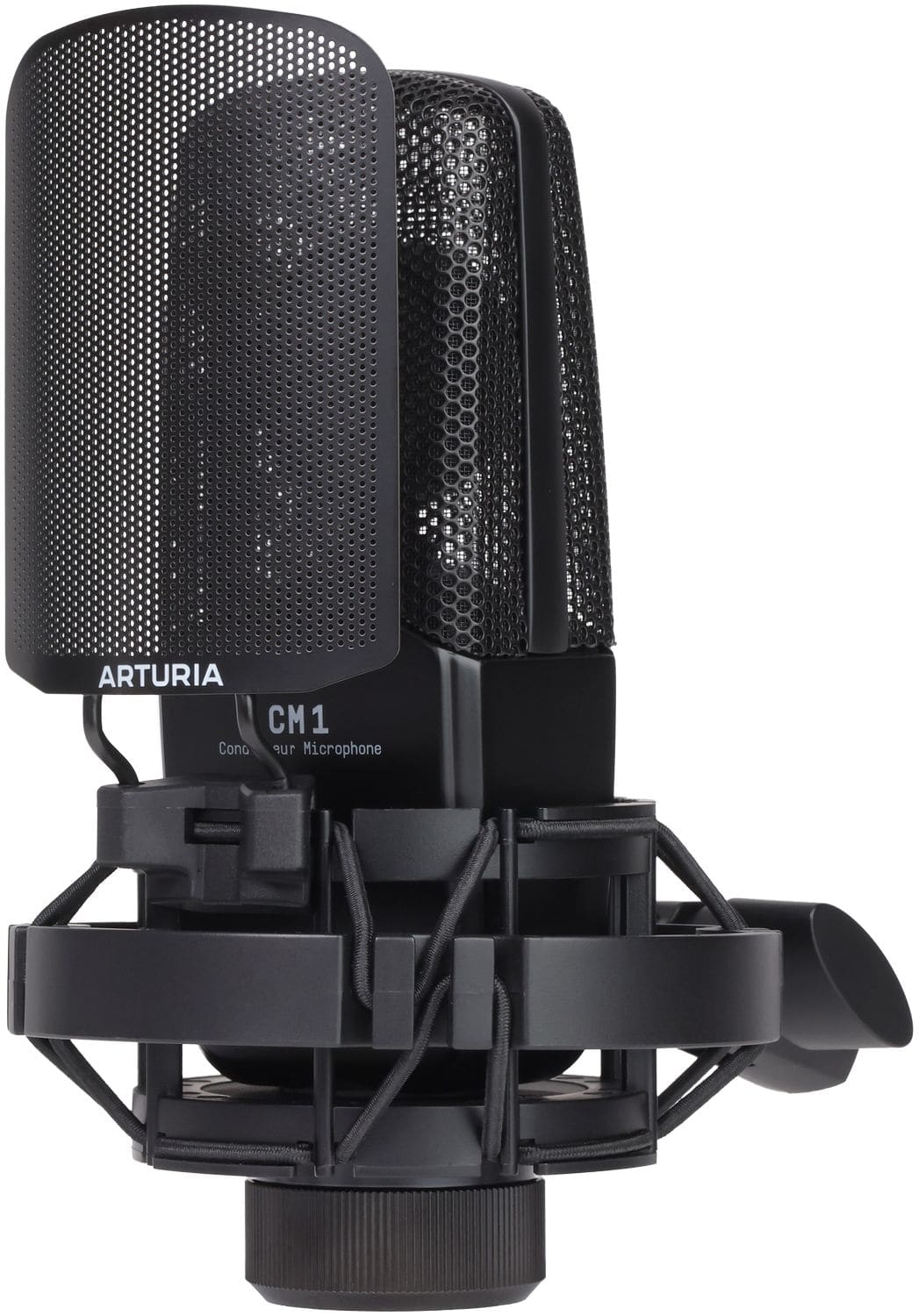

Microphone

• Capsule: Condenser (Cardoid)

• Sensitivity: -36 dB ‡3 dB (0 dB = 1 V/Pa at 1 kHz)

• Frequency response: 20 Hz to 20kHz

• Impedence: 110Ω +/-30% (at 1 kHz)

• Recommended Load impedence: > 1kΩ

• Equivalent Noise Level: < 20dBA (IEC 581-5)

• S/N Ratio: 74 dB

• Maximum SPL: 130 dB

• Power requirement: 48V phantom supply

• Current: 3.2 mA

More details

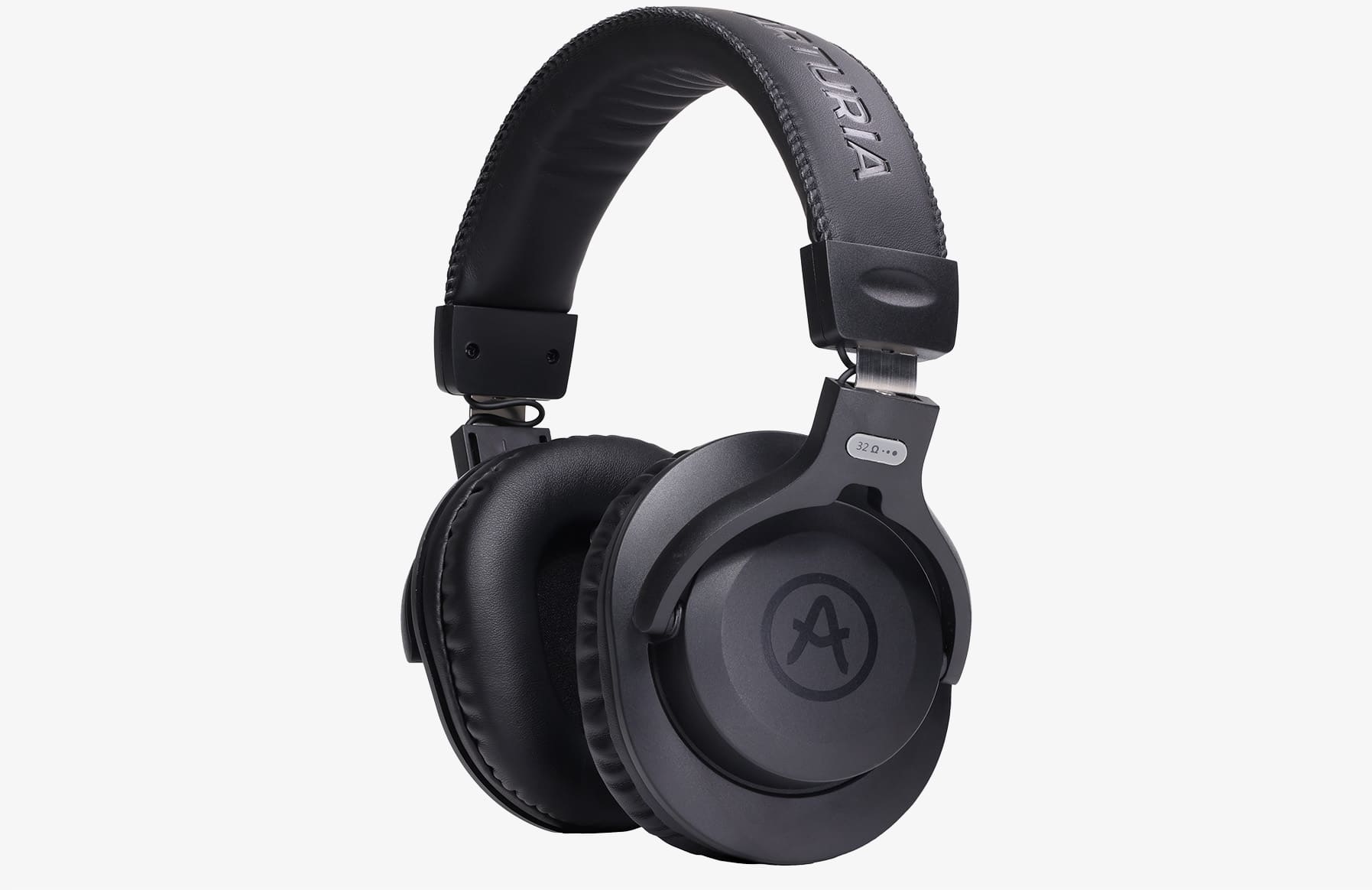

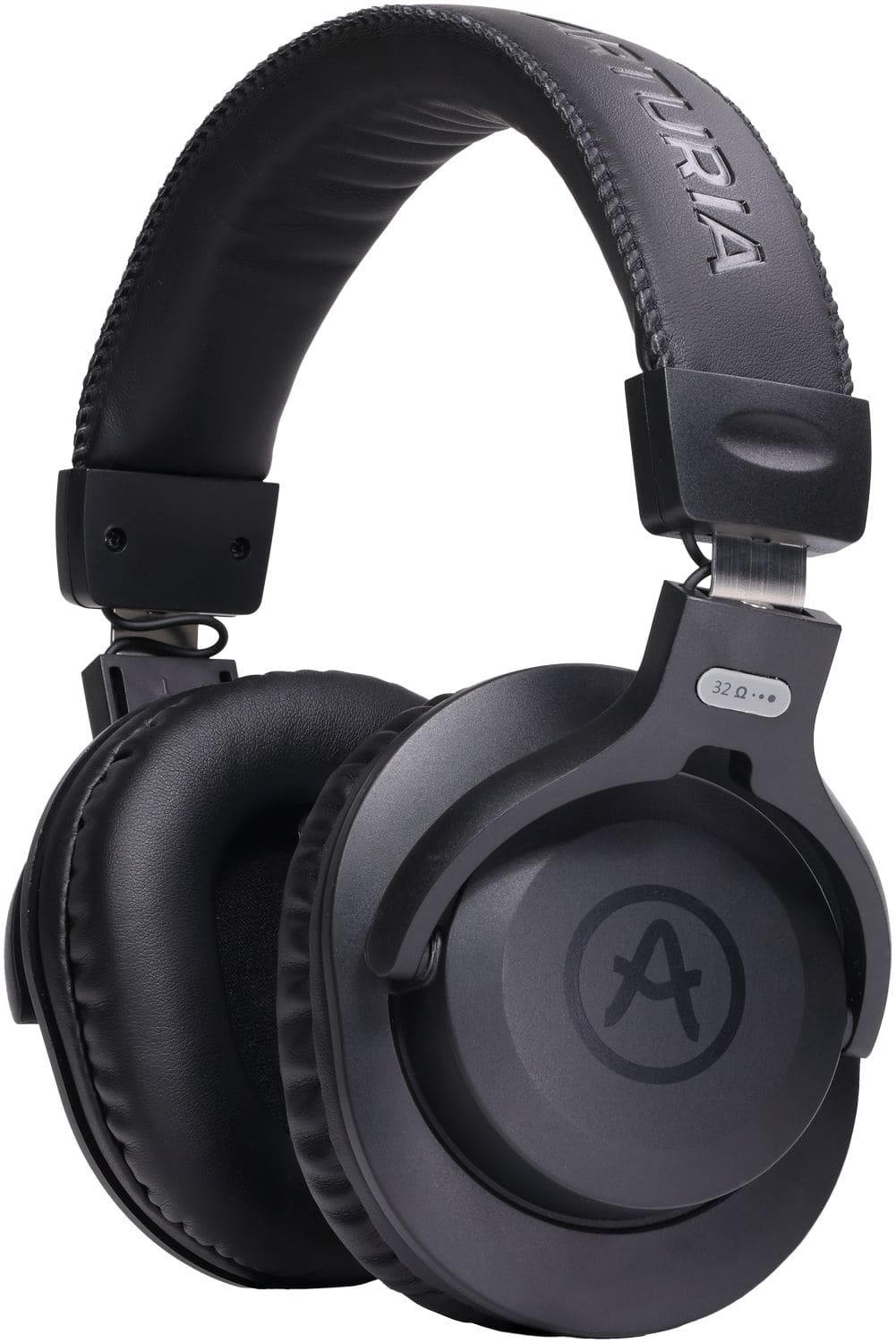

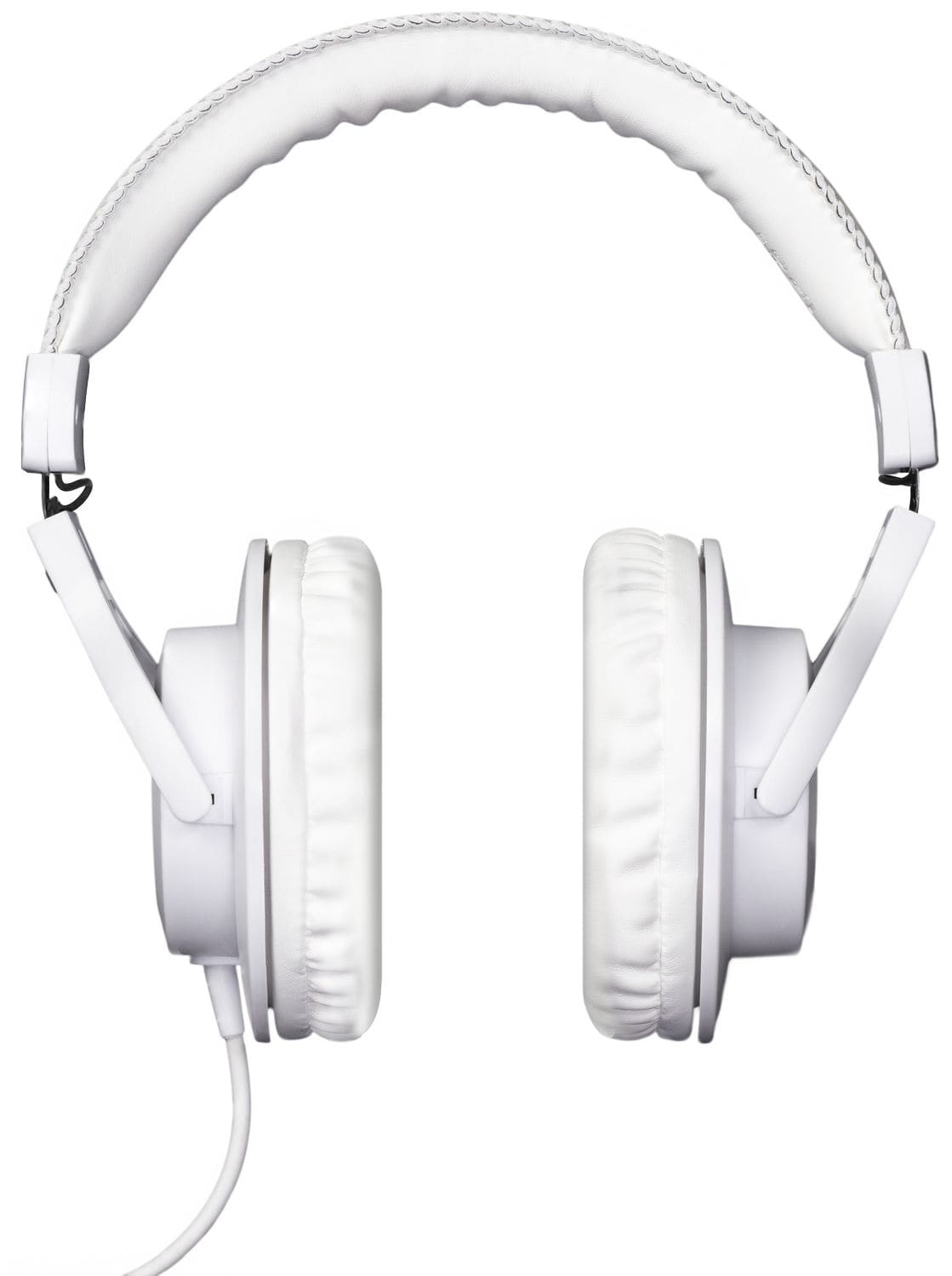

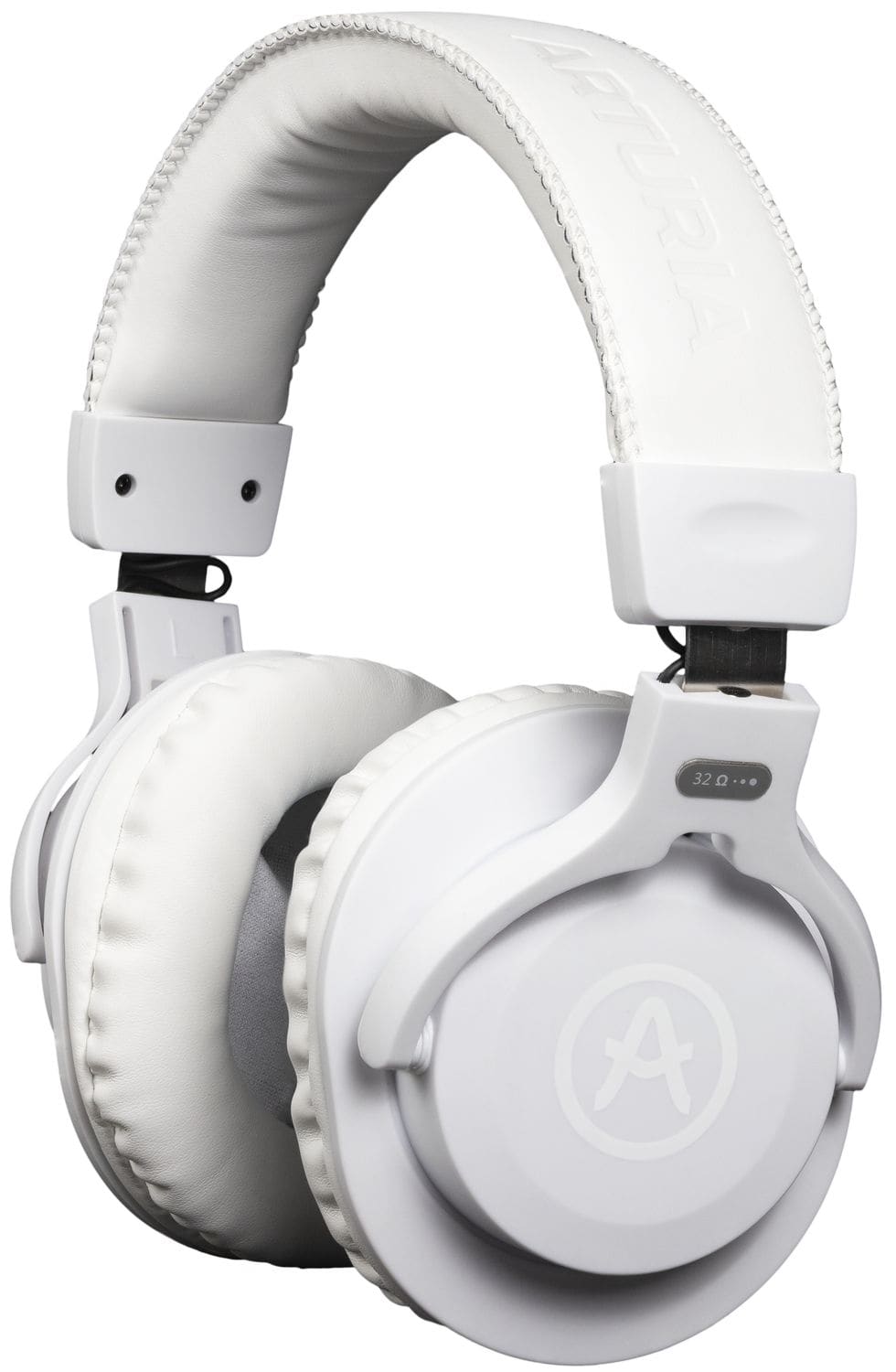

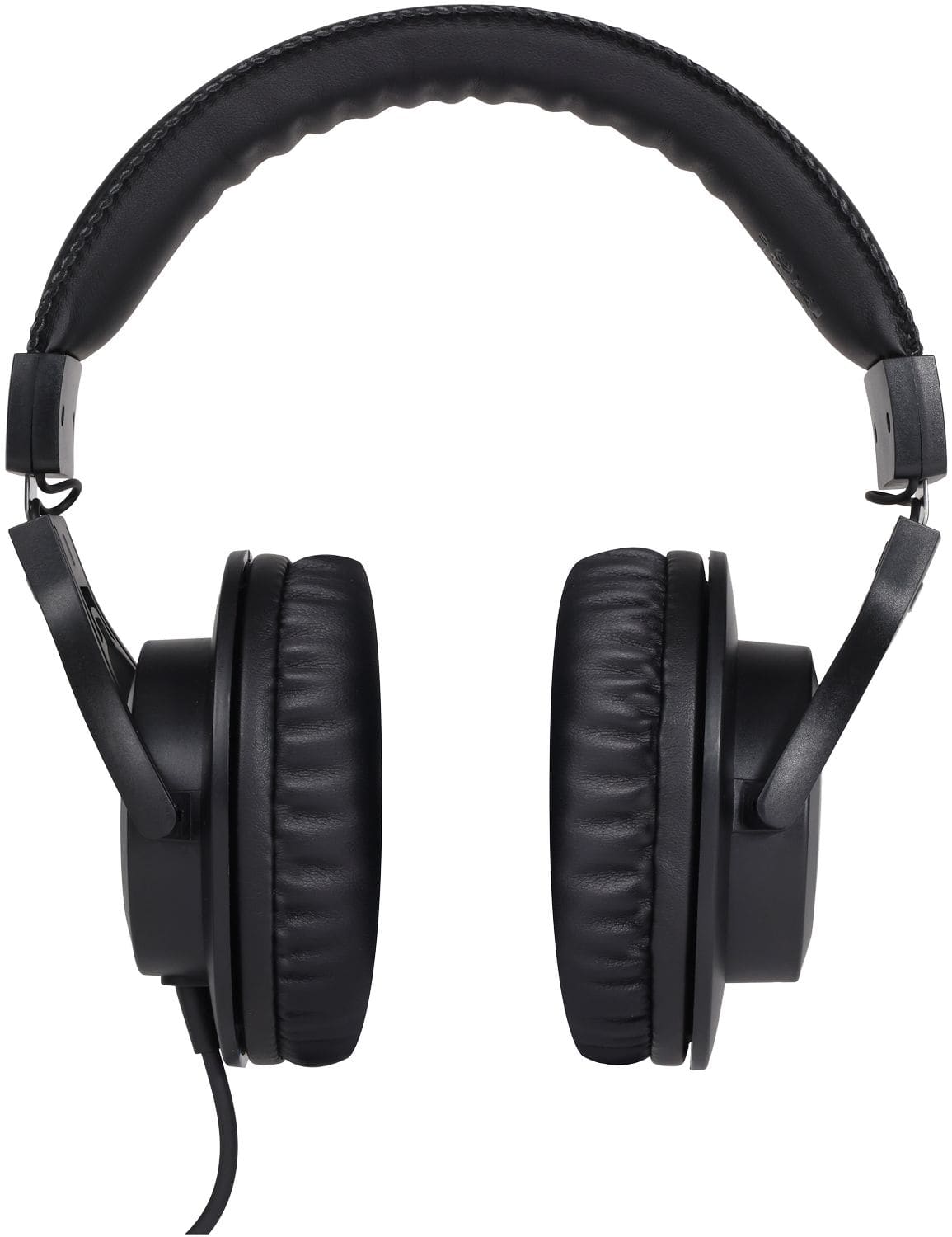

Headphones

• Type: Closed-back

• Drive diameter: 40 mm

• Impedence: 32Ω

• Sensitivity: 99 dB +/- 3dB

• Frequency response: 10Hz to 20kHz

• Max. power rating: 1.2W

• Cable length: 3m

• Weight: 260g with cable

More details

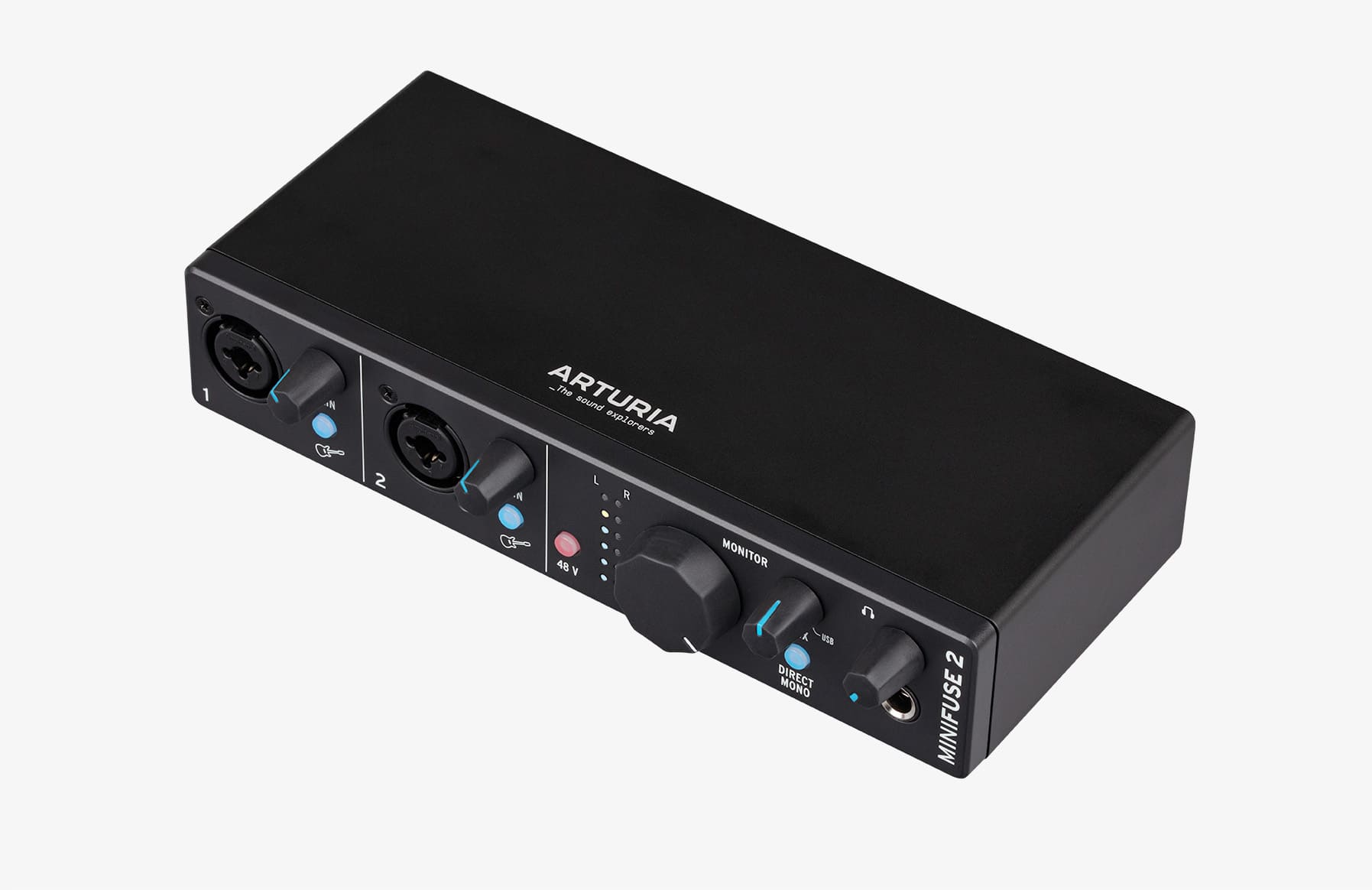

MiniFuse 2

• 2x Inputs

• 2x Outputs

• 1x Headphone

• 1x MIDI I/O

More details

Line Inputs

• Input impedance: 16kΩ

• Maximum input level: +22dBu

• Gain range: 56dB

• Frequency response 20Hz to 20kHz: +/-0.05dB (min gain)

• Dynamic range: 110dB typical (A-weighted)

• THD+N @ 1kHz: -100dB typical (un-weighted)

Instrument Input

• Input impedance: 1MΩ on Tip

• Maximum input level: +11.5dBu

• Gain range: 56dB

• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)

• Dynamic range: 110dB typical (A-weighted)

• THD+N @ 1kHz: -91dB typical (un-weighted)

Microphone Preamps

• Input impedance: 2.5kΩ

• Maximum input level: +9dBu

• Gain range: 56dB

• Equivalent Input Noise (EIN): -129dB typical (A-weighted)

• Frequency response 20Hz to 20kHz: +/-0.06dB (min gain)

• Dynamic range: 110dB typical (A-weighted)

• THD+N @ 1kHz: -100dB typical (un-weighted)

Speakers

• Output impedance: 94Ω

• Maximum output level: +12dBu

• Frequency response 20-20kHz: +/-0.09dB

• Dynamic range: 107.5dB typical (A-weighted)

• THD+N @ 1kHz: -101dB typical (un-weighted)

Phones

• Output impedance: 10Ω

• Maximum output level: +11.4dBu

• Frequency response 20-20kHz: +/-0.09dB

• Dynamic range: 104dB typical (A-weighted)

• Power @ 33ohm: 137mW



Supported Sample rates

• 44.1kHz, • 48kHz, • 88.2 kHz,

• 96kHz, • 176.4kHz, • 192 kHz
