AudioFuse 16Rig

スタジオの首謀者

AudioFuse 16Rigは、比類ない豊富な接続端子とクリエイティビティ優先のワークフローを融合した高密度オーディオインターフェイス。ハードウェアを中心としたセッティングに対応し、各種機器を常に同期させ、常に原音忠実のサウンドでいつでも準備万端です。

または、お近くの販売店をお探しください →

Make your
sound count

Introducing an interface that lets you leave everything connected, route anything to anything, and be more creative with your projects.

A workhorse hub of connections and smart features designed to get the job done, no matter the complexity. A powerful, reliable production tool that can be molded to suit your audio setup, your workflow, and your sound.

A standalone mixer

For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching.

Intricate audio routing

Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick ‘connect anything and everything’ configuration.

Quantity, meet quality

Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it’s red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.

Choose your workflow

Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig’s settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.

It’s time your music
: had an upgrade

  • x16 ADAT I/O
  • x8 Analog Line DC coupled Outputs
  • x16 Analog Line Inputs
  • x1 MIDI In & 2x MIDI Out/Thru
  • Wordclock I/O
  • 24-bit AD/DA 192kHz
  • Creative FX Bundle Included

USB-C Audio Interface

32 Inputs

Ultra-low latency internal mixers

28 Outputs

Desktop or Rack mounted

Smart
design

Sometimes it’s the little things that matter most. You need your gear to complement and enhance the way you work, and that’s the driving force behind AudioFuse 16Rig.

See how every piece of the AudioFuse 16Rig puzzle fits together to deliver a dream interface for audio & music hardware lovers.

Premium FX
included

Every AudioFuse interface comes with an ever-evolving suite of creative plugins curated from our award-winning FX Collection. Refine any incoming audio with vintage studio tools, get experimental with contemporary effects, and embark on a journey through classic & modern sounds with Analog Lab.

Analog Lab Intro

A superb software instrument containing hundreds of amazing presets taken from Arturia’s award-winning V Collection. Analog synths, pianos, organs, and more await.

発見する Analog Lab Intro →

Pre 1973

Inspired by the hugely influential British studio sound, the Arturia Pre 1973 is the key to getting that harmonically exciting, solid-state 70s tone.

発見する Pre 1973 →

Pre V76

The key to getting that “White Album” sound, these reinvented German engineered, tube-driven broadcast preamps were beloved by Abbey Road.

発見する Pre V76 →

Filter Mini

Dr Robert Moog’s iconic, smooth ladder filter, accurately recreated and updated with an LFO, envelope follower, and a step sequencer.

発見する Filter Mini →

Chorus JUN-6

Chorus JUN-6 resurrects a classic synth effect, with 3 simple modes offering glorious stereo width, subtle analog movement, and perfectly-emulated BBD warmth.

発見する Chorus JUN-6 →

Comp FET-76

Modelled after the most sought-after compressor ever made, the Class A FET sound our 1176 software recreation seems to make everything sound better.

発見する Comp FET-76 →

Delay TAPE-201

The Arturia Delay TAPE-201 gives you everything you love about the sound of vintage hardware tape delays, but with the reliability and versatility of software.

発見する Delay TAPE-201 →

Rev PLATE-140

The silky-smooth, resonant tone of vintage plate reverbs have shaped the sound of many iconic vocal performance, given the drums of best-selling tracks their air, and brought whole mixes together with bright, sweet overtones.

発見する Rev PLATE-140 →

Phaser BI-TRON

Phaser BI-TRON is a double-barrelled modulation powerhouse that lets you weave your own kinetic sound with advanced routing, dual phaser circuits, and beautiful analog character.

発見する Phaser BI-TRON →

Pre TridA

Music industry gold-dust. Get that ultra-rare Soho preamp sound and musical EQ that added flavor to countless best-selling hits for over half a century.

発見する Pre TridA →

Comp DIODE-609

Based on the iconic british stereo compressor and limiter with a distinctly characterful crunchy response - great for drums.

発見する Comp DIODE-609 →

AudioFuse Range

The new studio reference

The AudioFuse interface range connects your computer to the world of music. Record with the highest quality, monitor with absolute precision and bring all your gear together to create the music you always wanted to.

Discover the collection

High performance recallable preamps

The superb inputs of our interfaces give you the most vibrant, accurate sound around, with practically zero noise even at max gain, and enormous dynamic range. Be true to your music.

Analog signal path

The highest quality components are used in the input and output signal paths of the AudioFuse series, giving you an audiophile-quality experience with no compromise.

Huge versatility

Each AudioFuse interface has its own unique set of features designed to make recording as fun and easy as possible.

PressClippings

  • Wired

    On AudioFuse 16Rig

    “It’s totally worth it when the end goal is a smooth and simple pathway to music making. Musicians of all levels will love this workflow.”

  • Amazona

    On AudioFuse 16Rig

    “I can only give the Arturia AudioFuse 16Rig the Amazona.de top rating of "Best Buy"”

  • Gearspace

    On AudioFuse 16Rig

    “It’s a powerhouse of a thing, and really delivers a massive amount of facility.”

  • MusicTech

    On AudioFuse 16Rig

    “Synth heads and hybrid mixing fanatics will be licking their lips at all this goodness.”

  • Synth Anatomy

    On AudioFuse 16Rig

    “With the AudioFuse 16Rig, Arturia has released a true flagship audio interface on the market. Packed with features that leave almost no wish unfulfilled. ”

  • Sonic State

    On AudioFuse 16Rig

    “The AudioFuse 16Rig is a quality audio interface with a lot of nice touches that take into account how you might want to use and connect this in a studio setup, but with plenty of possibilities to integrate this into a multi-output live setup”

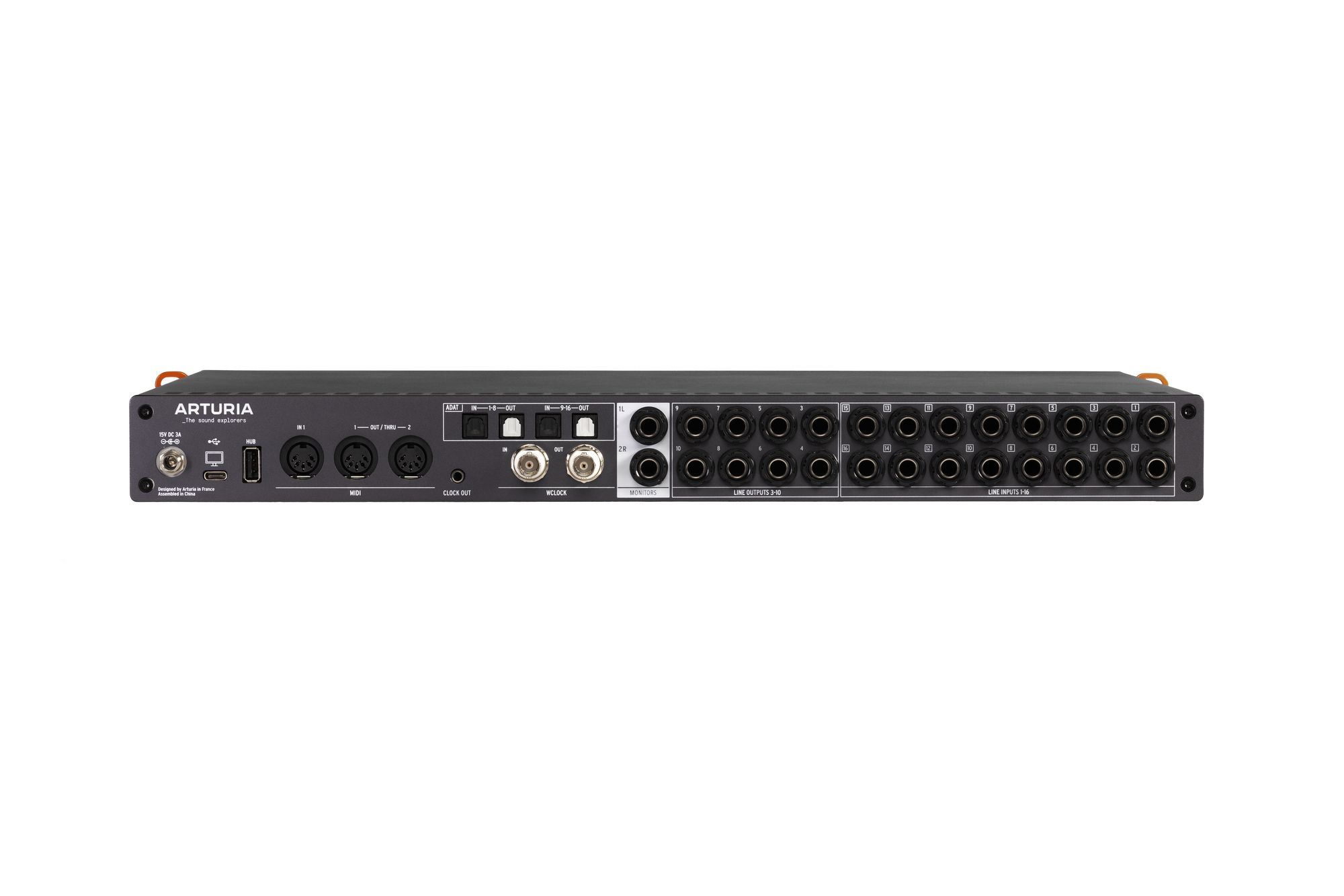

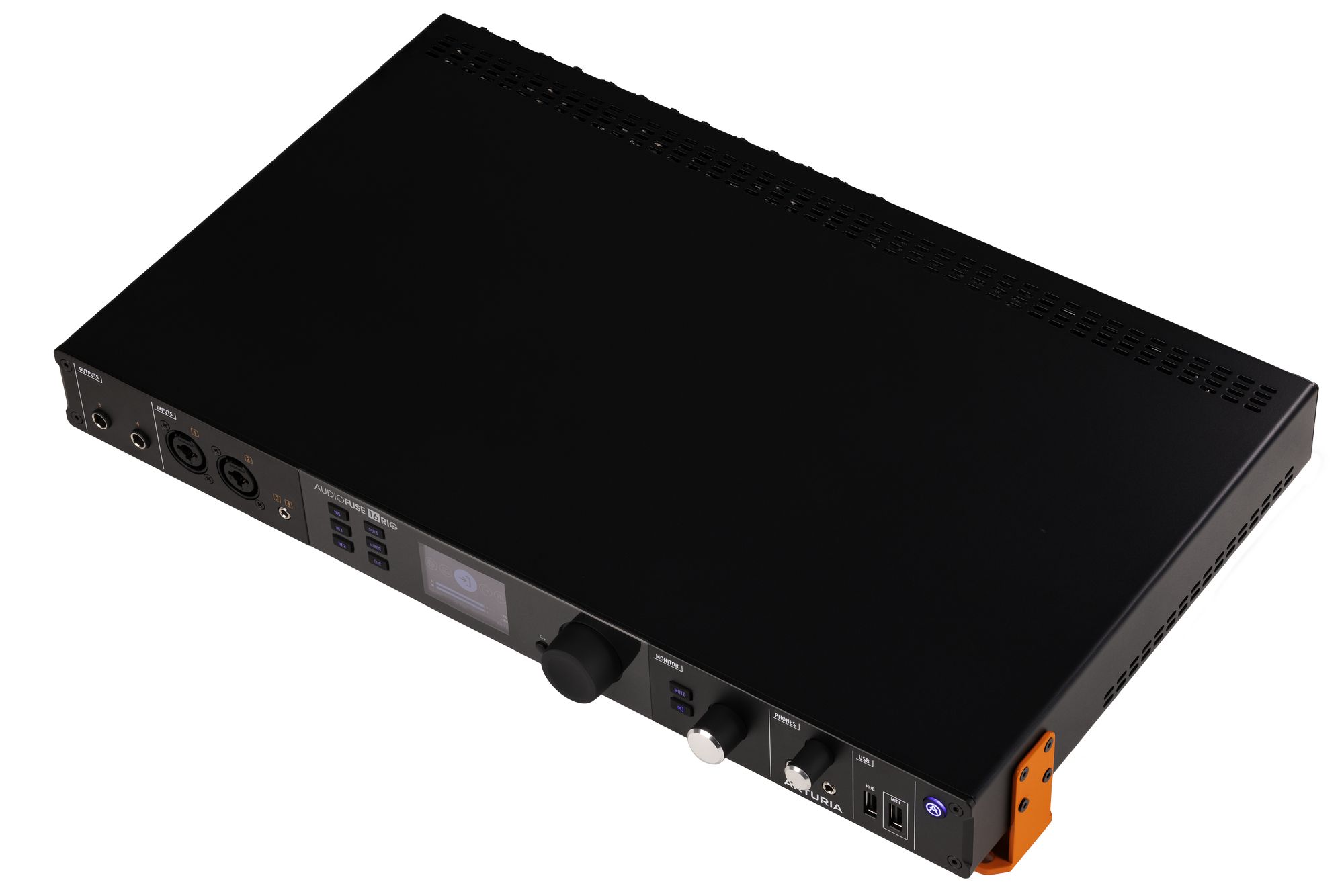

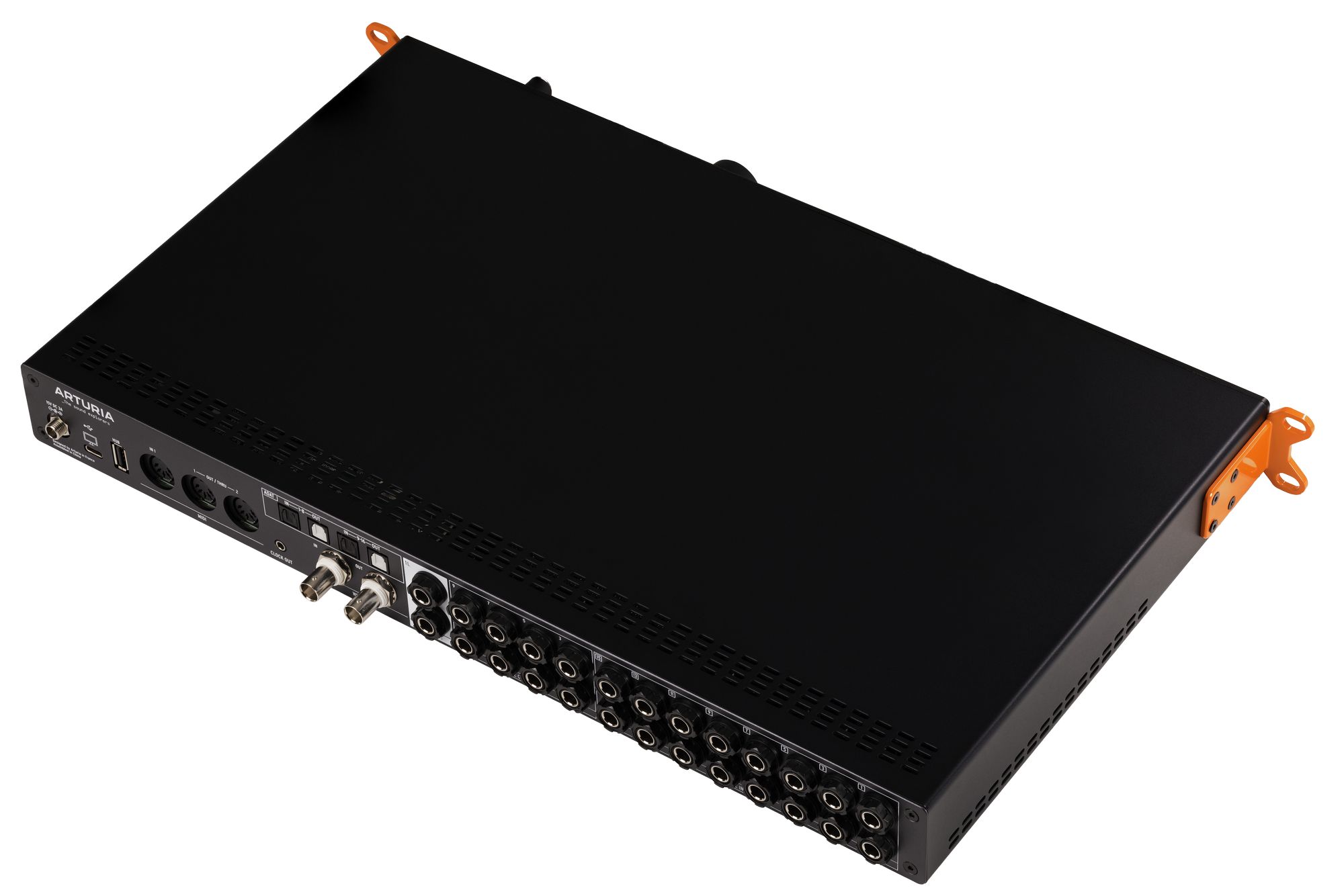

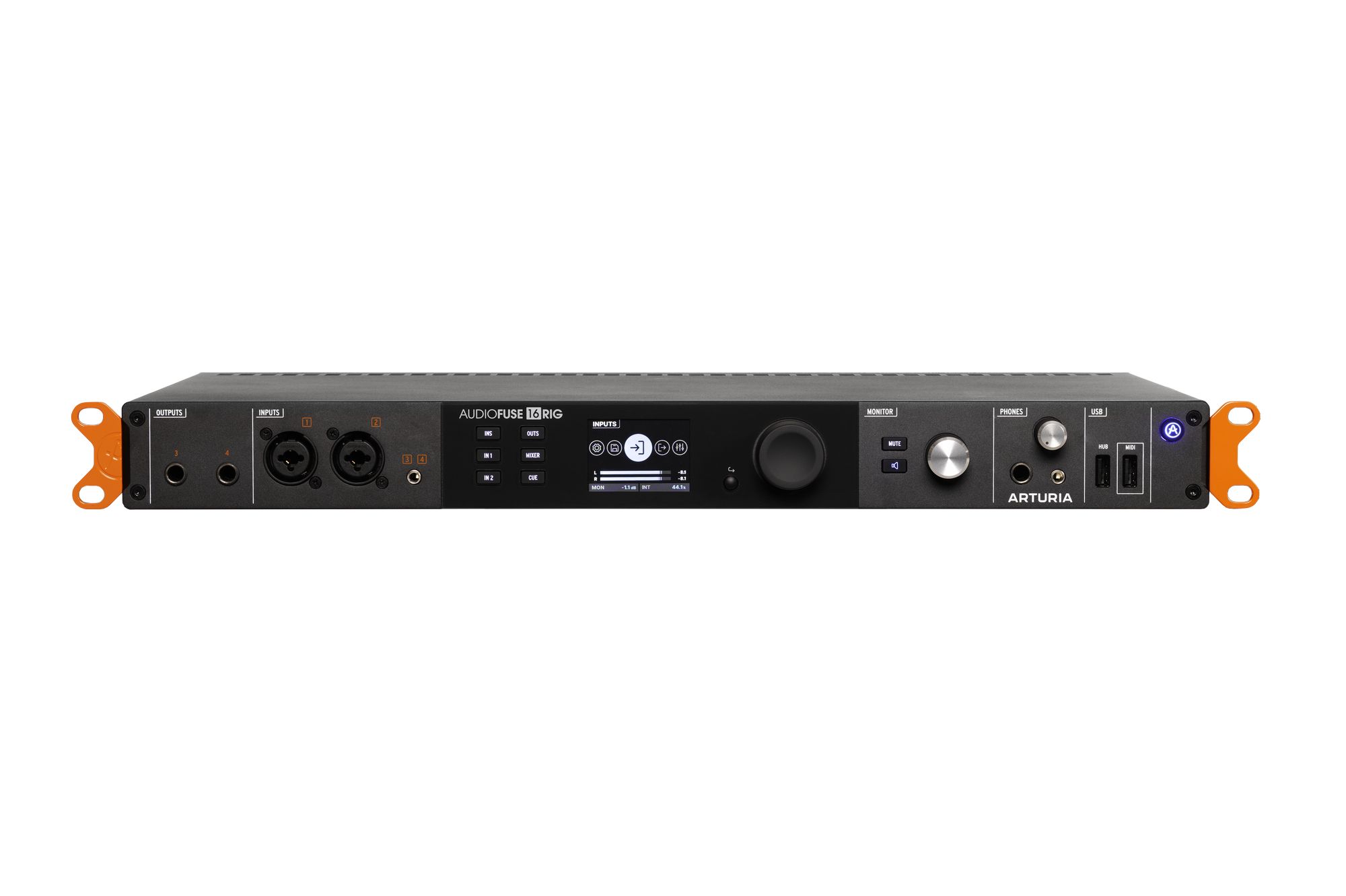

Gallery

Main Features

16 x TRS analog inputs

  • Includes 2 x high-quality digitally-controlled preamps
  • Inputs 3 & 4 also available as 3.5mm stereo input

12 x analog outputs

  • Includes 8 x DC-coupled TRS line outputs
  • Stereo monitor outputs
  • 6.35mm front-panel outputs for reamping, dual-headphones

2 x ADAT in, 2 x ADAT out

  • Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz

Wordclock in & out

1 x MIDI in, 2 x MIDI out/thru

  • 5-pin DIN connectors
  • Route MIDI standalone

Low-latency USB-C connection

  • Class-compliant MIDI
  • 3 x USB hub connections

Two internal standalone mixers

  • No computer connection needed
  • Cue mixer for sub-mixing and added flexibility
  • Main mixer controllable by MIDI

Color display with rotary control & menu buttons

Desktop or 1U rackmount configuration

Includes AudioFuse Control Center

Includes AudioFuse Creative Suite

  • Analog Lab Intro
  • Comp DIODE-609* NEW
  • Pre 1973
  • Pre V76
  • Pre TridA
  • Filter MINI
  • Chorus JUN-6
  • Comp FET-76
  • Delay TAPE-201
  • Rev PLATE-140
  • Phaser BI-TRON

What's in the box

Box content

  • AudioFuse 16Rig unit
  • Power supply
  • 2x USB cable

Instrument dimensions

  • size : 17.3 x 11.6 x 1.7 inches (493 x 294 x 43mm)
