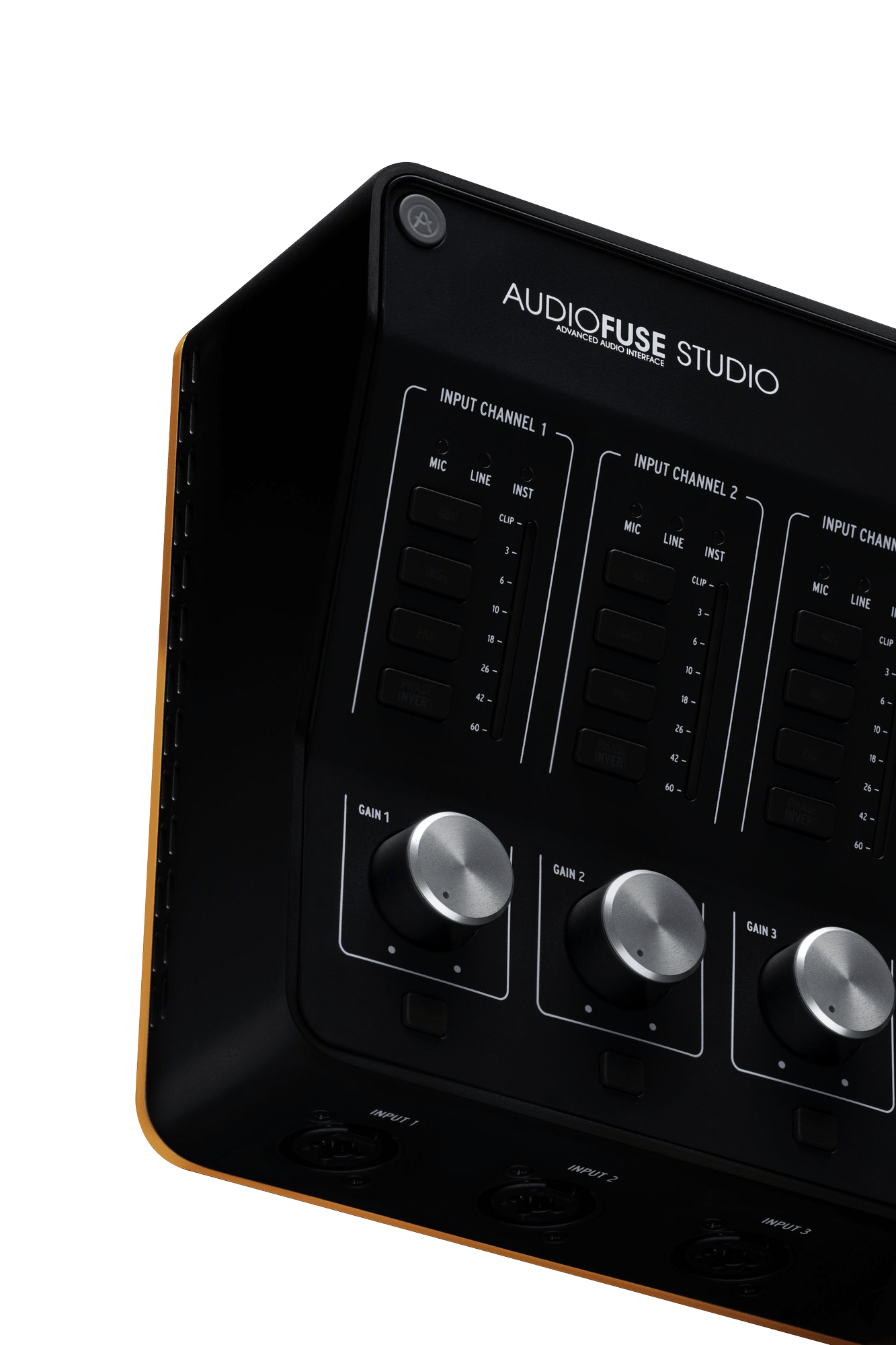

Thank you for AudioFuse Studio!

This page will guide you through the quick steps to get your new soundcard registered and provide you the resources you need to get familiar with this one.

How to get started

How to update
my AudioFuse Studio firmware

Updating your AudioFuse firmware will ensure you to enjoy your new interface at its best.

A firmware update may already be available for your AudioFuse Studio. Please make sure to follow the next steps to get this one applied.

01

Connect your AudioFuse Studio to your computer via the USB connection. Make sure not to use a USB hub.

02

Launch the AudioFuse Control Center.

03

If it is not immediately displayed, select the AudioFuse Studio in the “Device Selection” menu entry in the top-left corner.

04

The firmware entry (just underneath) indicates the current firmware version and, if you are connected to internet, the latest firmware available.

05

Click on this button to launch the update process :

1. Click on the button Upgrade to latest”. The AudioFuse Control Center will automatically download the latest firmware version.

2. After a validation from your part the firmware installation will debut.

1. First download a firmware file right here

2. In the AudioFuse Control Center (AFCC), click on the “Upgrade from File” button

3. Select the firmware file on your computer

4. After a validation from your part the firmware installation will debut

After few seconds, your AudioFuse Studio will automatically reboot to finalize the process.

Installation
of Ableton Live Lite

Updating your AudioFuse firmware will ensure you to enjoy your new interface at its best.

01

Go to your My Arturia account page to find your serial number. Click on the button "My Products" and display the details about your product by clicking on "More info...". The serial number will appear as part of the Additional Licenses.

02

Download Live Lite from here: Ableton.com/live-lite.

03

Launch Ableton Live Lite.

04

Live will guide you through an authorization process and you will be asked for a serial number. Use the one obtained above.

Manuals

The manuals for your product can be found here

Manuals

NameDateSizeVersionDownload

AudioFuse Studio JP Manual

Apr 12, 2021

8.98 MB

1.0.7

AudioFuse Studio FR Manual

Apr 12, 2021

8.54 MB

1.0.7

AudioFuse Studio DE Manual

Apr 9, 2021

8.56 MB

1.0.7

AudioFuse Studio ES Manual

Apr 9, 2021

8.53 MB

1.0.7

AudioFuse Studio EN Manual

Mar 19, 2021

8.47 MB

1.0.7

Need more help ?

Our support team is happy to help you with questions on how to use Arturia instruments. You can contact them from this page :

Ask for help →
